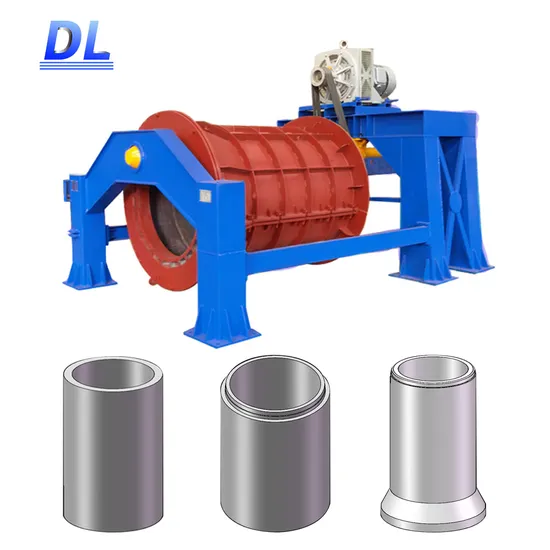

Spinning Roller Horizontal Concrete Culvert Pipe Making Machine

Product Description

Product Description
horizontal concrete pipe machine is an ideal machinery for reinforced concrete and prestressed concrete pipe production. horizontal concrete pipe machine is economical, practical, and easy to operate. More than 80% Chinese pipe making factories use this type concrete pipe making machine. The machine can produce pipes length up to 4 meters, and diameter from 250mm to 2500mm, flat; socket and rabbet joints are available. Hanging roller cement pipe machine is mainly used in municipal engineering, urban and rural construction, drainage and utility large bridges.
Working Principle of China concrete pipe forming machine spun roller type
This machine uses the Roller to support the pipe mould, and produce the roller force to concrete in the mould. When the roller rotate at a high speed, the concrete in the mould will spread in the inner wall of the pipe mould and form a cement pipe with the centrifugal force, and when the mould with the inner concrete pass on the roller, the concrete between the mould and the roller will be compacted solid to form a pipe.
Character of Suspension Roller type Concrete Pipe Machine
(1) Short production Cycle: because of the good effect of the roller to compact the concrete, every pipe just need 3-5 minutes with high speed roller rotation.
(2) This Pipe machine uses the dry cast material, there will no waste cement mud, then it won't pollute the environment.
(3) During the production, the noise is low, it is about 80-90 DB
(4) The Concrete Pipes are with high pressure load and with high production efficiency.
Feature:
1. XG series concrete pipe making machine has different types of XG800x2000,
XG1200x2000, XG1600x2000 and XG2000x2000. They produce concrete pipes for
diameter of 200-2, 000mm and length of 1, 000mm to 5000mm.
2. Roller axis support pipe mould and press concrete inside the pipe mould. When
pipe mould with roller axis rotates in high speed, the concrete becomes solid
pipe
By action of roller press and centrifugal force.
Detailed Photos
Product Parameters

Product diameter	200-2, 400mm
Hang axis diameter	144-216mm
Product length	1000- 3, 000mm
Power	15- 125kW
Hang axis speed	62-618rpm
Machine size	4, 100 x 2, 350 x 1, 850mm
There have different capacity of making machines

Certifications

Packaging & Shipping


Company Profile
Gaotang Dingli Construction Machinery Co., Ltd. was founded in 2010,Dingli is professional in making high frequency vibration concrete pipe machine, vibration manhole machine, vibration box culvert equipment and other precast product molds. With the unique design and the creative designers' working, Dingli has achieved more than 30 patents of innovation, and has also been honored as the R&D center of technological enterprise of Shandong Province, one of the top ten best innovative enterprise in Liaocheng city and won the award of innovative prize of concrete product technology.
Based on the independent R&D design ability, we could work out the most competitive and innovative equipment for our client. With our 30 years experiences in concrete product and equipment manufacturing, our 100 employees have been making durable equipment that used for underground pipeline and sewer system. The high-quality equipment is exported to south-east Asia, Africa, mid-east, more than 30 foreign countries.
We aimed at making humanized and innovative equipment, take the win-win as our principle, adopt the perfectioinism QC system, and develop the best aftersales service to bring the bright new future for each of our client.
Our Advantages
1. with many years of industry experience
With professional design, production, quality management, after-sales service and other teams of continuous improvement equipment, as an outstanding enterprise in the industry, we have been adhering to the learning is the ladder of progress.
2. Production chain
Reasonable production chain, can be more efficient production, greatly shorten the production cycle.
3. Product quality
The use of high-quality raw materials processing and production, strict quality testing, to ensure product life.
After Sales Service
Different kinds of products are available in our company. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective!


Design Drawing
