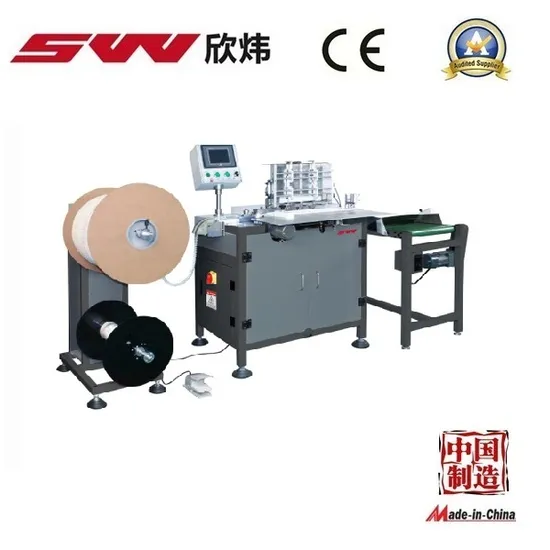

Calendar Notebook Double Wire Binding Machine (SW-520)

Product Description

Calendar notebook Double wire binding machine is widely used for bindingnotebooks, workbooks, calendars, etc.
Except for the loops inserting through the operation by hand, all other processes could be finished by machine
Automatically loops counting, feeding, positioning, closing and binding, bound book delivery on conveyor belt. The machine is free of closing bars, the sizes can be automatically adjusted
It's especially suitable for the books wihich covers xize is bigger than its inner sheets. Controlled by PLC. Easy to
Set and adjust. Can bind up to 20 books per min
Setting are easily done with the intuitive touch screen Up to five step skip binding
Can bind double wire of diameter 1/4 "up to 3/4"
Electrical and pneumatic parts are of prestigious Siemens PLC optional hanger attachment

Wire specification:	1/4"-1"
Max. binding width:	450mm
Max.binding Thickness:	20mm
Power:	220v 1ph 50Hz
Working Speed:	700-1300books/hour
Machine Weight:	210Kgs
Machine Dimension:	800*1400*1200mm
