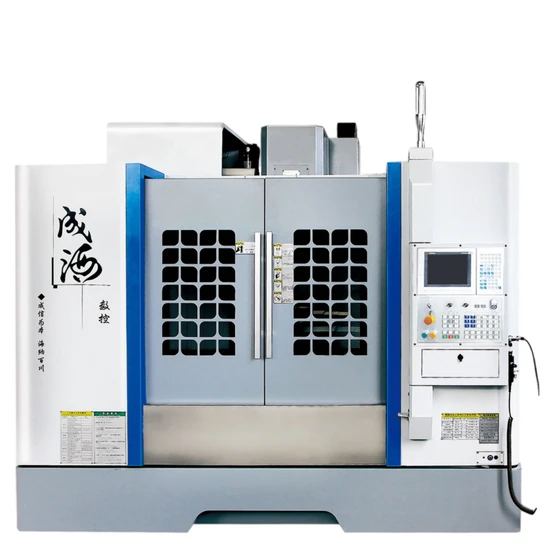

CNC Machine Center High Quality Horizontal CNC Machine Tools for Vmc1160 5 Axis CNC Machine Metal Parts Processing with Fanuc System
| US$1.00-30,500.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
VMC1160
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
CNC System
Knd2000
Tool Quantity
24
Worktable
1200*600mm
Maximun Load of Table
800kg
Automatic Grade
Automatic
Precision
High Precision
Transport Package
Container Shipment
Specification
7300kg, 3400*2480*2960mm
Trademark
chenghai
Origin
China
HS Code
8457101000
Production Capacity
1000-3000 Yearly
Packaging & Delivery
Package Size
340.00cm * 248.00cm * 296.00cm
Package Gross Weight
7300.000kg
Product Description
Product Specifications
| Machine Type | UNIT | VMC1160 |
| Worktable | ||
| Worktable(lengthxwidth) | mm | 1200*600 |
| Maximun Load of table | kg | 800 |
| T-slot(number of slotxslot widthxpitch) | mm | 5-18-100 |
| Triaxial itinerary | ||
| Travel for X/Y/Z axes | mm | 1100*600*600 |
| Distance from spindle nose to table surface | mm | 120-720 |
| Distance from spindle center to column guide surface | mm | 600 |
| Feed system | ||
| CNC System | / | KND2000 |
| Rapid shift of axes of x/y/z | m/min | 36/36/24 |
| Maximun cutting feed speed | mm/min | 1-10000 |
| Automatic tool changing system(CNC milling without) | ||
| Standard tool quantity | 24 | |
| Tool max.dia./Length | mm | φ78/300 |
| Tool exchange mode | / | Air-operated |
| Average tool exchange time | sec | Armless type 7s/Arm type 2.5s |
| Precision | ||
| Positioning accuracy | mm | 0.008 |
| Accuracy of repeated positioning | mm | 0.005 |
| Spindle system | ||
| Spindle speed | r.p.m | 8000 |
| Spindle specifications(mode/installation diameter) | BT40/φ150 | |
| Drive mode of spindle | / | Belt drive |
| Motor power of spindle | kW | 11 |
| Air pressure | ||
| Requirements for air compressing | kg/cm | ≥6 |
| Air pressure fiux | m³/min | ≥0.3 |
| Machine specifications | ||
| Integarated weight | kg | 7300 |
| Overall dimension(length x width x height) | mm | 3400*2480*2960 |
Products Description
General vertical machining center,mainly used in medium-sized parts and molds processing.The workpiece in a fixture may be for the completion of milling,drilling,boring,reaming and other processes of processing,it can be single used and can also be used for multiple operations on parts in a production line Cutting with powerful,high-speed positioning mechanical and electrical integration,automatic chip control and security protection features.
Products Standard Configuration
| KND controller system | Water Tank cooling device | Automatic lubricating device | Outer protective cover |
| Spindle taper hole air blowing device | Handheld air gun | Control electric cabinet | Transformer |
| Electric cabinet heat exchanger | Hand pulse generator working lamp | Working light | Three color warning light |
| RS-232 Standard output interface | LCD | Tools&Tool box | Spindle |
| Screw | Heat exchanger | Linear guide rail | Pneumatic part |
| Lubrication system | Operation Manual |
Opitional Configuration
| Automatic tool changer (Armless type or Arm type) | Spindle oil cooling device | High speed spindle(10000-15000rpm) |
| Spindle center water outlet unit | Chain chip conveyor/Spiral chip conveyor | Disc type oil water separator |
| The 4th axis | Electric cabinet air conditioning |
Sample parts
Certificate
Ball bar roundness accuracy testing Machine cutting testing Spindle dynamic balance detection
Company Profile
Finished workshop
Chenghai Machine adhere to the quality as the center,attach importance to product development and technological innovation.
Cooperation Partner
The Exhibition Show
