800mm-2200mm Conveyor Belt Vulcanizing Press with 2 MPa Rubber Rressure Bag

Product Description

Antai Svp 800mm-2200mm Conveyor Belt Vulcanizing Press with 2 MPa Rubber Rressure Bag Product Description
Conveyor Belt Splicing Jointing Press Vulcanizing Machine Application of rubber belt vulcanizer :

1. Steel Cord Belt Intermediate Rubber is an uncured rubber for hot vulcanized belt splicing.

2. It is designed to use as an inter-core cord rubber replacement material in splicing steel cord conveyor belts or a tie gum in fabric belts.
3. The material is designed to bond to cured intercore rubber and wire cords in all standard grade steel cord conveyor belts, as well as fabric belt cured skim rubber and general bond improvement material for general grade fabric conveyor belts.
The ZLJ sectional has uniform pressure bag and aluminum/steel bolt and high grade aluminum platens and beams with restraining system set as standard. Such belt splicing system designed to be portable and easy to set-up and remove from the site.
We can manufacture to all sizes and pressure up to 200 psi required for different fabric belts and steelcord belts.
Technical Parameters:
* Vulcanizing temperature: 145ºC (adjustable 0~200ºC)
* Temperature-rising time (from normal temp to vulcanizing temp):≤50 mins(around 25~30 mins normally)
* Improved cooling system: using pressure pump for cooling:only 5mins (cooling from 145 to 75 degrees)
* Belt width: from 650mm to 3000mm 200PSI ANTAI alike Uniform Pressure Bag for Conveyor Belt Press
* Degree of the heating platen:22 °/17 °/ 20 ° (rectangle and other degree is optional)
* Waterbag/ air pressure Press for 100PSI, 200PSI etc.
* Surface pressure for textile and steel cord belts, Up to 1.8Mpa.
* 100 p.s.i. (7 kg/cm sq.) units suitable for splicing fabric ply belting
* 200 p.s.i. (14 kg/cm sq.) units suitable for splicing steel cord conveyor belting
* Customization/OEM:Different heating platen size and combination

Main Parts A=Length of platen along belt

B=Width of platen across the belt on the bias

C=Right angle dimension across the belt, plus edge overlap

D=Bias angle

E=Max Splice length

Specifications of ASVP series Belt Joint Vulcanizing Machine 100 PSI(7kg/cm sq.) units suitable for splicing steelcord conveyor belting
Model Number		Max Belt Width(in)		Platen Dimensions						Max Splice Length		Spanner Bars				Qty Bolt/Nut Assy.	Main Component Weights
				A(mm)		B(mm)		C(mm)				QTY	Type	Length			Platen	Bar	Bolt/ Nut Assy.	Total Weight
		in	mm	in	mm	in	mm	in	mm	in	mm			in	mm		kg	kg	kg	kg
ASVP	1930	24	610	19	480	30	760	28	705	13	330	2 sets	EA	42	1065	4	25	24	8	225
ASVP	1937	30	760	19	480	37	940	34	870	13	330	2 sets	EA	49	1245	4	31	28	8	255
ASVP	1943	36	915	19	480	43	1090	40	1015	13	330	2 sets	EA	55	1395	4	36	31	8	281
ASVP	2643	36	915	26	660	43	1090	40	1015	20	510	3 sets	EA	55	1397	6	49	31	8	405
ASVP	2843	36	915	28	710	43	1090	40	1015	22	560	3 sets	EA	55	1397	6	53	31	8	416
ASVP	3343	36	915	33	840	43	1090	40	1015	27	685	4 sets	EA	55	1397	8	62	31	8	522
ASVP	3743	36	915	37	940	43	1090	40	1015	31	785	4 sets	EA	55	1397	8	70	31	8	544
ASVP	1950	42	1065	19	480	50	1270	46	1175	13	330	2 sets	EA	62	1574	4	42	35	8	311
ASVP	2850	42	1065	28	710	50	1270	46	1180	22	560	3 sets	EA	62	1574	6	61	35	8	461
ASVP	3350	42	1065	33	840	50	1270	46	1180	27	685	4 sets	EA	62	1574	8	72	35	8	579
ASVP	4250	42	1065	42	1065	50	1270	46	1180	36	915	5 sets	EA	62	1574	10	92	35	8	722
ASVP	2856	48	1220	28	710	56	1420	52	1320	13	330	2 sets	EA	68	1727	4	47	38	8	336
ASVP	3756	48	1220	37	940	56	1420	52	1320	22	560	3 sets	EA	68	1727	6	69	38	8	499
ASVP	4256	48	1220	42	1065	56	1420	52	1320	31	785	4sets	EA	68	1727	8	91	38	8	655
ASVP	2656	48	1220	26	660	56	1420	52	1320	36	915	5 sets	EA	68	1727	10	103	38	8	783
ASVP	3358	48	1220	33	840	58	1475	54	1370	20	510	3 sets	EA	70	1778	6	66	39	8	498
ASVP	3758	48	1220	37	940	58	1475	54	1370	27	686	4 sets	EA	70	1778	8	84	39	8	643
ASVP	4558	48	1220	45	1140	58	1475	54	1370	31	785	4 sets	EA	70	1778	8	94	39	8	672
ASVP	2858	48	1220	28	710	58	1475	54	1370	39	990	5 sets	EA	70	1778	10	114	39	8	824
ASVP	2862	54	1370	28	840	62	1575	57	1460	22	560	3 sets	EA	74	1879	6	76	42	8	538
ASVP	3365	54	1370	33	915	65	1650	60	1530	27	685	4 sets	EA	77	1955	8	94	43	8	700
ASVP	3665	54	1370	36	1015	65	1650	60	1530	30	760	4 sets	EA	77	1955	8	103	43	8	723
ASVP	4068	55	1395	40	480	68	1725	63	1600	34	865	4 sets	EAX	80	2032	8	119	55	9	870
ASVP	1969	60	1525	19	610	69	1755	64	1625	13	330	2 sets	EA	81	2057	4	57	46	8	392
ASVP	2469	60	1525	24	710	69	1750	64	1625	18	455	3 sets	EA	81	2057	6	73	46	8	549
ASVP	2871	60	1525	28	840	71	1800	66	1675	22	560	3 sets	EAX	83	2108	6	87	57	9	664
ASVP	3371	60	1525	33	915	71	1800	66	1675	27	685	4 sets	EA	83	2108	8	103	47	8	748
ASVP	3671	60	1525	36	1115	71	1800	66	1675	30	760	4 sets	EAX	83	2108	8	112	57	9	866
ASVP	4471	60	1525	44	1065	71	1800	66	1675	38	965	5 sets	EA	83	2108	10	137	47	8	952
ASVP	4273	60	1525	42	1065	73	1850	68	1720	36	915	5 sets	EAX	85	2159	10	134	59	9	1073
ASVP	1984	72	1830	19	480	84	2135	78	1975	13	330	2 sets	EAX	96	2438	4	70	66	9	509

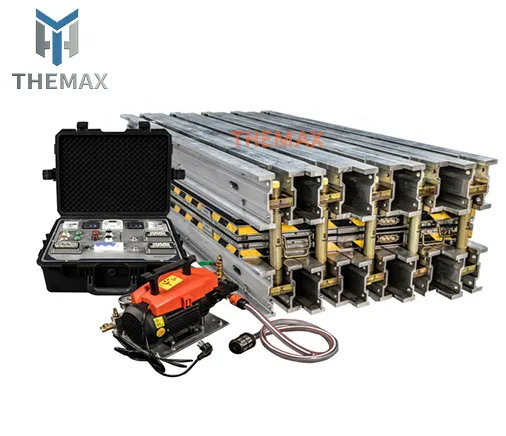

ZLJ conveyor belt vulcanizing machines can be used by one or multiple combinations according to the joint length of the belt.The main configuration of a single vulcanizing machine is as following:

Name	Amount
The whole machine	1 set
Ratchet wrench	2 piece
steel pad	1 set
Clamping device	1 set
Electric control box	1 set
Power cable	1 root
Control cable	2 root
Thermal resistance	2 pieces
QL electric water pump	1 set
SD Hand pressure pump (Optional)	1 set
Pressure pipe	2 root
Water cooling system (Optional)	1 set

The dimension and shape of the machine can be customized by your requirements. ANTAI STYLE design available
Model	Belt width(mm)	Total Power(kw)	Dimensions (L*W*H mm)	Net Weight (kg)	Max weight of single Component after separation(kg)
ZLJ-650*830	650	9.5	1370*830*630	430	45
ZLJ-650*1000		10.8	1370*1000*630	500	66
ZLJ-800*830	800	11.2	1520*830*630	535	70
ZLJ-800*1000		13.5	1520*1000*630	575	79
ZLJ-1000*830	1000	14.1	1720*830*630	595	82
ZLJ-1000*1000		15.7	1720*1000*630	620	95
ZLJ-1600*830	1600	21.5	2320*830*800	1270	120
ZLJ-1600*1000		22.3	2320*1000*800	1460	146
ZLJ-2000*830	2000	27.2	2720*830*950	1760	154
ZLJ-2000*1000		30.0	2720*1000*950	1860	182
