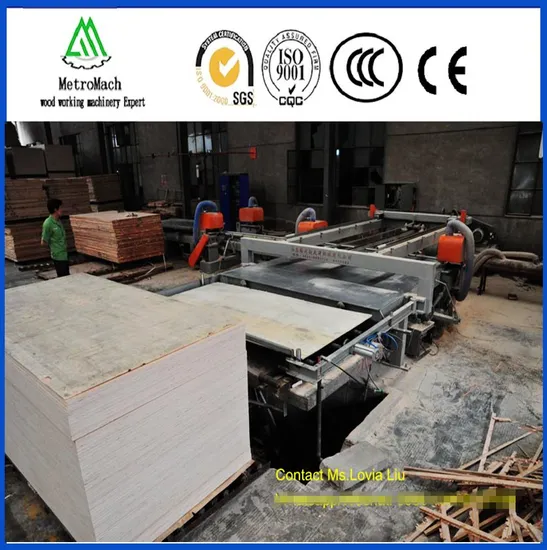

Automatic Double Sides Edge Trimming Saw for 1220X2440mm Plywood

Automatic Double Sides Edge Trimming Saw for 1220X2440mm Plywood

US$10,500.00-13,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
ABC3125
Weight
7tons
Type
Circular Saw
Power Type
Electric
Layout
Horizontal
Controlling Mode
CNC
Precision
High Precision
Certification
CE, ISO
Customized
Customized
Condition
New
Color
Customized
Warranty
12months
After-sales Service
Yes
Transport Package
Standard Export Packing
Specification
4x8ft, 3x6ft
Trademark
METRO
Origin
China
HS Code
8465910000
Production Capacity
800sets/ Year

Product Description

Main Features
1. The main structure is strong with enough rigidity and high stability.
2. High efficiency, one shift working can produce 4000(16mm) sheets.
3. High precision anti-wearing guide rail, diagonal error<0.5mm.
4. All working process is controlled by PLC, cutting and stacking is automatic.
5. It has a device to clear the edge waste away automatically.
6. Labor-saving, 2 workers are needed.
7. Good dust collecting system, it collect all dust of the machine, and dust exhaust in strong force.
8. The Infared ray device in the pre-loader section can give a clear size cutting guidance, help the workers adjust panel position easily for the board feeding.
Technical Specifications
1. Cutting panel size: 3x6ft,4x8ft, 5x5ft etc, customized production is available.
2. Capacity: Take 18mm thick plywood for example, one working shift process 4000pcs.
Model ABC3125-V
Max. cutting thickness 60mm
Diameter of saw blade φ250~315mm
Speed of main saw 6000~7000rpm
Cutting panel size 1220x2440mm
Overall power 43kw
Overall machine size 8500x5500x1120mm
Control method PLC control
Machine weight 6500kgs
Table lifter with stacker Included
Remark:Dust Collector is not included.
Packing&Shipping
1. Machine body packed in plastic film
2. Spare parts and electrical parts packed in plywood boxes.
3. Fixed in container with steel wires.
Our Services
1. Design and produce based upon your production need. Provide full sets of drawings and manuals.
2. One year warranty for the machine. Liftetime after-sales service and maintenance.
3. Professional team for oversea machine installation&debugging.
4. Help train and guide machine operating.
