Wholesale AC Motor Run Pump Capacitor with Sh Polypropylene Film

Wholesale AC Motor Run Pump Capacitor with Sh Polypropylene Film

US$0.15-3.00 200 Pieces (MOQ)

Basic Info.

Model NO.
CBB60
Packaging Type
Through Hole
Capacitance
0.68UF to 150UF
Structure
Fixed Capacitor
Manufacturing Material
Polypropylene
Electrolyte
Film
Usage
AC Single-Phase Motors at 50/60Hz
Tuning
Film Capacitor
Filter
Film Capacitor
Materials of Case
Plastic (PP or ABS), Aluminium (Polishing or Not)
Shape
Cylinder
Color
White, Black, Customizable
Terminal
Double Faston, Single Faston, Wires, Cable
Certifications
CQC, CE & RoHS, TUV & VDE, UL
Loading Port
Ningbo, Shanghai, Yiwu, Guangzhou
Package
50-100 Pieces Per Carton, Based on Capacitors Size
Packing Detail
Individual Box Is Available
Supply Ability
1, 200, 000 Piece/Pieces Per Month
Sampls
for Free (The Freight Shoule Be Paid by Custom)
H.S. Code
8532 2590
Delivery Time
15 - 30 Days (Based on Order Quantity)
Payment Term
T/T, L/C at Sight, Cash, Western Union
Shipment Term
Fob, CNF, CIF
MOQ
200 Pieces Per Type
Transport Package
Export Standard
Specification
IEC60252
Trademark
TOPO / oooneoo
Origin
China
HS Code
85322590
Production Capacity
1, 200, 000 Piece/Pieces Per Month

Product Description

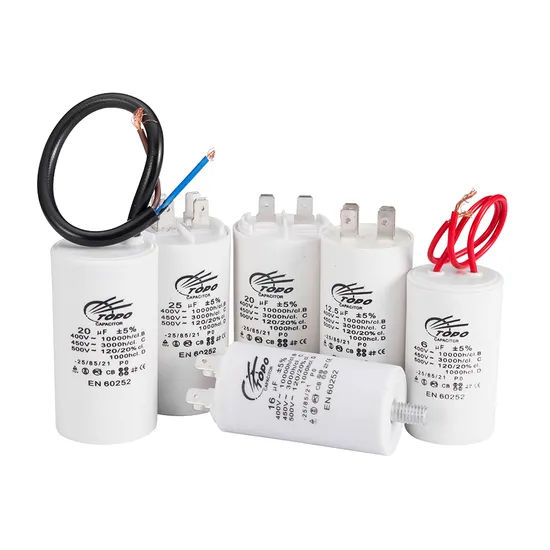

CBB60 Series Construction Dielectric: polypropylene film. Plastic & Round can. Dry type. Features Self-heating properties. Low dissipation factor. P0 safety class to IEC 60252-1. High insulation resistance. Typical applications For general sine wave applications, mainly as motor run capacitor. Mounting parts (optional) Threaded stud at bottom of can (M8, max.torque=5 Nm). Fast fixation for mounting into a hole of Φ8 mm.
Technical data and specifications
Reference standards IEC 60252-1
Safety class according IEC 60252-1 P0
Life expectancy to IEC 60252-1 3,000 h( C)~10,000 h(B)
Rated capacitance CR 1 µF~120 µF
Tolerance ±5%
Rated voltage VR 110VAC~630VAC
Rated frequency FR 50/60Hz
Maximum ratings
Maximum permissible votage Vmax 1.1*VR (VR=Rated voltage)
Maximum permissible current Imax 1.3*IR (IR=Rated current)
Test data
AC test voltage terminal to terminal VTT 2*VR, 2s (routine test)
2*VR, 60s (type test)
Dissipation factor tan δ ≤0.002 (50Hz)
Climatic data
Climatic category 25/085/21 to IEC 60068-1
Lower category Tmin -25ºC
Upper category Tmax +85ºC
Damp heat test Ttest 21 days
Dimensions (mm)
(uF/MFD) 250-300Vac 450-500Vac
Without M8 Stud M8 Stud Without M8 Stud M8 Stud
Φ H Φ H Φ H Φ H
1 30 50 30 57 30 50 30 57
1.5 30 50 30 57 30 50 30 57
2 30 50 30 57 30 50 30 57
2.5 30 50 30 57 30 50 30 57
3 30 50 30 57 30 50 30 57
3.5 30 50 30 57 30 50 30 57
5 30 50 30 57 30 60 35 65
6 30 50 30 57 30 60 35 65
8 30 50 30 57 35 60 35 65
10 30 60 35 65 35 60 40 70
12 30 60 35 65 35 70 40 70
12.5 30 60 35 65 35 70 40 70
14 35 60 35 65 40 70 40 70
15 35 60 35 65 40 70 40 95
16 35 60 35 65 40 70 40 95
18 35 60 35 65 40 70 40 95
20 35 70 40 70 40 93 40 95
22 35 70 40 70 40 93 40 95
24 35 70 40 70 40 93 40 95
25 35 70 40 70 40 93 40 95
28 40 70 40 70 45 93 50 106
30 40 70 40 95 45 93 50 106
31.5 40 70 40 95 45 93 50 106
35 40 93 40 95 45 93 50 106
40 40 93 40 95 50 92 50 106
45 45 93 40 95 50 92 50 106
50 45 93 50 106 50 100 50 116
55 45 93 50 106 50 100 50 116
60 45 93 50 106 50 120 50 116
65 50 92 50 106 50 120 50 116
70 50 92 50 106 55 120 50 116
75 50 92 50 106 55 120
80 50 92 50 106 55 120
85 50 100 50 106 60 120
90 50 100 50 106 60 120
95 50 120 50 116 60 120
100 50 120 50 116 60 120
110 50 120 50 116
120 50 120
Note: Can be manufactured according to customer's request.

Capacitors Details:
High-Return Solutions Specifically to your satisfaction.
Most of our customers have been doing business with us for more than a decade, with full trust in our capabilities and reliability. We take pride in solving different challenges to customers in a productive way. Maybe you need a special collection, a distinct packing, an urgent delivery or any other supports, our team is here ready to offer you the integrated solutions and save you more.

OEM and ODM Contract manufacturing and housing molding for your brand.
Your brand and personal preferences could be custom on the products and packings. As a comprehensive capacitor manufactuer, Topo possesses the extensive custom design capabilities to meet your specific requirements, which help you to extend your brand's advantages.

ECO Friendly and Full Material Speaking of quality, green material is the very start. Topo only utilizes the materials friendly to the environment with a social responsibility perspective. Besides, great quality films make excellent capacitors. We never cut corners on materials, but apply full materials for each parts.

Free Sample for Testing An adequate amount of free samples could be offered for your testing of the important electrical parameters. From these aspects those prove that our products are of high quality and can stand the tests.
Rest assured and get your samples right away!

FAQs Topo knows about your general concerns. Check the Q&A that will help you save time and worries in the first place. If your question is not listed, please contact us and we are happy to help.
Can the Topo capacitors be used in the AC and DC circuits?
Generally, our capacitors could apply with both circuits of AC and DC. Yet most of our products are for AC circuit purpose.
Are the Topo capacitors compliance products of EU CE and RoHS?
Yes. All of our capacitors comply with the CE, VDE, and RoHS standards.
Can I print my brand on the capacitor?
Absolutely. Topo has the capability of OEM and ODM. You are free to choose custom services or our regular high-standard capacitors.
How long does a quotation take?
In most cases, your enquiry will be answered within 24 hours. Rest assured that your enquiry will be taken seriously.
Can I get samples?
Sure. We offer adequate samples for your testing free of charge. However, the freight is not covered.
