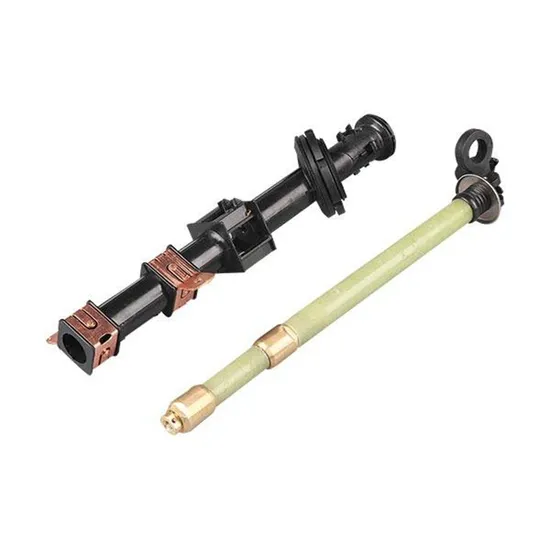

15kv Bay-O-Net Fuse Holder for Transformer

Product Description

Hot Sales
Product Detail:
Bay-o-net Assembly is the brief element of oil-transformer, to protect the equipment when over-current. When install the fuse wire in it, the Bay-o-net will provide the safe, highly efficient protection, according to the current, oil temperature.
The Bay-o-net Assembly is suitable for current sensing fuse wire, dual sensing fuse wire, dual element fuse wire, and ELSP current-limiting backup fuse,etc.
It is suitable for high-voltage power system with alternating current of 50HZ, standard voltage of 15.5kv, current rating of 140A. It must be combining with Magn X Interrupter of ELSP Current-limiting Backup Fuse to protect transformer from overload and short circuit.
Electrical Rating:

Description			Parameters
Impulse withstand voltage			150kV
AC withstand voltage, 1min			50kV
Voltage	Maximum Single-Phase Interrupting Rating	Voltage		Thermal circuit
8.3kV	3000A/3500A	10.0kV		160A
15.5kV	2500A/2500A	15.5kV		150A
23kV	1000A/1000A	26.7kV		80A
