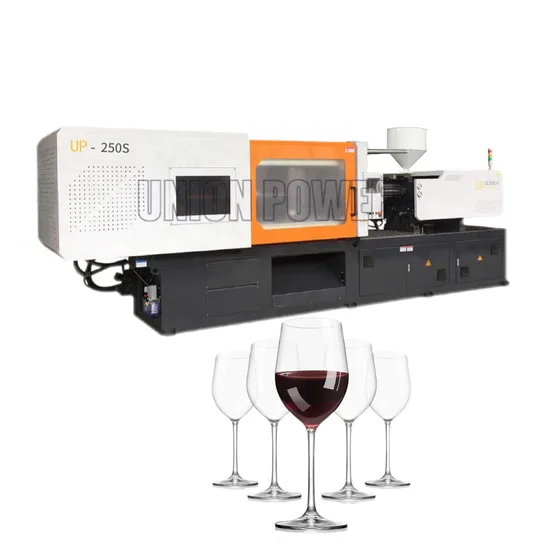

Unionpower Injection Molding Machine for Goblet/ Cocktail Glass/PC Red Wine Glass
| US$25,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
UP-250
Type
Tube Head Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Machine Weight
7.1t
Heating Power
14.2kw
Tank Volume
380L
System Pressure
16MPa
Transport Package
Film Packing
Specification
6.0*1.6*2.2
Trademark
UP
Origin
China
HS Code
8474809090
Production Capacity
500sets Per Year
Product Description
OverviewProduct Parameters
| Technical Parameters | Model UP-250T | ||
| Injection Unit | A | B | C |
| Screw diameter (mm) | 50 | 55 | 60 |
| Shot Volume (cm3) | 481 | 582 | 692 |
| Injection weight (g) | 433 | 523 | 623 |
| injection pressure (Mpa) | 195 | 161 | 135 |
| Screw speed (rmp) | 200 | ||
| Clamping Unit | |||
| Clamping force (KN) | 2500 | ||
| Open stroke (mm) | 500 | ||
| Max Mold height (mm) | 580 | ||
| Min Mold height (mm) | 220 | ||
| Space between tie bars(mm) | 580*520 | ||
| Ejector force (KN) | 100 | ||
| Ejector stroke (mm) | 150 | ||
| Others | |||
| Pump pressure (Mpa) | 16 | ||
| Motor/driving power (KW) | 27.8 | ||
| Heating power (KW) | 14.2 | ||
| Machine dimension (M) | 6.0*1.6*2.2 | ||
| Machine weight (T) | 7.1 | ||
| Oiltank cubage (L) | 380 | ||
Machine details
Why choose UP machine?
Packaging & Shipping
FAQ
