Tvk720 Xk7120A Economic CNC Vertical Milling Machine 3 Axis Vmc Semi Protection

Product Description

Product Description

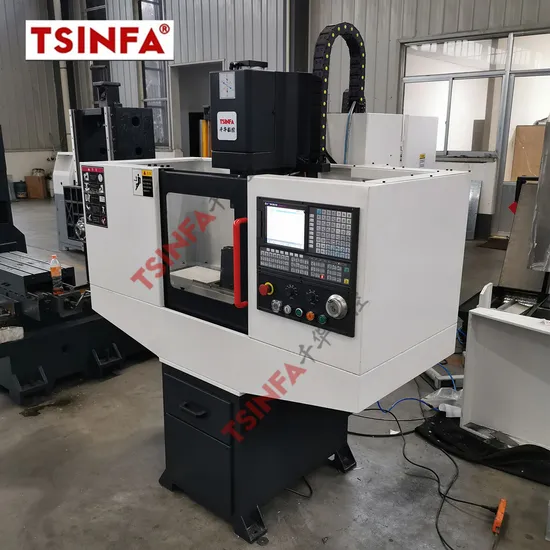

TVK720 CNC VERTICAL MILLING MACHINE
VK720 CNC Milling machine is an economical CNC machine tool that integrates milling, drilling and tapping functions. X, Y, Z three-axis servo, semi-closed, point control vertical CNC drilling and milling machine.
The structure and shape optimization design of TVK720 CNC Milling machine series is compact, reasonable and rigid.
It can realize the processing of complex parts such as various discs, plates, shells, cams, molds, etc.
It can complete various processes such as drilling, milling, tapping, etc.
It is suitable for the production of batch products and can meet the requirements of small and medium-sized workpieces. Processing of drilling, attacking and milling processes.
Main Feature
(1). Straight line and arc cutting: It can finish the straight line of any angle, the fine milling of the arc, and the multi-point drilling and tapping.
(2). Clearance-free transmission: With the ball screw drive with preload, the speed and accuracy are greatly improved.
(3). Protection is applicable to the protection system of processing and teaching. The electronic timing is strong lubrication to prevent the oil-free strain on the track surface.
Main Feature
(4). High reliability: The machine body has advanced casting technology, adopts aging treatment process, and the casting markings meet the national standard.
(5). CNC function: standard configuration provides a wealth of functions, high-speed and high-precision four-axis motion control, 8" color widescreen LCD, and equipped with soft function keys, the interface is intuitive and fast, the new design engineering plastic panel is beautiful and generous, High strength, good protection, high integration of the whole machine, strong product reliability
Product Parameters

Specification	Unit	TVK720	TVK724	TVK726	TVK736
Table size	mm	600*200	800*240	800*260	1250*360
Max. table load	kg	100	300	350	400
X/Y/Z table travel	mm	300*180*270	450*280*450	500*300*450	900*360*460
Numbers, width	mm	3*12	3*14	3*14	3*18
Spindle nose to table surface	mm	45-315	100-500	100-500	130-590
Spindle center to Column surface	mm	255	330	350	460
Spindle taper		R8	BT30	BT40	BT40
Spindle speed	r.p.m	3000	6000	6000 (optional:8000)	6000
Main motor	kw	1.1	3.7	3.7	5.5
Table rapid feed speed	m/min	3*3*3	6*6*6	12*12*18	10*10*6
Cutting feed speed	mm	3000	5000	5000	6000
Three axis servo motor torque	NM	4/4/6	6/6/10	6/6/10	7/7/10
Positioning accuracy	mm	±0.02	±0.015	±0.01	±0.01
Repeat position accuracy	mm	±0.01	±0.01	±0.008	±0.008
Net weight	kg	485	1200	1900	2800
Overall dimension(L×W×H)	mm	1400*1000*1800	1800*1650*2200	2000*1800*2250	2200*1900*2350

Specification	Unit	VMC 640	VMC 650
Table size	mm	800*320	800*400
Max. table load	kg	350	400
X/Y/Z table travel	mm	600*400*450	650*400*500
Numbers,width	mm	3*14	3*16
Spindle nose to table surface	mm	130-570	130-600
Spindle center to Column surface	mm	400	470
Spindle taper		BT40	BT40
Spindle speed	r.p.m	6000 (optional:8000)	8000
Main motor	kw	3.7	5.5
Table rapid feed speed	m/min	18/18/18	24/24/20
Cutting feed speed	mm	10000	10000
Three axis servo motor torque	NM	6/6/10	6/6/10
Positioning accuracy	mm	±0.006	±0.006
Repeat position accuracy	mm	±0.005	±0.005
Net weight	kg	2500	3000
Overall dimension(L×W×H)	mm	2200*1900*2500	2200*1900*2500
