Basic Info.
Automatic Grade
Automatic
Machine Type
Chocolate Depositing
Product Name
Chocolate Chips
Name
Chocolate Chip Cookies Machine
Transport Package
Wooden Case
Specification
11800*750*1500
Packaging & Delivery
Package Size
2400.00cm * 170.00cm * 143.00cm
Package Gross Weight
8000.000kg
Product Description
Product Overview

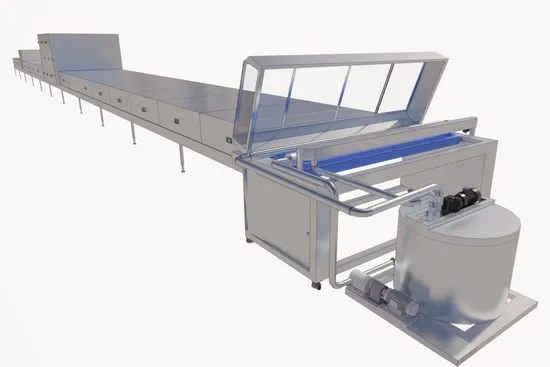

Roller Type Chocolate Chips Drops Process Making Machine
Roller Type Chocolate Chips Drops Process Making Machine
NJ Machinery Rotary Chocolate Chips Depositor allows the depositing of chocolate and chocolate compound drops and chips in a variety of shapes and weights, ranging from 0.1 to 5 grams.
These types of products are ideal for industrial supply and subsequent melting, for decorating and for use in other products, especially cookies and ice creams.
FEATURES AT A GLANCE
High output
Easy Operate and Cleaning
No Piston Leakage Problem
600-1500mm width available
Optional Air Chiller Above Belt Design
Vibration Table for big drops
0.036-5g chips/drop available
PLC Control
Moveable Depositor
Multifunctional Cooling Tunnel Chunks/sticks/coins/drops/chips availabble
PRODUCT SPECIFICATIONS
Model | Belt Width(mm) | Speed(m/min) | Tunnel Temp.(ÂșC) | Total Power(KW) | Weight(KG) | Oversize(mm) |
CD600 | 600 | 0-10 | 0-15 | 19 | 2500 | 20000*950*1300 |
CD800 | 800 | 0-10 | 0-15 | 22 | 2800 | 24000*1150*1300 |
CD1000 | 1000 | 0-10 | 0-15 | 26 | 3500 | 30000*1350*1300 |
CD1200 | 1200 | 0-10 | 0-15 | 31 | 4800 | 35000*1550*2010 |
CD1500 | 1500 | 0-10 | 0-15 | 40 | 5800 | 40000*1850*2010 |
Successful Project
Depositing line Projects in Client's factory
NJ's chocolate machines are mainly sold to Europe, America and Australia, never receive any quality problems.
