High Speed Perforation Roll Towel Paper Rewinding Machine Products

High Speed Perforation Roll Towel Paper Rewinding Machine Products

US$21,100.00 1 set (MOQ)

Basic Info.

Model NO.
CIL-SP-B
Certification
CE, CE, BV SGS
Condition
New, New
Control
Automatic, PLC Control Production
Embossing Type
Full-Embossing
Embossing Roller
Steel Roller
Toilet Paper Type
With Core
Function
Rewinder
Paper Thickness
Thin Paper
Automation
Automatic
Customized
Customized
Type
Toilet Paper Machine
Sheet Former Type
Toilet Paper Machine
After-Sales Service
Engineers Available to Service Machinery Overseas
Function of Machine
Automatic Stop When Raw Material Broken
Color
Blue
Choose of Machine
Can Design Machine for Customer
Embossing Design
DOT-by-DOT Type Embossing Unit
Function One
It Has Perforated Unit
Function Two
Pneumatic Jack to Load The Raw Material
Function Three
Automatic Load and Change The Core
Function Four
Each Raw Material Unreel Separately
Embossing Device
Can Add Two Sets Embossing Units
Transport Package
in Standard Export Packing Wooden Case
Specification
6.1*2.7*1.8
Trademark
Xinda machinery
Origin
Fujian Province, China
HS Code
8441809000
Production Capacity
200 Sets/Year

Product Description

Product Description

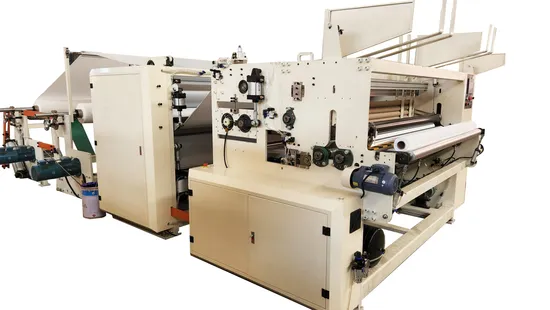

High Speed Perforation Roll Towel Paper Rewinding Machine Products this equipment is to perforate and cut the raw paper into various sizes according to the requested.
The finished product is neat, in good order and with equality tension.
It has the feature of compact structure, easy and stable operation, less electricity consumption and covers a small area of 8.4 m². The highest production speed is 120-160m/min.
This equipment is adjustable to meet the requested finished product. This model is the ideal equipment for paper making factory and paper processing factory. This equipment can process raw paper of 1.75m(75B type) in width. There are two types of this model:
A) is ordinary type, it used one embossed unit for 2 ply paper,
B) other is dot-by-dot type, it used embossed units respectally for each one.
This machine is consist of stand of raw material, paper conveying unit, embossing unit, perforating unit, rolling unit,
electricity control and cutting system.
The production process is : unreeling -→ embossing and gluing lamination-→perforating-→furl-→slitting
Diameter of raw paper 700mm-1200mm
Speed 180-240m/min
Max width of raw paper 1200MM
Overall size(mm) 6200X2750X1800 (LxWxH)
Power 380V ,50/60HZ
Thickness of raw paper 14g/m2-20g/ m2 or 38g/m2
Weight About 3.2T
Products Show

Our Company
Our Certifications
We Care: 1. Machine Quality
Machine Quality Is Good Or Not, Which Is Not Only Affect The Finished Product Directly, But Also Affect Your Output And Sale.
We, Xinda Machinery, Always Focus On Quality And Are Specialized In This Field For 20 More Years. All Our Machines Are Passed CE Certificates. Choose Xinda Machines, They Can Reduce Your Production Problems.
2. Your Cost
Facial Tissue Paper Is A Product Of Large Consumption And Low Value, But Investing Machines For Making Tissue Paper Is High. To Take Care Of Your Budget And Cost, Xinda Machinery Recommends Different Series Machine With Different Price Range For Different Markets. Here Will Have What You Want. Your Customized Order Is Warmly Welcomed. We Will Do Best To Meet Your Needs And Price, Of Course, Is Reasonable.
3. Our Service
1). After The Machine Arrived At Customer's Plant, If Customer Requests, We Send Our Engineer To Customer's Factory To Install And Test Machine, And Offer Trainings To Customer's Technician About 5~15 Days.
2). Lifelong Consult On Quality And Operation Problems.
3). 12 Months Under Normal Use After Machine Arrived At Customer's Plant.
4). Delivery On Time And Loading Machine Well Before Shipping. FAQ
Q: Are you trading company or manufacturer ?A: We are factory.
Q: How long is your delivery time?A: Generally it is 30 days if the goods are in stock. or it is 60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.If you have another question, pls feel free to contact us as below:
