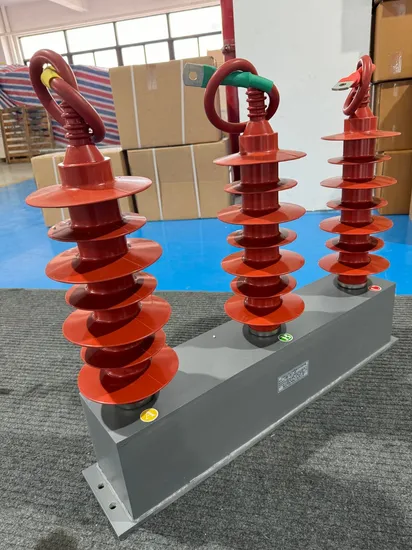

35kv Arrester for Overvoltage Protector with Indoor High Voltage Switchgear
| US$450.00-650.00 | 3 Pieces (MOQ) |
Basic Info.
Model NO.
TBP-35
Installation
Parallel Arrester
Application
Power Plants
Size
Large
Operation Voltage
High Voltage
Shape
Gyro Type
Material
ZnO
Certification
ROHS, ISO9001, CCC
Brand
Qiupu
Color
Red
Rated Voltage
35kv
Poles
3
Weight
18kgs
Transport Package
Carton
Specification
35kV
Trademark
qiupu
Origin
Cn
HS Code
8535400000
Production Capacity
500000PCS/Year
Packaging & Delivery
Package Size
90.00cm * 90.00cm * 35.00cm
Package Gross Weight
18.000kg
Product Description
The difference between lightning arrester and lightning rod is that lightning arrester is a part, a kind of equipment, and has its own function. The lightning rod is an integral part of the system, which is made of round steel, and the connecting wire and grounding wire together form a system to perform lightning avoidance function. The concepts are as follows:The lightning arrester is an electrical appliance used to protect the electrical equipment from high transient overvoltage and to limit the duration of continuous flow. The term includes any external clearance necessary for the normal functioning of the appliance at run time, whether or not it is a component of the whole.
The lightning rod is to install a metal rod at the top of a tall building, to connect the metal rod with a metal plate buried in the ground, and to use the tip discharge of the metal rod and the conductivity of the metal, so that the electricity carried by the cloud is directly neutralized by electricity from large areas, thus protecting the building from lightning strikes.
| Item | Technical data | ||||||||||||
| Rated voltage (KV) | 3.6 | 7.2 | 12 | 24 | 40.5 | ||||||||
| Rated frequency(Hz) | 50 | ||||||||||||
| Insulator(capacity) | insulating | Frequency withstand voltage 5 min (KV) | 25 | 32 | 42 | 68 | 100 | ||||||
| Frequency withstand voltage 1 min (V) | 2000 | ||||||||||||
| Lighting impulse withstand voltage (KV) | 40 | 60 | 75 | 125 | 185 | ||||||||
| Local discharge (pc) | ≤10 | ||||||||||||
| Dispute bend (N) | ≥1000 | ||||||||||||
