Double Layer 2 Ply Sos Paper Bag Machine

Product Description

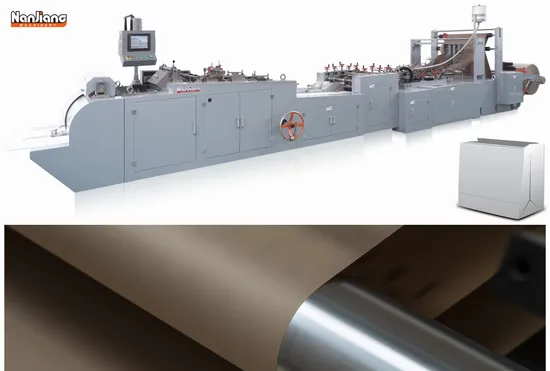

2-Ply Paper Bag Machine (Double Layers)
Double Layers (2ply) Paper Bag Machine
It's a 2-layer Kraft paper sack-making machine
It's a eco-friendly products.
It's suitable for making sacks with Kraft paper of 70g-80G/M2 with roll paper.
It can complete the steps of automatically paper-taking, side-gluing, tube-forming, cutting, outputting and so on.

Technical Parameter

Machine Model	HD-330	HD-550
Paper Roll Width	410-990mm	570-1350mm
Paper thickness	60-150 gsm (70g+80g if double layer)	80-150 gsm (70g+80g if double layer)
Paper Bag Width	100-330 mm	190-550 mm
Paper Tube Length	270-600 mm	330-850 mm
Bag Bottom Width	70-150 mm	80-250 mm
Speed	50-130Bags/min.	50-100Bags/min.
Max. Roll material diameter	¢1200 mm	¢1200 mm
Material Core Diameter	¢76mm(3″)	¢76mm(3″)
Total Power	20KW	25KW
Machine Weight	10000KG	14000KG
Machine Dimension (L*W*H)	15000x2100x2000mm	17000x2300x2500 mm

Packaging & Shipping
Moisture-proof and shock-proof packaging + Steel frame + Container
The machine is firmly fixed on the bottom of steel frame.Comparing with wooden case packing,this kind of packing way can greatly protect machine from deformation.
Our Services
1 After-sales Service Provided:
Engineers available to service machinery overseas

2 Warranty:
Guarantee for one years; Lifelong maintenance
Exhibition
Certificate
FAQ
Q: Are you manufacturer or trading company?
A: We are the manufacturer and have our own workers and factories.

Q: Where is your factory located? May I have a visit?
A: First of all,warmly welcome!
We have two factories.One is located in Wuxi city, Jiangsu province,another is
located in XuYi county,Huaian city.Our Wuxi factory is very close to Shanghai city.

Q: Do you have machines in stock to sell?
A: No, we produce according to customers' requirements.

Q: How is the quality of your machine?
A: We are in this industry for about 20 years and regard quality as the life of the
enterprise.We choose the world famous manufacturers as our suppliers.And
besides,we have our own quality inspector.Machine parts are checked one by one
according to the drawings! Good quality and good after-sales help us obtain good
reputation in the international market! We have a technical team of seven person and
at the same time cooperate with other Research Institutes.
We are committed to providing customers with the best packaging machine.

Q: What information should I let you know if I want to get a quotation?
A: First, Paper raw material: Reel paper 70+80gsm.
Second, sizes of the paper bag, thickness of paper.
Send sample bag picture if available.
Then we will recommend the right machine to you!

Q: Do you have related machine working VIDEO?
A: Yes,contact me please!
