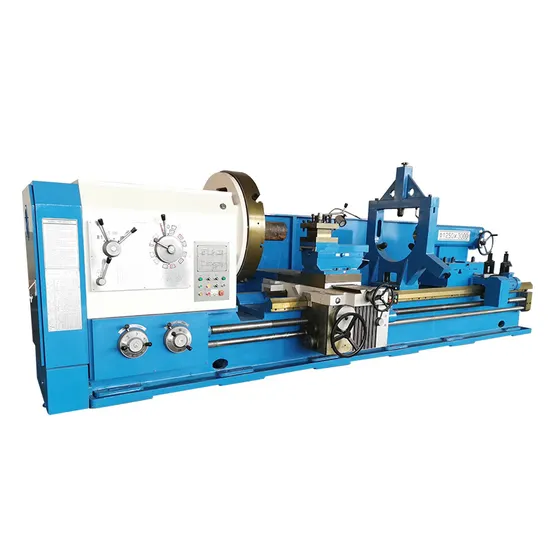

CW61125Q heavy horizontal lathe machine for metal cutting
Basic Info.
Model NO.
CW61125Q
Type
Horizontal Lathe
Processing Accessory
Steel Workpiece
Guide Rail
Horizontal Guide Rail
Tool Holder
4-Station Toolpost
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Spindle Bore
105mm
Max. Swing Over Bed
1250mm
Distance Between Centers
850-11850mm
Machine
Lathe
Voltage
380V
Clour
Customer Appoint
Package Style
Fumigated Poly-Wood Case
Payment
T/T, Paypal, LC, West Union
Transport Package
Fumigated Poly-Wood Case
Specification
CE, SGS
Trademark
WMTCNC
Origin
Chizhou, Anhui
HS Code
8458190000
Production Capacity
20 Sets Per Month
Product Description
Main Features:
This heavy duty horizontal face lathe series include: CW6163B, CW6180B, CW6280B, CW6110B. This lathe is a special purpose heavy duty horizontal face lathe and it is suitable for turning the internal/external cylindrical surface, conical surface, end face and so on with large-diameter, medium length for all kinds of workpieces.
Main specification:
| Specification | CW61125Q CW62125Q |
| Max. swing over bed | 1250mm |
| Bed width | 600mm |
| Max. workpiece length | 1500mm/2000mm/3000mm/4000mm/5000mm /6000mm, etc |
| Max. swing over toolpost | 920mm |
| Max. loading weight | 2.5T |
| Swing in gap/width | 1450mm/310mm |
| Spindle bore | 105mm |
| Spindle front taper | 120mm MT6 |
| Spindle speed steps and range | 18 kinds 7.5~1000 r/min |
| Cross feed steps and range | 64 kinds 0.05~24.3 mm/r |
| Range 1:1 | 0.1~1.52 |
| Range 16:1 | 1.6~24.3 |
| Change gears micro feed range | 0.05~0.912 mm/r |
| Ratio of longitudinal feed to cross | 1/2 |
| Gap rapid speed | 4000 mm/min |
| Leadscrew pitch | 12(metric) 1/2 (inch) |
| Metric thread feed range | 50 kinds 1-240 mm(other type thread 14kinds) |
| Inch thread feed range | 26 kinds 14-1 TPI |
| Module thread feed range | 53 kinds 0.5-120 mm |
| Pitch thread feed range | 24 kinds 28-1 DP |
| Lower toolpost travel | 500mm |
| Upper toolpost travel | 200mm |
| Tailstock travel | 250mm |
| Tailstock taper | MT6 |
| Main motor | 11kw |
| Carriage rapid motor | 1.1kw |
| Coolant pump motor | 90w |
