High Torque Electric Stepper Magnetic Micro Brushless Servo Stepper/Stepping Car Conversion Kit Outboard Boat Motor with ISO

Product Description

Product Description
Magnetic PM Monitored motions stepper dc driving motor
Specification of Magnetic PM Monitored motions stepper dc driving motor

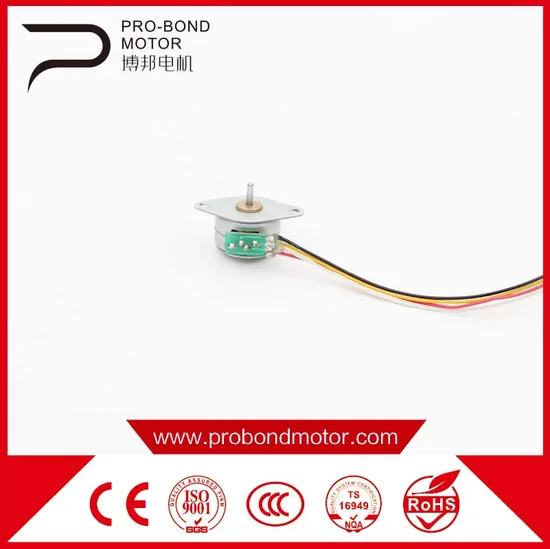

15BY PM Step Motor
Basic Info
Item			Data
Tem. Rise			50K max
Working Tem.			(-20ºC~+80ºC)
Insulation Resistance			100MΩ min 500VDC
Surge Test			500VAC for 1min
Insulation Class			E
Weight			10g

Specification
PN	Step Angle	Voltage	Current	Resistance	Inductance	Drive in torque	aligning torque	Starting Frequency	Rotate Frequency	Noisy Level
	(°)	V DC	mA	Ω	mH	g.cm(200pps)	g.cm	pps	pps	db
15BY45-10-4	18	5	250	10	13	3.5	8	500	600	30
15BY45-30-4	18	12	150	30	45	3.5	8	500	600	30

About our company
Probond motors designs brush, brushless, stepper, hysteresis and linear motors to meet customers requirements. Our motors use standard and special components with customer selected torque/speed requirements that can be modified to your applications. The AC/DC gear motors are based upon to distinct magetic circuits that optimize motor design for high speed low torque and low speed high torque. These motors give you lower rotational losses, excellent thermal transfer, interchangeable end caps, easily sealed. Options include connectors, encoders, shaft modifications, dimensional changes, etc. Probond motor owns professional sales team and engineer team with more than 10 years experience in motor industry, based on China mainland handling overseas business for years, we know your needs better than others. Probond Sonicare Toothbrush Motor and Thermostatic Valve Hysteresis Motor are our hot products on sell in 2017 with highly quality level and competitive price. Please kindly contact us to get a catalogue.
Shipping&Payment

Terms of price	FOB,CIF,CFR,EXW,DDP,etc.
Terms of payment	100% T/T in advance for samples
	Bulk quantity payment way can be negotited
Warranty	12 months limited warranty once the items are delivered to the buyer.
Lead time	Usually within 2 weeks for trial orders, within 3 weeks for bulk orders.
Package	Carton o plywood pallet.
Place of loading	Shanghai, Ningbo, etc.
Shipment carrier	Items are usually shipped via Fedex,DHL,TNT,UPS,EMS for trial orders and via vessel for bulk orders.
Delivery time	Usually within 5 working days by Express 15-30 working days by vessel

Our promise to our Customers:
1. Answer customer's inquiry within 2 working days.
2. Reply to our customer questions & Concerns within 3 working days.
3. Acknowledge Customer purchase orders within 24 hours.
4. Standard Lead time is within 4 weeks. Respond to special product development within 15 weeks.
5. Flexible delivery methods: By air, sea and express carrier using the customer's forwarder.
