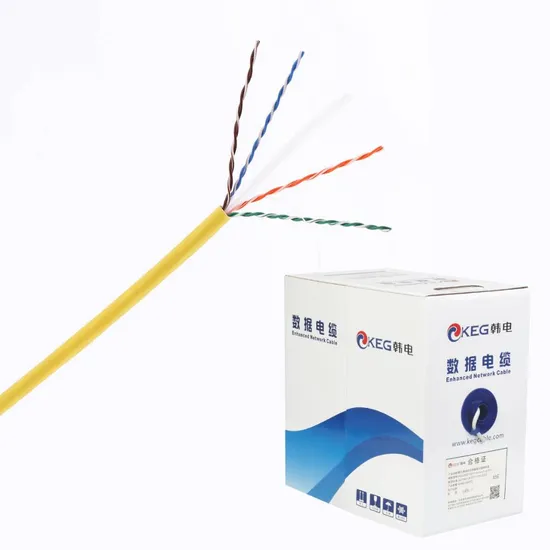

High Performance Solid LSZH Network Data LAN FTP UTP Cable CAT6

High Performance Solid LSZH Network Data LAN FTP UTP Cable CAT6

US$0.19-0.31 10,000 Meters (MOQ)

Basic Info.

Model NO.
CAT6 UTP Cable
Cover Material
LSZH
Type
Cat 6
Material Shape
Round Wire
Conductor Type
Solid
Wire Core Material
Bare Copper Wire
Certification
CE, ISO, RoHS, CCC, VDE
Model
CAT6
Brand
CAT6
Conductor Diameter
5±0.008mm /23AWG
Insulation Material
HDPE
Insulation Diameter
1.00±0.02mm
Rip Cord
Nylon
Cross Skeleton
4.5*0.45mm
Jacket Material
PVC
Jacket Diameter
6.2±0.5mm
Jacket Thickness
≥0.55mm
Frequency
250MHz
Linear Resistance
≤9.0Ω/100m
Insulation Resistance
≥5000mΩ/Km
Mutual Capacity
0.8kHz:≤5.6NF/100m
Unbalance Resistance
≤2%
Characteristic Impedance
100±15Ω
Dielectric Strength
DC.1kv.1min No Break
Transport Package
305m/Easy Pull Box
Specification
100m, 305m, 500m, 1000m
Trademark
OEM
Origin
Ningbo, China
HS Code
8544421100
Production Capacity
600, 000 PCS/ Month

Product Description

Product Description
1. CAT6 UTP Cable 23AWG 0.52mm/0.53mm/0.55mm/0.57mm BC
2. Bare copper for superior conductivity, Reach performance to 350Mhz
3. Have CE, UL, DELTA, GHMT, CPR-Eca, Dca, Cca, B2ca certificate 4.100% Solid Copper Conductors
Transmission Performance(20ÂșC,100m)
Frequency (MHz) ReturnLoss (dB) Attenuation (dB/100m) NEXT
(dB)
PS NEXT
(dB)
EL FEXT
(dB/100m)
PS EL FEXT (dB/100m)
1 20 2.0 74.3 72.3 67.8 64.8
4 23 3.8 66.3 63.3 56 53
8 24.5 5.3 61.8 58.8 49.9 46.9
10 25 6.0 60.3 57.3 48 45
16 25 7.6 57.2 54.2 43.9 40.9
20 25 8.5 55.8 52.8 42 39
25 24.3 9.5 54.3 51.3 40 37
31.25 23.6 10.7 52.9 49.9 38.1 35.1
62.50 21.5 15.4 48.4 45.4 32.1 29.1
100 20.1 19.8 45.3 42.3 28 25
200 18.0 29.0 40.8 37.8 22 19
250 17.3 32.8 39.3 36.3 20 17
Ningbo Handian Cable is a professional cable manufacturer to make bulk cable and patch cord for more than 20years. We are the TOP 3 in the network lan cables business in Ningbo city. Our cables are compliance with all international standard and have all necessary certificate: ETL, Delta, GHMT, CE, IQNet, 3C, EU CPR, UKCA etc. Our production capacity is more than 60,000 boxes per month. 1. All of our Brand are KEG or OEM Brand; 2. All of products we offer are high quality and competitive price; 3. Payment : T/T,L/C etc. 4. Packing :100m coil, 305m/easy pull box, 305m/reel insdie box, 305m/wooden drum, 500m/1000m/ wooden drum etc.
