China Brand Se75 Shantui 7.5 Ton Mini Crawler Excavator in Stock Ready for Ship

Product Description

Product Description

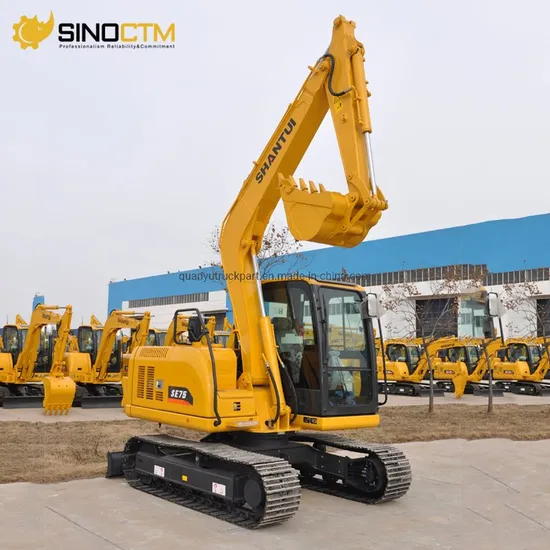

Shantui SE75 Constant Power Load Sensitive Single Pump Hydraulic System Mini Crawler Excavator
Configuration Selling Point
The machine features an excavator-specific engine based on the Weichai N-series new platform,ensuring fuel-efficient performance.The incorporation of an intercooler technology route further enhances fuel efficiency and reduces consumption, a feature exclusive to this tonnage range. The load-sensitive, constant-power, and electro-proportional control hydraulic system ensures the provision of appropriate pressure and constant flow based on the load demand, with reduced energy loss.Ease Of Maintenance And Operation Comfort
The fully openable engine hood is equipped with a positioning mechanism, allowing for effortless and safe opening. The spacious engine compartment provides convenient access for maintenance. Refilling windshield washer fluid, replacing air filters, and accessing the main power switch are all easily accessible. The diesel pre-filter is conveniently located on the right-side door to facilitate easy maintenance.Adaptability To Diverse Working Conditions
With its heavy weight, the machine demonstrates good stability. It is equipped with hydraulic cylinders with a large diameter to provide large digging force, and features the industry's largest bucket capacity. The machine offers multiple preset working modes, enabling its versatile application in diverse working conditions, including excavation, leveling, crushing, and lifting operations.

Product Parameters
PARAMETER SHANTUI MINI EXCAVATOR SE75

Comparative item	SE75 (Standard version)
Overall dimensions
Overall length (mm)	6240
Ground length (During transport) (mm)	3750
Overall height (To the top of boom) (mm)	2660
Overall width (mm)	2260
Overall height (To top of cab) (mm)	2680
Ground clearance of counterweight (mm)	825
Minimum ground clearance (mm)	385
Tail turning radius (mm)	1880
Track length (mm)	2820
Track gauge (mm)	1800
Track width (mm)	2250
Standard track shoe width (mm)	450
Turntable width (mm)	2230
Distance from slewing center to tail (mm)	1850
Working range
Maximum digging height (mm)	6945
Maximum dumping height (mm)	4895
Maximum digging depth (mm)	4120
Maximum vertical digging depth (mm)	3620
Maximum digging distance (mm)	6360
Maximum digging distance at ground level (mm)	6205
Working device minimum turning radius (mm)	2040
Maximum lifting height of bulldozer blade (mm)	385
Maximum digging depth of bulldozer blade (mm)	225
Engine
Model	V3307T (China III)
Type	Water-cooled and turbocharged
Displacement (L)	3.3
Rated power (kW/rpm)	48.9/2000
Hydraulic system
Type of hydraulic pump	Axial variable plunger pump
Rated working flow (L/min)	160
Bucket
Bucket capacity (m³)	0.25~0.35(0.32)
Swing system
Maximum swing speed (r/min)	11
Brake type	Mechanically applied and pressure released
Digging force
Bucket arm digging force (KN)	44
Bucket digging force (KN)	66
Operating weight and ground pressure
Operating weight (kg)	7650
Ground pressure (kPa)	34
Traveling system
Traveling motor	Axial variable displacement plunger motor
Traveling speed (km/h)	2.9/4.8
Traction force (KN)	86.5
Gradeability	70%(35°)
Tank capacity
Fuel tank capacity (L)	155
Cooling system (L)	11
Engine oil capacity (L)	11
Hydraulic oil tank/system capacity (L)	96/130

Company Profile
Shantui Construction Machinery Co., Ltd., founded in 1980, was a national category I key enterprise integrating research & development, production and sales of main engine products and key components of earth moving machinery, pavement construction & compaction machinery, building machinery, hoisting machinery and other construction machinery series products.
Shantui owns a sound sales system and complete sales service network, and its products are sold all over the country and overseas in more than 150 countries and territories. At present, there are 26 Shantui monopolized stores and 150 marketing points. The international strategy is implemented stably; now, Shantui has 71 overseas Agents, as well as 10 overseas Subsidiaries in the United Arab Emirates, South Africa, Russia and Brazil. In the aspect of marketing service mode, it abides by the principle of "value leading and win-win service", introduces advanced concepts such as leading the industrial service promise, quality tracking and user care, provides solutions of whole set equipment construction for customers in time; and the humanized and punctual top-quality service help Shantui win customers' praise, thus enhancing brand value of the enterprise. Six Free Services Free technical enquiries with our experts.
Free repair service during warranty period.
Free special services for all key construction projects.
Free 0 hour service upon deliver of machine.
Free training of operators and repairs staff.
Free maintenance service tracking (customer to provide resources)
If Shantui machinery is in operation in key projects on a provincial level or higher, the customer will receive special services from Shantui (free special coating service, on-site service, extended on-site service). These special services will allow customers to work more freely without any worries.
