Basic Info.
Application
Powder, Viscous Fluid, Granules, Powder
Application Area
Pharmaceutical
Control System
Manual or PLC
Optional Function
Heating, Drying, Liquid Spraying
Construction
Mild Steel, SUS304, SUS316L
Discharging Valve
Pneumatic Valve or Manual Valve
Weighing System
Load Cells (Optional)
Mixer Volume
as Per Order
Voltage
240V/380V/415V/440V
Operating type
Cycle Operating
Transport Package
Standard Export Package
Specification
As per order
Production Capacity
300 Sets/Month
Product Description

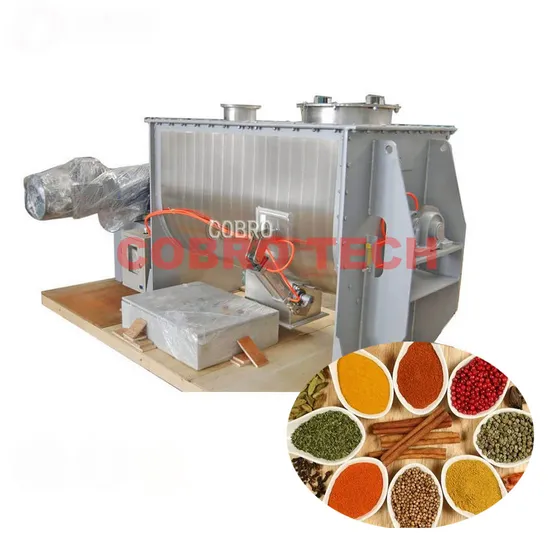

Product Description Horizontal Ribbon Mixer Powder Mixing Machine Ribbon Blender
The ribbon blender is widely used in chemical industry,food industry,pharmaceuticals industry to mix powder and additive, powder and liquid, and powder and granule. Under the driven of motor, the ribbon agitator mix the material quickly. This ribbon blender is characterized by high mixing effect, large productivity, and a very low failure rate.
Weighing mixer blender comprise of U-shape barrel,transmission parts,ribbon agitating blades and weighing system which usually have double or triple layers with outside screw gathering material from side to center and inside screw transmitting the material from center to sides to form convection mix.
Product Feature Horizontal ribbon blender
1) Horizontal tank body, need small space but more capacity.
2) Dual screw structure-The inner screw push the material form central to sides and the outer screw push the material from sides to the center to make the material effective mixing.
3) Gear box drive the auger shaft , low noise and low malfunction, long using life.
4) U-Shape tank bottom, better for material discharge and cleaning.
5) Pneumatic cylinder to control the discharge exit.
6) Air cylinder help the top cover easy open.
7) Heating,cooling function can be realized.
8) Customized ribbon blender available.
9) PLC controlled,equipped with mettler toledo (or local brand) weigh modular and weighing terminal.
Product Parameters
Model | PLLD500 | PLLD1000 | PLLD2000 | PLLD3000 | PLLD5000 | PLLD10000 |
Working volume(M3) | 0.3 | 0.6 | 1.2 | 1.8 | 3 | 6 |
Speed(r/m) | 62 | 50 | 33 | 33 | 28 | 23 |
Total Power(Kw) | 7.5 | 11 | 15 | 18.5 | 30 | 55 |
Weight(kg) | 900 | 1200 | 2000 | 2500 | 4000 | 6000 |
Dimension(cm) | 265*80*125 | 385*120*165 | 200*130*196 | 445*130*170 | 530*150*210 | 560*185*265 |
