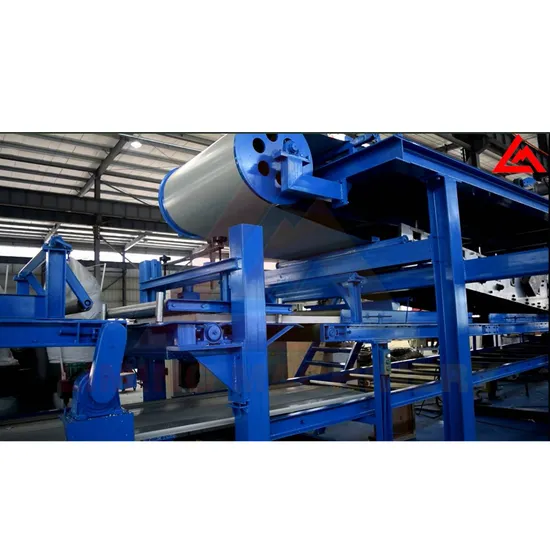

Rock Wool Sandwich Panel Production Line for Gates

Product Description

Product Description

1. The general machine parameter
Suitable roll forming material	Color steel sheet or galvanized steel sheet
Thickness	2.0-3.0mm
Frame design	Wall-plate-frame-design /Strong-stand-frame-design
Roll stages	17stages
Material of forming roller	1. 45# steel, CNC lathes, Hard Chrome Coated 2. 40Cr, heat treatment, nitrided treatment
Shafts Diameter	Φ75/95mm
Main motor power	18.5KWwith reducer
Max. Line speed of roll former	8-10m/min (Higher speed is available, depends on the specification required by the buyer)
Hydraulic group power	22KW
Material of cutting blade	Cr12, hear treatment
Electric Standard	380V /50Hz/3PH or as the customer's requirements
Machine Dimensions	9840mm×2030mm×1130mm
Major Color of Machine Painted	RAL 5015 (Blue) or as per customer's requirements
2. PLC Control system
PLC	Siemens brand (ABB brand is available if required)
Touch Screen	Siemens brand (ABB brand is available if required)
Inverter	Schneider brand (ABB brand is available if required)
Encoder	Omron brand
3.Product rack
Description	un-powered, 4 meters length
Option: Pre-Level Device Hydraulic Punching & Cutting M/C CE certificate Pl refer to the attached pictures for details

After-Sale Service

In correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements.
Installation:
If installation is needed, WE will dispatch a technician to the buyer's factory abroad to assist regulating the machine with charge free.
The buyer should assist US to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation.
If installation is needed, the buyer shall make the following preparation before arrival of technicians.

Terms Of Trade

Package & Shipment: Facility water-proof packing, Control cabinet packed in wooden packing.
Payment: 30%payment by T/T is required as deposit within a week since the contract signing date.70% payment by T/T is required before the machine be send out of factory.
