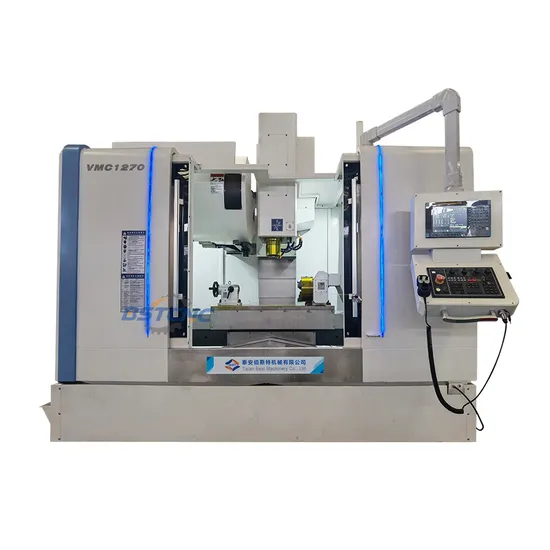

Vmc1270 4th Axis 5th Axis Vertical CNC Machining Center CNC Milling Machine

Vmc1270 4th Axis 5th Axis Vertical CNC Machining Center CNC Milling Machine

US$35,000.00-48,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
VMC1270
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
System
Numerical Control
CNC
Processing Precision
+-0.015
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, ISO 9001
Condition
New
Spindle Taper
Bt40-150
Table Size
1300X600mm
Max. Loading
800kg
Tool Changer
24t Atc
Spindle Speed
8000rpm
Xyz
1200X700X700mm
Spindle Motor
11/15kw
Product Name
Vertical CNC Machining Center CNC Milling Machine
Transport Package
Wooden Case
Specification
27CBM
Trademark
BST
Origin
China
HS Code
8457101000
Production Capacity
300/Year

Packaging & Delivery

Package Size
450.00cm * 230.00cm * 258.00cm
Package Gross Weight
8200.000kg

Product Description

Product Description
VMC series is suitable for the mechanical processing and mold making. And it can adapt to the processing requirement from rough machining to finish machining . It can also finish many working procedures like milling, drilling, tapping, boring etc.
Product Parameters
Items VMC1270 CNC MACHINING CENTER
Travel X axis 1200mm
Y axis 700mm
Z axis 700mm
Spindle nose to table 150-850mm
Spindle nose to column 780mm
Feed max X rapid feed 36m/min
max Y rapid feed 36m/min
max Z rapid feed 36m/min
Cutting feed 1-10000mm/min
Torque X:23N.m Y:23N.m Z:23N.m
Table Table size 1300×700mm
Max load 800Kg
T slot 5×18×125mm
Spindle Type Belt
Speed 8000rpm
Spindle taper BT40-150
Main motor 11KW/15KW
Accuracy Accuracy (JIS) ±0.005/300mm
Repeatability (JIS) ±0.0075mm
Other Weight 8200 Kgs
Machine Size 4500×2300×2580

Standard configuration: Optional :
-GSK218M/25i Control system; -Fanuc ,Siemens ,Mitsubishi,KND,HNC....
-Taiwan BT40-150-8000RPM spindle; -Chain chip conveyor ;
-Taiwan Arm Type Tool Changer 24T; -Spindle oil coolant;
-Taiwan Hiwin linear guideways and ball screw; -Taiwan TJR brand the 4th axis ;
-Three color alarm Lamp; -Renishaw tool setter TS27R ;
-Automatic Central Lubrication System and Cooling system; -Online measuring system OMP60;
- Full Enclosure Machine Guard; -Water out of the spindle center;
