Wellco PVDF FEP PFA Non Slip Insulation Cable Sleeve Protection Heat Shrinkable Tubing Heat Shrink Tube

Product Description

Product Description
Material: cross-linked modified polyolefinOperating temperature:-55ºC~125ºCMinimum shrink temperature: 70ºCMinimum fully recovery temperature: 120ºCShrink ratio: 2:1Features:• halogen-free environment, low smoke, the product complies "RoHS", "REACH", • soft, flexible• UL224 VW-1 flammability• Excellent insulation, heat resistance and voltage performance.Application:widely used in electronics, subways,buildings, public facilities and so on.

Test Items	Test Methods	Performance
Temperature Rating	UL224	125ºC
Length Rate Of Change	ASTM D2671	-5ºC~+5ºC
Tensile Strength	ASTM D638	≥10.4MPa
Breaking Elongation	ASTM D638	≥200%
Hot Air Aging Test	158.0ºC/168h	-
Thermal Aging Tensile Strength	ASTM D638	≥7.3MPa
Heat Aging Breaking Elongation	ASTM D638	≥100%
Voltage Level	UL224	300V/600V
Volume Resistivity	ASTM D2671	≥1.0x1012cm
Breakdown Voltage	UL224	2500V(60s) No Breakdown
Thermal Stock	UL224/250ºC±3ºC/4h	Does not drip, Does not flow, Does not crack
With heart	ASTM D2671	≥70%

Size	As supplied (mm)		after full Recovery(mm)
	Diameter(D)	Thickness(T)	Diameter(d)	Thickness(t)
2:1
Ф0.7	1.0+0.2/-0.1	0.18±0.05	≤0.40	0.32±0.08
Ф0.8	1.2+0.2/-0.1	0.18±0.05	≤0.45	0.34±0.08
Ф1.0	1.5+0.2/-0.1	0.18±0.05	≤0.60	0.36±0.08
Ф1.5	2.1+0.2/-0.1	0.18±0.05	≤0.80	0.36±0.08
Ф2.0	2.5+0.2/-0.1	0.20±0.05	≤1.00	0.42±0.08
Ф2.5	3.0+0.2/-0.1	0.22±0.05	≤1.25	0.46±0.08
Ф3.0	3.5+0.2/-0.1	0.22±0.05	≤1.50	0.46±0.08
Ф3.5	4.0+0.2/-0.1	0.22±0.05	≤1.75	0.46±0.08
Ф4.0	4.6+0.2/-0.1	0.22±0.05	≤2.00	0.46±0.08
Ф4.5	5.0+0.2/-0.1	0.23±0.05	≤2.25	0.46±0.08
Ф5.0	5.5+0.2/-0.1	0.25±0.05	≤2.50	0.50±0.08
Ф5.5	6.0+0.2/-0.1	0.25±0.05	≤2.75	0.50±0.08
Ф6.0	6.5+0.2/-0.1	0.25±0.05	≤3.00	0.55±0.10
Ф6.5	6.9+0.2/-0.1	0.25±0.05	≤3.25	0.55±0.10
Ф7.0	7.5+0.2/-0.1	0.25±0.05	≤3.50	0.55±0.10
Ф8.0	8.5+0.3/-0.1	0.28±0.06	≤4.00	0.58±0.10
Ф9.0	9.5+0.2/-0.1	0.28±0.06	≤4.50	0.58±0.10
Ф10	10.5+0.3/-0.1	0.28±0.06	≤5.00	0.58±0.10
Ф11	11.5+0.3/-0.1	0.28±0.06	≤5.50	0.58±0.10
Ф12	12.5+0.3/-0.1	0.28±0.06	≤6.00	0.58±0.10
Ф13	13.5+0.3/-0.1	0.28±0.06	≤6.50	0.58±0.10
Ф14	14.5+0.3/-0.1	0.28±0.06	≤7.00	0.58±0.10
Ф15	15.5+0.3/-0.1	0.28±0.06	≤7.50	0.58±0.10
Ф16	16.5+0.3/-0.1	0.28±0.06	≤8.00	0.58±0.10
Ф17	17.5+0.3/-0.1	0.28±0.06	≤8.50	0.58±0.10
Ф18	18.5+0.3/-0.1	0.32±0.08	≤9.00	0.68±0.10
Ф20	20.6+0.5/-0.2	0.32±0.08	≤10.0	0.68±0.10
Ф22	22.6+0.7/-0.2	0.35±0.08	≤11.0	0.72±0.12
Ф25	25.6+0.7/-0.2	0.40±0.10	≤12.5	0.78±0.12
Ф28	28.6+0.7/-0.2	0.40±0.10	≤14.0	0.78±0.12
Ф30	30.6+0.7/-0.2	0.40±0.10	≤15.0	0.82±0.12
Ф35	35.6+0.7/-0.2	0.45±0.10	≤17.5	0.92±0.12
Ф40	41.0±0.5	0.50±0.12	≤20.0	1.00±0.15
Ф45	46.0±0.5	0.50±0.12	≤22.5	1.00±0.15
Ф50	51.0±1.0	0.55±0.15	≤25.0	1.10±0.15
Ф55	55.5±1.0	0.55±0.15	≤27.5	1.10±0.15
Ф60	60.5±1.0	0.60±0.15	≤30.0	1.25±0.20
Ф70	71.0±1.0	0.60±0.15	≤35.0	1.25±0.20
Ф80	81.0±1.0	0.60±0.15	≤40.0	1.25±0.20
Ф90	91.0±1.0	0.60±0.15	≤45.0	1.25±0.20
Ф100	101.0±1.0	0.60±0.15	≤50.0	1.25±0.20
Note: Other sizes and colors can be available upon request

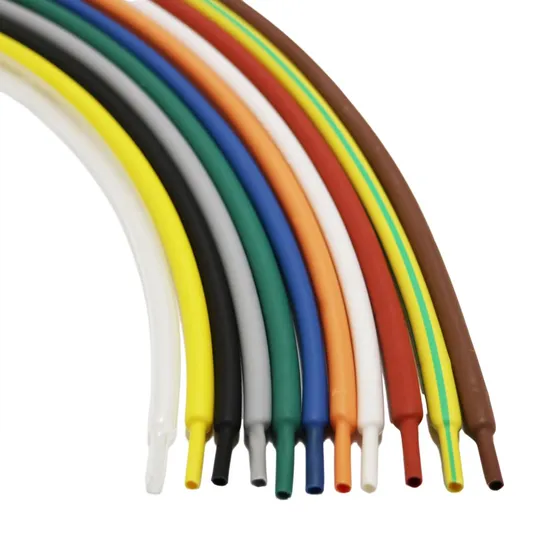

Detailed Photos
