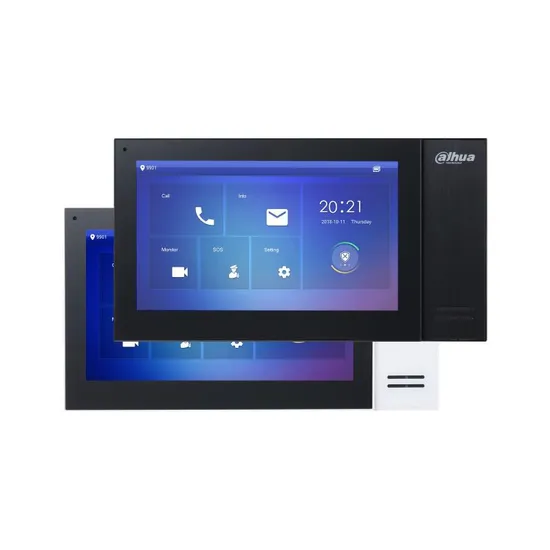

Dahua Vth2421fb (W) -P IP Indoor Monitor 7" TFT Capacitive Touch Screen IP Video Intercom
| US$55.00-70.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
VTH2421FB(W)-P
Voice Service
With Voice Service
Installation
Wall-Mounted
Certification
FCC, CE
Main Processor
High performance Embedded Processor
Operating System
Embedded Linux OS
Screen Type
Capacitive Screen
Display
7-Inch TFT Screen
Resolution
1024 * 600
Video Compression
H.264
Audio Compression
G.711A/G.711u/PCM
Audio Input
1 Channel All-Direction Microphone
Audio Output
Built-in 1.5W Loudspeaker
Audio Mode
Support Dual-Way Bidirectional Talk
Audio Enhancement
Support Echo Cancellation/Dnr
Audio Bit Rate
16 Kbps
Communication Mode
Full Digital
Alarm Input
6 Channel (Switch Quantity)
Alarm Output
1 Channel
Transport Package
Paper Box
Specification
119.6 mm * 221.5 mm * 21.5 mm
Trademark
Dahua Brand & OEM Netrual Optional
Origin
China
HS Code
8525801390
Production Capacity
10000PCS/Month
Product Description
Overview VTH2421FB(W)-P IP Indoor Monitor> 7" TFT Capacitive touch screen, 1024 x 600
> IPC surveillance
> Alarm integration
> High performance & Cost-effective
> Embedded 8GB SD card
> Support standard PoE Specifications
| Technical Specification | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Main Processor | High performace embedded processor | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating System | Embedded LINUX OS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Screen Type | Capacitive screen | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Display | 7-inch TFT screen | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Resolution | 1024 × 600 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Compression | H.264 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Compression | G.711A/G.711U/PCM | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Input | 1 channel all-direction microphone | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Output | Built-in 1.5W loudspeaker | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Mode | Support dual-way bidirectional talk | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Enhancement | Support echo cancellation/DNR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Bit Rate | 16 kbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Communication Mode | Full digital | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Information Release | Support to receive and view notifications issued by center | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Leave Videos or Text Messages | Support | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DND Mode | Support to set DND period | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Sub-station Quantity | 9 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Input | 6 channel (switch quantity) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Output | 1 channel | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network | 1 RJ-45 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SOS Alarm | Support | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Casing | PC+ABS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Appearance Color | Appearance Color | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Supply | Standard PoE DC 12V 1A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Installation | Wall mount | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Accessories | Default bracket Default alarm cable | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dimensions | 119.6 mm × 221.5 mm × 21.5 mm (4.71" × 8.72" × 0.85") | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Temperature | -10°C to +55°C (+14°F to +131°F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Humidity | 10%RH-95%RH | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Consumption | Standby≤4W, work≤6W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gross Weight | 0.35 Kg (0.77 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power supply mode | PoE | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage | Support Micro SD, maximum memory capacity 32 G, standard memory capacity 8 G | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
FAQ Q: Why choose us?
A: We directly cooperate with the world's top manufacturers Dahua, Hikvision, and Imou, you will get the most favorable prices and the best technical support.
Q: How to confirm whether the product is Dahua's genuine English version?
A: You can download software from the official website ofDahua.Only Dahua's genuine product is compatible with the software. And we promise all of our products are genuine Dahua products.
Q: When will you ship my order?
A: For those in stock, we will ship orders within 1-5working days once we get a confirmation for payment
For those out of stock, delivery time is around one month
Q: Can l install the IP camera by myself?
A: Of course the camera is flexible and installed. And there is a user manual in the box.
Q: What's your payment method?
A: We accept T/TWesternUnion, MoneyGram, and Paypal
Q: Do you support drop shipping?
A: Yes, your drop shipping is available
Q: How about a warranty?
A: Three years warranty and you can contact us for any technical problems. Our technicians will support you in 24 hours.
