High Quality 100W/200W SMT Stencil Laser Cutting Machine Single Head Sheet Metal Cutting Machines for Sale
| US$55,000.00-70,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
3HE-GW100W
Application
Home Appliance, Environmental Equipment, Automotive Industry, Advertising Industry
Cooling System
Air Cooling
Technical Class
Continuous Wave Laser
Applicable Material
Metal
Structure Type
Desktop
Laser Classification
Fiber-Optic Laser
Laser Technology
Laser Control Fault Cutting
Laser Source
Import Ipg
Motor
Servo Motor
Watt
100W/200W/300W
Cooling
Air Cooling
Working Area
600*600mm
Weight
2000kg
Key Selling Points
High-Accuracy
Power Supply
220V 50Hz
Max Cutting Speed
120m/Min
Transport Package
Plywood Case
Specification
1450*1450*1450
Trademark
SANHE
Origin
China
HS Code
8461500090
Production Capacity
50set/Month
Product Description

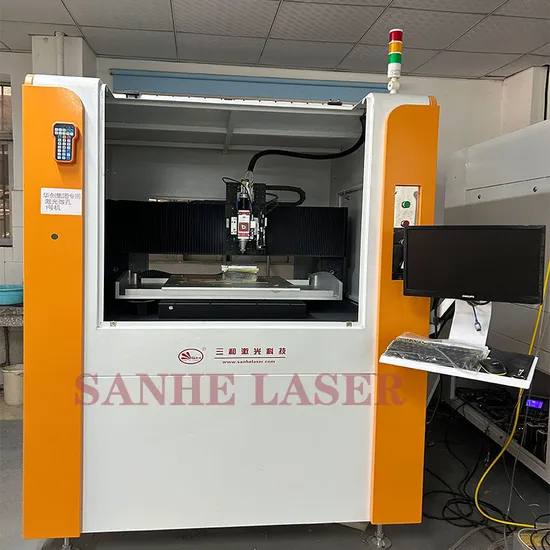

Product DescriptionThis is a high-precision SMT laser cutting machine. It adopts the fiber laser with long-life air cooling technology imported from abroad. Its beam quality is good, its luminous life is long, and its photoelectric conversion efficiency is high. There is no need to replace the lamp tube, and it is free of maintenance costs. The use of air cooling technology greatly saves power consumption. The minimum spot diameter can be focused to 0.016mm, making the hole wall more smooth and flat. During the cutting process, a small amount of industrial oxygen is used to assist the cutting, which has no impact on the environment.
Detailed Photos
High-precision linear motor module, frictionless, energy-saving, efficient and stable in operation, with transmission frequency accuracy up to 0.5 micron.
Self-developed laser cutting head.
Adapt to standard QBH
Three protective mirrors protect against dust
Stable operation, small size, light weight, suitable for precision cutting.
Features marble countertops and honeycomb blade platform.
The marble platform has good overall rigidity and high strength. It can ensure the stability of the fuselage structure.
Flat countertop. Reduce the frequency of jitter and ensure stable product placement. Greatly improve precision
Intelligent CNC software system, rich functional modules, simple and easy to operate, can be effectively used in laser cutting processing of various materials.
Product Parameters
| Model | 3HE-GW100W | 3HE-GW200W | 3HE-GW300W |
| Laser Power | 100W | 200W | 300W |
| Max. Cutting Thickness | ≤0.5 mm | 0.5mm-1mm | 1mm |
| Laser Type | Imported Fiber Laser IPG | ||
| Laser Technology | Germany Technology | ||
| Working area | 600*600 mm | ||
| X axis Stroke | 660mm | ||
| Y axis Stroke | 660 mm | ||
| Location precision | ±2μm | ||
| Re-location precision | ±2μm | ||
| Max. moving speed | 120m/min | ||
| Laser wavelength | 1060-1080nm | ||
| Minimum line width | ≤0.1mm | ||
| Supporting Format | DXF | ||
| Power demand | 220V/50HZ | ||
| Worktable max. load | 2000 Kg | ||
| Dimension (L*W*H) | 1450mm*1450mm*1450mm | ||
| Control software | SANHE Laser Professional Laser Cutting Software | ||
Packaging & Shipping
Company Profile
Contact us: Dongguan Sanhe Laser Tech Co.,LTD.
