1L 2L 5L HDPE PP Yogurt Bottle Making Extrusion Blow Molding Machine
| US$10,000.00-30,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SZ-65
Raw Material
HDPE
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
After-sales Service
Video Technical Support, Free Spare Parts, Field I
Application
Bottles, Jars, Jerry Cans, Gallons, Containers
Clamping System
Toggle Type Clamping System
Max. Product Volume
5L
Clamping Force
68kn
Station
Single Station or Double Station
Die Head
Single Head or Double Head
Mould
One Cavity or Two Cavity
Auto-Deflashing
with Auto-Deflashing
Platen Size
360*390 mm
Platen Opening Stroke
200-500 mm
Mould Thickness
210-300 mm
Platen Moving Distance
440 mm
Suitable Material
HDPE,PP,PVC,PS,PETG,LDPE
Transport Package
Film Packing
Specification
65I
Trademark
ShenZhou
Origin
Jiangsu, China
HS Code
8477301000
Production Capacity
15 Set/Sets Per Month
Product Description

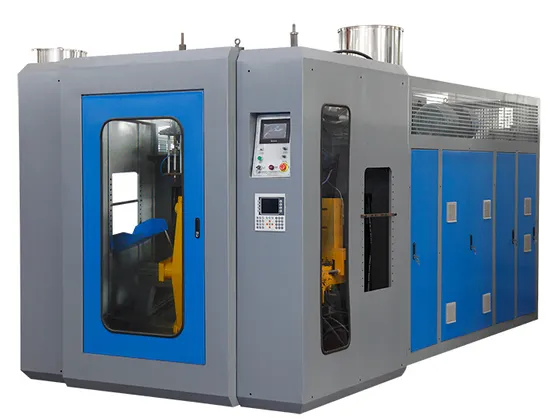

SZ-65 full-automatic bottle-making machine is specially designed for plastic chemical bottles, medical bottles, lubricant oil bottles, cosmetic bottles, and other small plastic bottles not over than 5Liters. Product: 0~5 L Bottles
Power supply: 380/220v 50/60 Hz Tri-phase
Die head number: Single / Double
Suitable raw material: PE, PP, PVC, PS, PETG
Output capacity: 140~160 pcs/h (5L) / with single head
300~320 pcs/h (1L) / with double head
Technical Parameters: SZ-65
| SPECIFICATIONS | UNITS | SZ-65 SERIES | |||
| AB | L | 5 | |||
| Number of die heads | Set | 1 | |||
| Dry cycle time | Second | 5 | |||
| Machine dimension (L*W*H) | M | 3 *1.9 *2.4 | |||
| Total weight | Ton | 3.5 | |||
| CLAMPING UNIT | |||||
| Clamping force | KN | 68 | |||
| Platen opening stroke | mm | 200-500 | |||
| Platen size | mm | 360*390 | |||
| Max mould size (W*H) | mm | 390*390 | |||
| Mould thickness | mm | 210-300 | |||
| Platen moving distance | Mm | 440 | |||
| POWER | |||||
| Extrusion motor power | KW | 15 | |||
| Oil pump motor power | KW | 5.5 | |||
| Extrusion heating power | KW | 12 | |||
| Head heating power | KW | 5.7 | |||
| Cooling Fan power | KW | 0.42 | |||
| Total power | KW | 38.62 | |||
| Average power consumption | KW | 21 | |||
| EXTRUDER UNIT | |||||
| Screw diameter | mm | 65 | |||
| Screw L/D ratio | L/D | 24 | |||
| Plasticizing capacity | Kg/hour | 75~80 | |||
| Number of heating zone | Zone | 3 | |||
| Extruder heating power | KW | 12 | |||
| Extruder driving power | KW | 15 | |||
| Cooling Fan No | 3 | ||||
| Fan power | KW | 0.42 | |||
| DIE HEAD | |||||
| Head type | Continuous extrusion head | ||||
| Head No | 1 | 2 | 3 | 4 | |
| Central distance / mm | - | 160 | 110 | 85 | |
| Max die diameter / mm | 150 | 80 | 50 | 30 | |
| Heating zone No | 2 | 3 | 4 | 5 | |
| Heating power | 5.7 | 4.8 | 5.2 | 6.5 | |
The main components of the machine
| electronic parts | |
| Name | Trader |
| Micro computer control system | TAIWAN WISETECH |
| Temperature Controller | TAIWAN HUIBANG |
| Auxiliary Relay | OMRON |
| contactor | SOLID |
| Electric motor | Three phase 220V or 380V |
| Power Source | TAIWAN MEANWELL |
| Transducer | ABB from SWIZERLAND |
| hydraulic parts | |
| Name | Trader |
| Oil pump | TAIWAN HIGH-TECH |
| Valve | YUKEN |
| Oil pump and connection | YUKEN |
| Sealed part | HALLITE |
| air control system | |
| Name | Trader |
| Cylinder | AIRTAC |
| Air Valve | AIRTAC |
