Building Elevator 1ton 2ton Construction Lifter Hoist Sc200/200 with CE
| US$10,000.00-35,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
sc200/200
Model No.
Sc200/200
Free Standing Height
50 M
Max Lifting Height
150 M
Rated Load
2*2000 Kg
Motor Power
2*3*11
Lifting Speed
33 M/ Min
Mast Size
650*650*1508
Cage
3*1.3*2.2 M
Color
Customer Requirements
Transport Package
Packed in a High Quality Plywood Case
Specification
CE, ISO, GV
Trademark
Tavol
Origin
Shandong Province, China.
HS Code
8426200000
Production Capacity
30000
Product Description
Product Description:

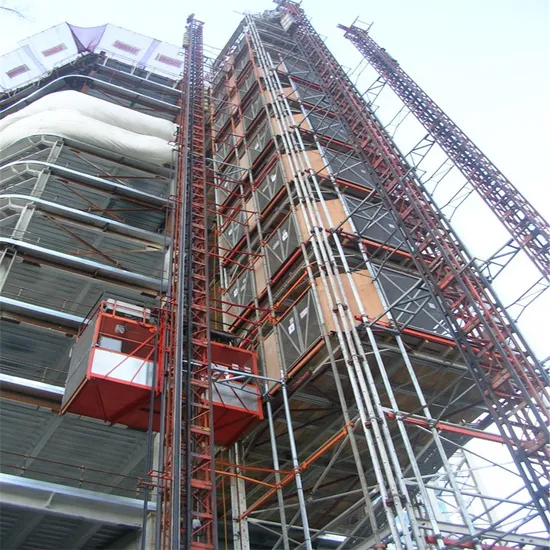

Double Cage Construction Hoist 2t Load Building Elevator Hoist
2.Standard Model Specification for Construction Hoist:
| Item | SC200/200 | |
| Basic parameters | Free standing height(m) | 50 |
| Max.Lifting height(m) | 150 | |
| Rated Load(kg) | 2*2000 | |
| Motor power(kw) | (2*3)*11 | |
| Lifting speed(m/min) | 33 | |
| Main cable | 3*20mm2+2(National Standard) | |
| Standard section | Mast size(m) | 650*650*1508 |
| Main limb material(steel tuble) | φ76×4.5/Q345B | |
| Cage | cage inner dimensions(m) | 3*1.3*2 |
>>Our Company:
TAVOL CRANES has been in the field of crane and hoist for more than 10 years, so we are experienced and professional in manufacturing and exporting all kinds of cranes (including Tower Crane, Construction Hoist,Overhead Crane, Gantry Crane, Jib Crane), wire rope electric hoist, electric chain hoist, hook block and crane other spare parts.
>>FAQ:
Could you please provide more details in order that wer can provide exact price to you:
1-Single cage/Double cage
2-Project height
3- With inverter control or common control
4-Local Power Supply
5 -Other special requirements
>>Contact us:
With us your money will be in safe and your business will be in safe!
As quality is our culture!
Ms.Amy Lu
If you like our products,please contact us!
