Plastic/LDPE/PE/PP/HDPE/LLDPE/BOPP/Film/Foil/Woven/Bags/Raffia/Centrifugal/Dewatering/Squeezing/Squeezer/Pelletizing/Pelletizer/Dryer/Machine

Product Description

Plastic/LDPE/PE/PP/HDPE/LLDPE/BOPP/Film/Foil/Woven/Bags/Raffia/Centrifugal/Dewatering/Squeezing/Squeezer/Pelletizing/Pelletizer/Presser/Compressor/Dryer/Machine
Product Description

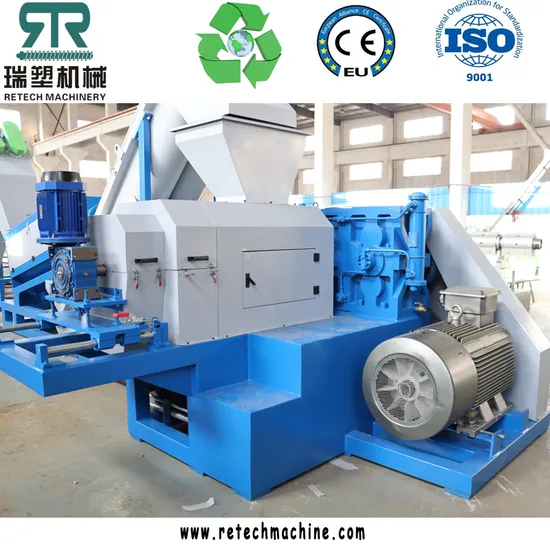

Our Plastic PP PE Film Squeezing Machine is used for drying those washed LDPE LLDPE film, PP woven bags.etc. And make it like granules.
It is a full automatic Squeezing & Compacting & Pelletizing Machine to the film and woven bags, with the screw squeezing and electrical heating, make the materials have high degree of drying and full plasticizing, low power consumption, high output. The final moisture is only 3-5%. The capacity would be customized according to the requests of clients.
Our plastic film squeezer is used for squeeze and re-pelletizing PP/PE film, woven bag, ton bags, nylon etc. it's equipped with advanced screw extrusion system, squeezing efficiency could reach 95%. Also can work on the accordance with washing and pelletizing line with stable capacity and whole process automation.
Detailed Photos
(1) Gearbox:
We use heavy duty type D series gearbox to make sure the enough powerful when processing high pressure film.
(2). Screw & Barrel
All of the screw and barrel we use good quality material 38CrMoA1A, with nitriding treatment to improve it's tolerance and toughness.
(3) The heating and cutting system: The cutting system working with speed control by inverter, the die head with water cooling system.
Product Parameters

1	Motor Power	75-90kw	90-110kw	132-160kw	200kw
2	Screw Diameter	250mm	300mm	320mm	380mm
3	Cutting Power	2.2kw	3kw	5.5kw	7.5kw
4	Screw Material	38CrMoA1A,Nitrogen treatment
5	Heating Power	9kw	12kw	15kw	18kw
6	Moisture	Less than 3%
7	Capacity	200-300kg/h	400-500kg/h	600-800kg/h	1000kg/h

Certifications

Our Advantages
Advantages of RETECH PP PE film squeezing dryer machine:
1. Unique screw squeezing design removing moisture theory, solving the common problem that it is hard to dry the wet film during the plastic film drying recycling field.
2. Good drying performance, could make the final moisture level lower than 3%.
3. Advantage technology, lower power consumption, lower noisy, easy operating and maintenance, safe running and high cost performance.
4. Mechanical squeezing dewatering way, comparing with the traditional centrifugal and hot air drying dewatering way, could save space and energy much more.
