Lab Sized Yarn Dyeing Machine Suitable For Dyeing Sized Yarn fabric

Product Description

Product Description

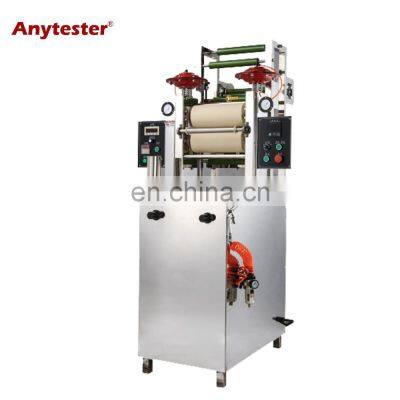

Product DescriptionAT293 Lab Sized Yarn Dyeing Machine is a mini dyeing machine used in lab to make a sample. It is suitable for dyeing sized yarn, jeans or fabric. It simulates the dyeing process on the sizing and dyeing site. Sized yarn passes the dye bath with temperature controller, via padder, deviation rectifying and manual tension frame, and then comes back to the dye bath again. Circulate the sized yarn for set time and then alarm at the end of dyeing.SpecificationModelAT293Dye bath volumeMax. 8LFeeding trough volumeMax. 500mlHeat power2Kw, automatic temperature controlPadder Type: VerticalRoll length: 300mmRoll diameter: 127mmRoll hardness: Shore 70°Roll material: NBRAir pressure: 0.03~0.6Mpa, adjustableLarge-section thin-film air cylinder, strong resistance to friction, automatic restoration when out of power and no left-right deviationDriving power0.37KwMachine speed0.4~4m/min, frequency controlFabric loop length required4.25mGuiding rollGood quality stainless steel with Teflon coatingControl displayPower display, speed display, display of counting, temperature display and alarm devicePower supplyAC220V 50Hz, single-phase, 2.5KwDimensions920mm×1030mm×1750mm (W×D×H)Weight 200kgFeaturesDye BathMaximum volume: 8LFeeding trough volume: maximum 500mlHeating method: electric heatingHeating power: 2KwAutomatic temperature controlPneumatic PadderVertical-typeLower drive roll and upper driven rollNBR roll300mm in length and 127mm in diameter70° Shore hardnessAir pressure 0.03~0.6Mpa, adjustableLarge-section thin-film air cylinder, strong resistance to friction and no left-right deviationVentilating FrameWith manual tension frame With deviation rectifyingStainless steel guide rolls with Teflon coatingConvenient and easy to cleanPacking & DeliveryPackagingSize1200*680*1100mmWeight4kgPackaging DetailsThe normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.PaymentPayment ItemT/TEXW 30% T/T in advance, paid the balance before shipmentFOBCFR(C&F) 30% T/T in advance,paid the balance against copy of B/LCIF30% T/T in advance, paid the balance before shipmentFOBCFR(C&F) 30% T/T in advance,paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 50,000usdDelivery Time7~10 days after receiving payment for one containerOur CompanyHistorySince 1982 with more than 20 years' experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productContacting usERIC QINWebsiteMobile Phone+86 188 5510 5986Whatsapp+86 188 5510 5986Skype eric-qlkWechat+86 188 5510 5986
