Jingwei Brand Jwm-SIM-07 High Quality High Capacity Two for One Twister Machine

Product Description

JINGWEI Brand high quality high capacity Two for One Twister machine
Product Description

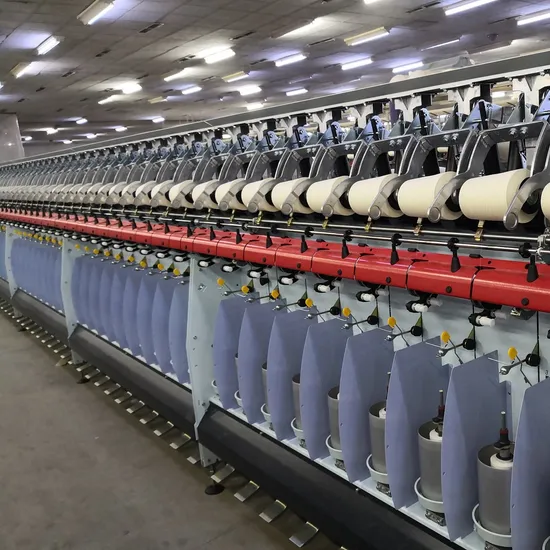

JWM-SIM-07 TWO-FOR-ONE TWISTER is a new type of machine developed and manufactured by our company based on the experience of autolevelling equipment of customers in many countries in recent years. This machine is high-efficiency and energy saving, with output speed up to 11000r/min, Controlled by PLC,3 independent motors are runningwith constant speed ratio(the TPM eveness),both duringnormal running conditions and start/stop phases.
Product Parameters
High quality of yarn thanks to high quality of spindle
- The surface of all the parts in direct contact with yarnis special surface treated to give the yarn the max.effective protection
- Minimized vibration thanks to damped spindle potmountins on rotary parts
- Life lubricated pot bearings with special dustproofprotection.
- Pneumatic threading system for quick threading withself-cleaning yarn path.
- Convenient adjustment of tension device suitable forall kinds of yarn
- Twisting area is separated with drive area.
- e-save spindle series
The yarn feelers are automatically locked in theirworking position .it prevents the feelers droppingwhen the machine is stopped.
Surface treatment
All elements in direct contact with the yarnfeature a high-grade surface finish foroptimum yarn protection.
- Flyer, tension device,capsule
- Spindle inner path
- Balloon guide, yarn feeler
- Over feed roller, deflection roller
- Traverse guide
- Balloon limito
Air Threading device
Threading device ensures rapid and faultless threading every time.the foot pedal stops the spinde.asthe pedal is pressed down further. It's carried by the airstream up and around the spindle pot whereit can easily be grasped by the operator.
Speed sensor
The speed sensor can detect yarn breakage and rotational speed,to aviod qualityproblem of spindle speed deviation.choose this sensor ,we can get precise production.
Tail device
The function of the tail on the twisted packagetube is automaticThe length of the tail can becentrally adjusted.
Installation Instructions
