Aoda ASTM D4402 High Temperature Viscometer for Asphalt Viscocity Test

Product Description

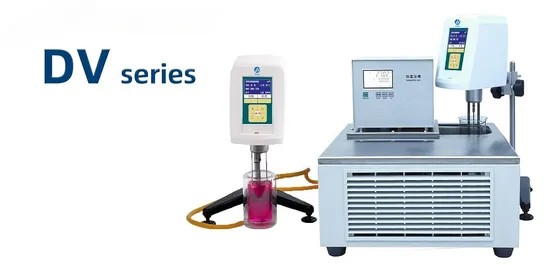

AODA ASTM D4402 High temperature Viscometer for asphalt viscocity test The DV series rotational viscometer is a mid-range model in viscometer products, equipped with an ultra-high resolution LCD screen that displays clear and concise content. It has strong expandability, wide application, and convenient operation.
The DV series viscometer has a wide range of range options, from 1 to 320 million mPa. s, and this series of models has a rich selection of extended measurement accessories to meet the measurement needs of different users. Excellent hardware performance provides you with a high-precision, fast response value, and excellent repeatability user experience.
Application
Rotational viscometers are used in coatings, daily chemicals, pharmaceuticals, food, petroleum industry, inks, electronics industry (solder paste, silver paste), composite materials (resins and molding), lubricants, adhesives, asphalt, ceramics, textiles, blood, water-coal slurry, and others (chemicals, biology, papermaking, glass, gelatin, thickeners), etc.
Features
Main functions of DV Rotational Viscometer
. Measure the dynamic viscosity of fluids using cylindrical or disc-shaped rotors
. Measure the viscosity of fluids with very small sample volumes using the Small Sample Adapter (SSR)
. Measure the viscosity of low-viscosity fluids using the Ultra Low Viscosity Adapter (ULR)*
. Customize the end measurement conditions in multiple modes
. Monitor and manage measurement data using dedicated host software*
The functions marked with "*" are optional on some models. Please contact customer service for details.
Main features of DV rotational viscometer
The measuring range can reach 1~320.000.000 mPa.s* Equipped with ultra-high resolution LCD screen, the display content is clear and rich. Thanks to the excellent spring sensor, the measurement accuracy can reach ±1% full scale, and the repeatability is ±0.3% full scale Super rich speed adjustment gears: DV1 type has a total of 37 adjustable speeds DV2 type has a total of 58 adjustable speeds Rich display content: dynamic viscosity, temperature (graph), shear rate, shear stress, torque, full-scale measurement range, end conditions, etc. High torque, low noise stepper motor drive system High-sensitivity front level, more convenient observation Built-in multiple commonly used viscosity units can be switched for display Rich expansion interfaces and accessories: high-precision temperature probe, viscometer dedicated constant temperature bath, constant temperature cup, micro printer, standard viscosity liquid, etc. to improve the measurement adaptability of the instrument Specification

DV series Rotational Viscometer
Model	DV-2
	LVDV-2	RVDV-2	HADV-2	HBDV-2
Measuring range(Mpa·s)	1~6M	100~40M	200~80M	800~320M
Rotation speed(rpm)	0.1,0.3,0.5,0.6,1,1.5,2,2.5,3,4,5,6,7,8,9,10,12,14,15,16,18,20,25,30,35,40,45,50,55, 60,65,70,75,80,85,90,95,100,105,110,115,120,125,130,135,140,145,150,155,160,165,170,175, 180,185,190,195,200
Rotors	L1~L4	R2~R7
Sample capacity(ml)	300~400	500
Software	Y
Temperature probe	Y
Measuring error	±1%(full scale)
Repeatability error	±0.3%
Data display	Viscosity, spindle, speed, torque%, time, temperature, shear rate, shear stress
Stop mode	Manual / Automatic
External size	300x300x450mm(L*W*H)
Net weight	5kg
Power supply	AC100~230V; DC12V2A

Detailed Photos
Packaging & Shipping
Company Profile
FAQ
Q : What products can you offer?
A : We are a one-stop laboratory instrument supplier that can provide customers with products and solutions according to their needs.
Q : How long is your usual delivery time?
A : Our products are usually shipped out 5-7 days after receiving payment.
Q : What transportation methods do you support?
A : We support express delivery (DHL/FEDEX/UPS/TNT), trucks, trains, planes, and ships.
Q : What trade methods can you accept?
A : We support EXW, FCA, FOB, CFR, CPT etc
