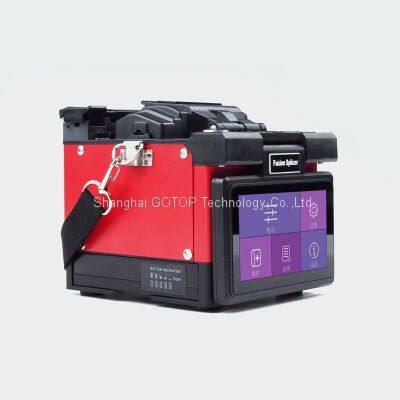

GTF-16S FTTH Fusion Splicer
Product Details
Product Details
Product Description
Product Description| 1. Applicable fibers | SM(ITU-T G.652&T G.657) / MM(ITU-T G.651) / DS(ITU- T G.653) / NZDS(ITU-T G.655) |
| Cladding diameter | 80 μm - 150 μm |
| Coating diameter | 160 μm - 190 μm |
| Typical splice loss | 0.02dB(SM) / 0.01dB(MM) / 0.04dB(DS) / 0.04dB(NZDS) / 0.02dB(G.657) |
| Return loss | > 60dB |
| Fiber cleave length | 5 - 16 mm (Coating Diameter<250μm) 16mm (Coating Diameter:250μm-1000μm) |
| Splicing program | 40 groups |
| Operate mode | Auto/Manual |
| Auto heating | Available |
| Typical splicing time | 7 seconds |
| Typical heating time | 26 seconds |
| Fiber magnification | 250 X(X or Y view);125X(X and Y view) |
| Display Screen | 4.3 inch color LCD monitor, touch screen |
| Records storage | 4000 results |
| Loss evaluation | Available |
| Tension test | 1.2~2.2N |
| Interface | GUI menu interface, easy for operation |
| Battery | 5800 mAh and pluggable li-battery, typical 240 cycles |
| Power supply | AC Input 100-240V, DC Input 11-13.5V |
| Electrodes life | More than 4000 times |
| Terminal | 4. USB interface for software updating and data records downloading |
| Operation conditions | Altitude 0~5000m above sea level, Humidity 0~95%RH, -10~50°C, Wind 15m/s Humidity |
| Dimension | 135H x 120W x 150D |
| Weight | 1.65kg(including battery) |
