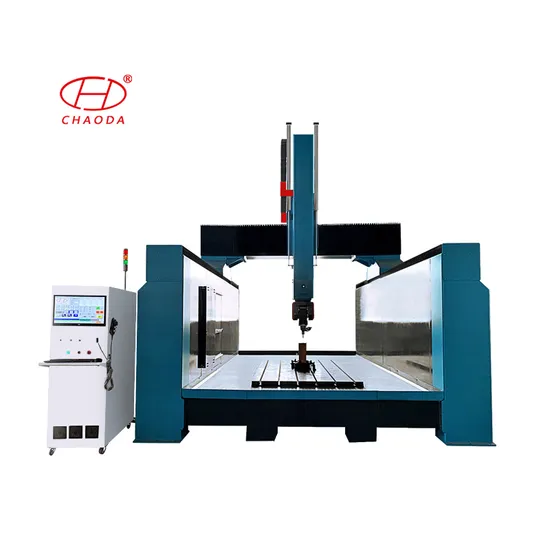

3D 4D Sculptures Statues CNC Machining and Milling Machine 5axis

3D 4D Sculptures Statues CNC Machining and Milling Machine 5axis

US$100.00 1 Set (MOQ)

Basic Info.

Model NO.
JC1325-5AXIS
Automation
Automatic
Control
CNC
Motor Power
High Power
Engraving Head Speed Adjustability
Non-Adjustable
Certification
CE, ISO
Application
Stone Industry
Customized
Customized
Name
CNC Machining and Milling Machine
Structure
Thick Steel Wall Structure
Table
T Slot ; Vacuum
Working Area
1300X2500X1500mm
Spindle Power
9/10/15kw
Driving System
Servo Motor and Driver
Inverter
Delta
Control System
Syntec; Osai; Weihong
Lubrication System
Automatic
Option
Rotary Device
Transport Package
Wood Case with Steel Frame
Specification
1300*2500
Trademark
CHAODA
Origin
Shandong, China
HS Code
8464909000
Production Capacity
200set/Month

Product Description

3D 4D Sculptures Statues Cnc Machining and Milling Machine 5Axis
All machine parts adopt high configuration and top quality from all over the world, to make machine with high performance and durability. Heavy duty steel wall structure, keep machine with very good stability. Adopt disk/linear type automatic tool changer with 8 tools magazine, spindle change tools automatically,no need manual work. High z axis design, suitable for large scale three dimensional surfaces machining.
Model No. JC1325-5AXIS
X,Y,Z,A,C working size 1300*2500*1500mm* ±120°* ±245°
Whole structure heavy duty steel wall structure
Table surface T-slot with clamps (option: vacuum table)
Spindle 10KW ATC spindle, cooled by liquid
Tool magazine Disk type automatic tool changer, with 8pcs tool magazine
Driving system Japan YASKAWA servo motor and driver
Inverter Delta
Operating system 5 axis Syntec (option:OSAI)
Operation language G code
Working voltage AC380V, 3-phase, 50Hz
Running environment Temperature: 0ºC-45ºC; Relative humidity:30%-75%

It can process many materials,like stone eps foam,woods, MDF, Composite boards, Alucobond,PVC, Rigid plastics,polyester,
fiberglass, Acrylic,Organic glass, Aluminum,etc.

1. Sample testing before shipment 2. Provide 2 days free training for each machine 3. 12 months warranty for each machine 4. Friendly English version manual and operation videos for studying 5. Free technical support by phone,email,chatting or remote 6. Engineers available to service machinery overseas
