Full Automatic Jumbo Roll Paper Making Machine

Full Automatic Jumbo Roll Paper Making Machine

Negotiable 1 SET (MOQ)

Basic Info.

Model NO.
JY-JRS
Certification
CE, ISO 9001:2000, ISO 9001:2008, SGS
Condition
New
Control
Automatic
Toilet Paper Type
With Core
Function
Multi-Function
Jumbo Roll Max Width
2800mm
Jumbo Roll Diameter
1100mm(Can Be Ordered)
Jumbo Roll Inner Diameter
3 Inch
Finished Products Diameter
Max 1100mm
Totel Power
About 5.5kw
Unwinding Transmission
Variable Stepless Speed Regulation
Weight
About 3t
Production Speed
150-250m/Min
Color
Optional
Transport Package
Wooden Cases
Specification
5800*2800*2100mm
Trademark
Jingyi
Origin
China
HS Code
84418090
Production Capacity
200 Sets Per Year

Product Description

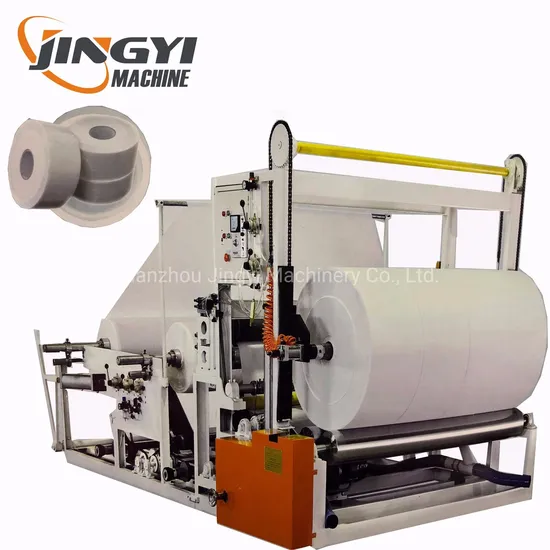

Full Automatic Jumbo Roll Slitting And Rewinding Machine
Outline:
Fully automatic jumbo roll slitter rewinder for jumbo rolls slitting, rewinding. Rewinding and slitting from single layer to two ply, three ply, or four ply different sizes jumbo rolls, used to fold paper towels, napkins, facial tissue and so on. This machine have good mechanical performance, the whole structure is compact and reasonable, comprehensive use pneumatic devices, high-speed stable operation, easy to operate, rewinding and firm, and is an ideal machinery to matching paper mill, and received the unanimous esteem from customers.
Main function characteristics: This machine component by pneumatic to load paper device, paper material transporter, rewinding and rolling system device. Automatic pneumatic paper loading device can convenient send raw material from ground to unwinding unit, dispense with artificially and crane handling. Raw material unwinding system could bring back the rotation of the original volume smoothly, make rewinding paper speed coordinate with rolled paper speed, and can adjust speed of the rewinding paper and paper roll. Using pneumatic core shaft, convenient tube wear before rewinding and put down jumbo paper after rewinding. Main technological parameters:
Max material width 2800mm (other size can be customized)
Max material diameter 1100mm (other size can be customized)
Max rewinding diameter 1100mnm
Processing capacity 150-250m/min
Machine power About 5.5KW
Machine overall dimensions 5800*2800*2100mm (Depends on machine model)
Machine weight About 3T (Depends on machine model)

Our workshop:
The package and shipping:
Contact Us: Quanzhou Jingyi Machinery Co.,ltd
Add: Jiangnan Street,Licheng District, Quanzhou,Fujian
Name: Fiona Hou
