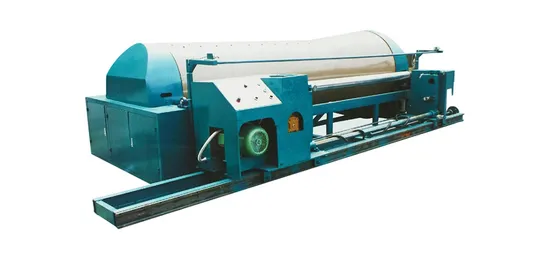

Semi Automatic Sectional Warping Mahicne Warper Drum Type Gear Chnaged

Product Description

Product Description
Machine features
High speed sectional warping machine is designed for flexible production arrangement and high quality weaving requirement. It's preparatory to weaving lines of worsted wool textile, natural silk fabric, filament fabric, special screen cloth, yarn dyed fabric, towel fabric and other special fabrics, can be completed with rapier, gripper, water-jet, air-jet and shuttle-less looms with years' of textile experiences and the latest mechanical and electric technologies.
Main Technical Specification
1. The machine is with high-strength steel structure frame, which make the machine more stable, easier for installation and can prolong the service life.
2. The big round roller is also made from high-strength steel which broke the traditional wood frame roller. The big steel roller is more suitable for large yarn package and can highly increase the warping tension.
3. The product is equipped with advanced electrical control system. The speed control motor is the main power of warping and down-shaft. Also it's equipped with reliable and sensitive brake rigging, which make the warping more convenient.
Machine installation and commissioning
This machine was semi-finished before delivery, please assemble all the parts together before starting work. To ensure the stability of the machine, please install all the foot screws and do the horizontal correction for every direction when install the machine. The acceptance tolerance value of horizontal correction is ±0.1mm/100mm
Product Parameters

Specifications of sectional warping machine
Warping and Beaming machine
1	Work width	1900~3200mm
2	Beam diameter	600mm,800mm
3	Warping Speed	400m/min can be adjusted step-less
4	Beaming speed	100m/min can be adjusted step-less
5	Creel speed	0.467~2.29mm/drum 18 grades adjustable
6	Stub Axle Height	30~200 adjustable
7	power	Warping 3KW Beaming:7.5KW
8	Load/drop beam	automatic air press, load/drop beam device
9	Warping Machine Frame	welded steel bar
10	Drum	Steel
11	LED Display	Eview colorful touch screen
Pneumatic reed
1	Frame	welded steel bar
2	Reed	special stainless steel reed
3	Splitter plate	alumina ceramics
Creel
1	Type	rotary, H Type
2	Pitch	Customized
3	Layer	8
4	automatic stop device	infrared automatic stop
5	spindles	600
6	Tension device	Ring type
