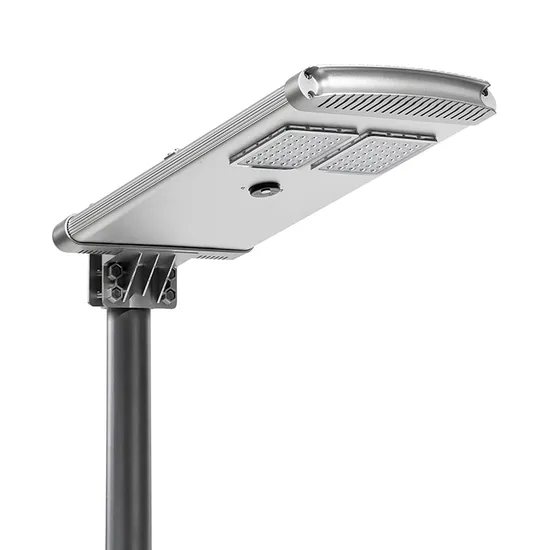

Solar LED Street Light Outdoor Integrated All in One Lamp
Basic Info.
Model NO.
SX-YTHLD-01
Light Type
Solar
Color Temperature
Warm White
Power
≥30W
Technics
Painted Matte
Illumination Time
8h
Cell Type
Ni-MH Battery
Charging Time (H)
6
Usage
Garden, Street
IP Rating
IP65
Certification
CE, RoHS
Voltage
12/24V
With Light Source
With Light Source
Height
5-15m
Flange
400*400
Tc
3500-6000k
Material
Aluminum Stainless Steel
Guarantee
3-5years
Apply
Street, Road
Transport Package
Canrton or as Customer′s Request
Specification
CE, SGS, CQC, ISO9001
Trademark
xinyao
Origin
Jiangsu, Yangzhou
HS Code
940540900
Production Capacity
3000/Month
Packaging & Delivery
Package Size
114.00cm * 16.00cm * 44.00cm
Package Gross Weight
14.500kg
Product Description
Product Description| Jiangsu Shixin Electric Group Co.,Ltd All In One Solar Street Light(SX-FX) | ||||||||||||||
| Type | Pictures | Specification | Unit Price(EXW USD) | |||||||||||
| SX-FX-40W | Features: 1..High class Integrated die-casting Aluminum alloy case . 2.Lighting mode use intelligence radar senor,sensor long distance. 3.140° view angle,lighting more area. 4..Easy to install,maintance,Auto on/off 5.With remote control,UVA technology,bring high corrosion resistance,30m remote control operation,4 lighting mode. | Sample | * | 100+pcs | * | |||||||||
| LED | 40WBridgelux chips3030(Life time 100000hours) | Lighting Mode | ||||||||||||
| Lumen(LM) | 170LM/W | |||||||||||||
| Colour Tempreture | 6000K ~6500K(it can be customized) | |||||||||||||
| LifePO4 Battery | 15AH 12.8V | |||||||||||||
| Solar Panel | 18V60WImported High Efficiency Monocrystalline Silicon | |||||||||||||
| Install Pole diameter | 70-76mm | |||||||||||||
| Mounting Height | 6~7m (Suggest install between space20-25m) | |||||||||||||
| Solar Charging Time | 6 hours by bright sunlight | |||||||||||||
| Cloudy/Rainy days | 12 Cloudy/Rainy days | |||||||||||||
| Material | High Class Aluminum | Packing: LED Lamp Packing Size:920*160*450MM Q'ty/ctn:1Set G.W:12.2KG Packs Containers: 20GP:420Sets 40GP:860Sets 40HP:1030Sets | ||||||||||||
| Product Size | 850*385*108mm | |||||||||||||
| LED Lamp | 96PCS | |||||||||||||
| Motion sensor | Yes(Microwave Sensor) | |||||||||||||
| Remote Control | Yes(1pc remote control per lot) | |||||||||||||
| Waterproof | IP66 | |||||||||||||
| Working Tempreture | -25ºC to 65ºC | |||||||||||||
| Certificates | CE,ROHS,IP66 | |||||||||||||
| Warranty | 3Years | |||||||||||||
Features
lighting source:LED
Solar panel:Monocrystalline or polycrystalline,10years life time
Storage battery:high efficiency colloid battery,free maintenance
Service life:5years
Controller:time control and light control,preventing from overcharge and overdischarge,having output short circuit protection.
Ambient temperature:-30~+60
Lighting time :subject to exact configuration power,normal over 8hours.
Height:5m-8m
Solar energy light brief introduction
1.Using the microcomputer intellective controller to transfer the light energy to electrical energy .Easy to install since no wiring & trenching,energy conservation and environmental protection
2.The microcomputer intellective controller is composed by advanced special-purpose integrated circuit,high conversion efficiency,prevent over-load &over-discharge,Output short circuit protection,extend work life, on the safe side,convenient usage.
3.High effective Non-maintaining accumulator cell,strong storage,durable usage.
4.Automatic track type time controller,Automatically adjust the working time along with different illumination time in various seasons.For extending the work time energy conservation intellective controller will automatic shut-off the light at Deep-night.
