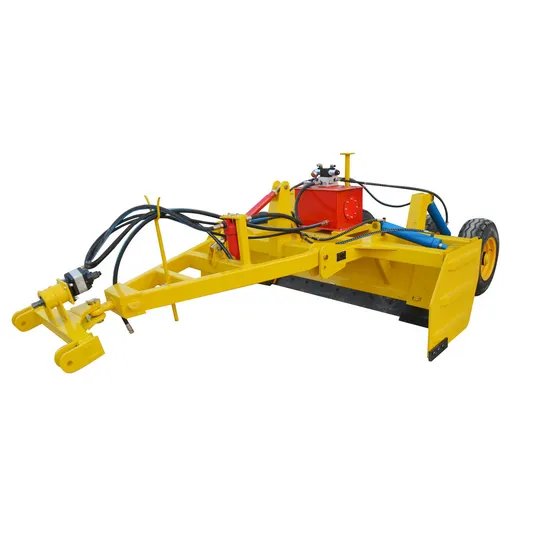

3m and 4m Telescopic Farmland Leveler for Agricultural Use

Product Description

Products Description
SHUOXIN 12PW Land Leveller Series
SHUOXIN 12PW Land Leveller Series are produced with for Big tractors,
The Shuoxin Land Leveler uses a guided GPS signal to level agricultural land precisely and accurately.
This advanced technology results in better agronomic practices, higher crop yields, efficient crop management, and water conservation, making it an essential tool in modern farming practices for achieving optimal soil conditions.
Benefits and features What is Land Leveler and its uses?

A Land Leveler is a precision tool that uses a GPS signal to level uneven fields. The GPS signal is emitted from the transmitter and sweeps across the field, creating a virtual plane of light.

The receiver mounted on the leveling bucket detects the GPS reference plane's position and sends signals to the control box. The control panel then interprets the signals and opens or closes the hydraulic control valve, which raises or lowers the bucket to achieve a desired grade.

This advanced technology enables the machine to smooth out the surface of the field to its average height with a desired degree of slope, resulting in better agronomic practices, higher crop yields, efficient crop management, and water conservation.
12PW-4.0

12PW-3.0A

12PW-2.8/3.5

12PW-2.5/3.2

12PW-2.5

12PW-1.5/2.2

Details Images
Benefits of Using Land Leveler The Land Leveler has several features that make it an excellent choice for land levelling.
One of the most significant advantages of using a Land Leveler is the reduction in water usage. With precise land levelling, water can be evenly distributed across the field, reducing the need for excessive water. Uneven fields can cause waterlogging, leading to weed growth.

GPS land levelling ensures uniform moisture and eliminates the weed problem. Precise land levelling leads to uniform crop growth, maturity, and yield.

Using GLS land levelling technology can save water by 30%, reducing water wastage and conserving resources. It controls the ridge of the field, maximizing land utilization by saving 3% to 5% of the land.

By increasing the flatness, GPS land levelling decreases the loss of fertilizer and increases the rate of utilization of fertilizer to 20%, ensuring better seedling emergence efficiency. Every unit area increases the production by 20% to 30%, leading to higher yields and profits.

Using the technology could decrease the production cost of rice, wheat, soybean, cotton, and corn by 6.3% to 15.4%, saving money and increasing efficiency.
GPS Receiver

Control system

Components of the Shuoxin GPS Land Leveller include: GPS Base Station: Mounted on a tripod, this component allows the GPS signal to located the actual height about the machine in the field.
GPS Receiver: This Omnidirectional receiver detects the position of the GPS height position signals to the control box. It is mounted on a manual/hydraulic mast attached to the drag bucket.

Control Panel: This box accepts and processes signals from the GPS receiver, displaying the position of the drag bucket relative to the finished grade. The control box has three switches, On/Off, Auto/Manual, and Manual Raise/Lower, and provides electrical output for driving
the hydraulic valve when set to automatic.

Hydraulic Control System: The tractor's hydraulic system supplies oil to raise and lower the leveling bucket. A pressure relief valve returns excess oil to the tractor reservoir. The solenoid control valve controls the flow of oil to the hydraulic ram that raises and lowers the bucket.

Drag Bucket: The leveling bucket can be either a 3-point linkage mounted with the tractor. It is used to scoop soil from high areas and deposit it into low areas. The cutting blade is set slightly above ground level (1-2 cm).

All of these components work together to create an efficient and accurate leveling process. The GPS transmitter and receiver establish a reference plane for the drag bucket to follow, while the hydraulic control system allows for precise raising and lowering of the bucket as it moves across the field. The control panel provides the operator with a clear picture of the bucket's position relative to the finished grade and enables adjustments to be made as
necessary. The Shuoxin GPS Land Leveller is a comprehensive system designed to help farmers level their land with ease and precision.
Hydraulic Control System

Heavy Duty Wheel

Easy to Use Land Leveler The Land Leveler is easy to operate, with a control panel mounted on the tractor within easy reach of the operator.
The three control box switches are On / Off, Auto/ Manual, and Manual Raise/ Lower, which allows the operator to manually raise or lower the drag bucket as needed.

The leveling bucket can be either a 3-point linkage mounted with the tractor, providing flexibility and ease of use.
Control Panel

Hydraulic Cylinders

Product Paramenters

Model	12PW-4.0	12PW-3.0A	12PW-2.8/3.5	12PW-2.5/3.2	12PW-2.5	12PW-1.5/2.2
Working Width	4	3	3.5	3.2	2.5	2.2
CONTROL MODE	STATELLITE CONTROL	STATELLITE CONTROL	STATELLITE CONTROL	STATELLITE CONTROL	STATELLITE CONTROL	STATELLITE CONTROL
LEVELLING SHOVEL TYPE	CAMBER BEAM ADJUSTABLE	CAMBER BEAM FIXED	STRAIGHT SHOVEL	STRAIGHT SHOVEL	STRAIGHT SHOVEL	STRAIGHT SHOVEL
TYRE SIZE	10.0/75-15.3	31/15.5-15	10.0/75-15.3	10.5/75-15.3	10.0/75-15.3	23*8.50/12
matched power	154.4-180.5	102.9-154.4	102.9-154.4	102.9-154.4	80.4-102.9	50.4-80.9
working rate ha	0.533333333	0.33	0.4	0.33	0.266666667	0.233333333
Size	4800*2650*1700	4300*3120*1650	4000*2930*1350	4000*2614*1350	4000*2610*1350	2650*1600*1320
weight	2600	1980	1480	1440	1150	1150

Our Advantages
Advantages of SHUOXIN 12PW Land Leveller

GPS technology: High precision GPS positioning can ensure the absolute level of the ground

Precision leveling: Achieves a uniform land surface with accurate slope and height for optimized crop growth.

Water-saving: Reduces the amount of water required for land preparation, saving up to 30% of water usage.

Weed control: Reduces weed problems in the field.

Uniform moisture: Provides uniform moisture to the crops, ensuring uniform maturity and yield.

Land-saving: Controls the ridge of the field, which saves 3% to 5% of land.

Fertilizer efficiency: Increases the rate of utilization of fertilizer up to 20%, reducing fertilizer loss and increasing seedling emergence efficiency.

Increased production: Increases production by 20% to 30% per unit area.

Cost-effective: Decreases the production cost of rice, wheat, soybean, cotton, and corn by 6.3% to 15.4%.

Saves time and effort: Provides quick and efficient leveling of the land surface, reducing manual labor and time required for land preparation.
