Professional Manufacture Compact Solar Energy Hot Water Heater

Professional Manufacture Compact Solar Energy Hot Water Heater

US$90.00
1-4 Set
US$85.00
5+ Set

Basic Info.

Model NO.
TX-NP-100L
Max. Capacity
>200L
Structure
Compact Type
Pressure
Unpressurized
Interior Material
Stainless Steel
Collector Components
Glass Vacuum Tube
Composition
Collector
Certification
ISO9001, CCC
Transport Package
Cartons
Specification
100L
Trademark
Tianxu or OEM
Origin
China
HS Code
841919
Production Capacity
100000 Sets/Month

Product Description

Product Description

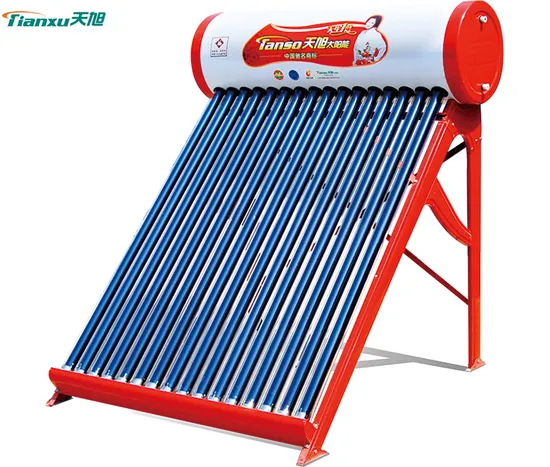

Non pressurized solar water hater is a cost-effective system for residential hot water applications. This system is designed according to thermosiphon principle and operating with proportion deference between cold water and hot water. The water heated by vacuum tube is held in the storage tank where the insulation preserves the heat.
Product Process
Product Parameters
Series(standard) LP-100L LP-200L LP-300L
General info Rated operating pressure Mpa 0.06 0.06 0.06
Gross surface area M2 1.44 2.69 4.42
Aperture area M2 0.92 1.62 2.7
Installation dimensions(L*W*H) Mm 1053*1976*1342 1883*1976*1342 2713*1976*1342
Water tank Tank dimensions Mm φ472*1503 φ472*1883 φ472*2713
Tank weight Kg 19 30 40
Insulation of tank Material/mm Polyrurethane/45 Polyrurethane/45 Polyrurethane/45
Material inner tank Material Stainless steel SUS304-2B
Diameter/Thickness inner tank mm φ380/0.5
Material outer tank Material White painted steel
Diamter/thickness inner tank Mm φ472/0.4
Tube Type of vacuum tubes φ58*1800mm vacuum tube
Evacuated tubes No. 10 20 30
Bracket Bracket Material/color Aluminum alloy/silver white
Bracket inclination Degree 30
Weight kg 6 9.5 11.5
Others Electric heating Provision of electric heating and anode protection
Remarks
Inner tank Stainless steel SUS304-0.5mm
Outer tank Galvanized steel-1.5mm
Insulation Polyurethane
Solar heat storage tank diameter(mm) 360/460
Thickness,insulated(mm) 50
Vent connection(inch) 3/4
Electric heater connection(inch) 1
Water connection(inch) 3/4
Company Profile
Since its establishment in 2002, Shandong Longguang Tianxu Solar Energy Co., Ltd (hereinafter referred to as "Tianxu") has always engaged itself in the R&D, production, sales and service of high borosilicate glass tubes and new energy products including solar water heaters, solar vacuum tubes, solar heat collecting project, air source heat pump, photovoltaic products, etc. Tianxu has 10 sets of electric furnaces, 70 sets of solar vacuum tube production line and 3 sets of solar water heater production lines. The annual output has reached one million tons of high borosilicate glass, over 16 million solar vacuum tubes makes Tianxu the largest manufacturing base of high borosilicate glass tubes and solar vacuum tubes. In 2015, Tianxu established a joint venture company with Beijing Tsinghua Solar Co., Ltd- the solar vacuum tube technology initiator in the world. The newly established company has the world's most advanced solar vacuum tube production lines.
Our Advantages
1.Cost effective solar water heating solution
2.Long operating life time but low in maintenance costs and repair requirements.
3.Short amortization rate
4.Customized solar water hating solutions.
5.High energy yield and low heat loss due to the high vacuum of the evacuated tubes and PU insulation.
6.High-quality stainless steel in the inner tank to continuously maintain a good water quality.
Packaging & Shipping
Certifications
FAQ
Q:Can you produce as my drawing?
A:Yes,we can produce based on your drawing or sizes.
Q:How about the delivery time?
A:Usually production time is 10-15 days,It will be decided by the quantity of order.
Q:How can we guarantee quality.
A:Always a pre-production sample before mass production.
Q:What can you buy from us?
A:Solar water heaters,solar collectors,solar vacuum tubes,solar accessories,PV Panels,etc.
Q:What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery or 70% irrevocable L/C at sight. We'll show you the photos of the products and packages before you pay the balance.
