Desktop Fanless Industrial PC 4*I211 Gigabit + Msata Expansion Win10/Ubuntu Support 44mm Slim Design

Desktop Fanless Industrial PC 4*I211 Gigabit + Msata Expansion Win10/Ubuntu Support 44mm Slim Design

US$160.00 1 Piece (MOQ)

Basic Info.

Model NO.
R01D44
CPU Type
Intel Core i5
Hard Disk Rack Type
Board Type
Operating Temperature
-20℃ to 60℃
RAM
8GB
Product Name
Firewall Hardware Mini PC Server
Produced by
R&O
Certification
CE, RoHS, FCC, Kc
Memory Types
DDR3l
Operating System
Windows 7/Windows10/Linux
Transport Package
Netural Carton Box
Specification
200mm*175mm*44mm
Trademark
R&O / OEM optional
Origin
Shenzhen
HS Code
8471504090
Production Capacity
50000 Sets / Month

Product Description

Desktop fanless cooling compact enclosure,High quality galvanized steel
Intel® Celeron J1900/2.0GHz Quad-core processor (J4125 optional)

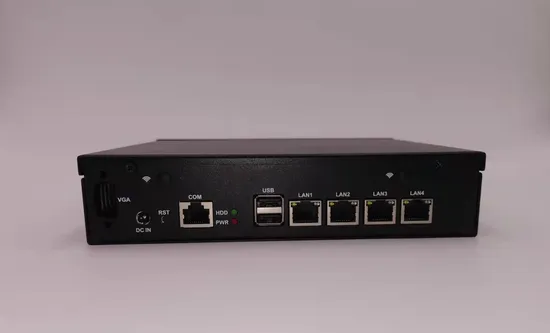

1xVGA+2xUSB2.0+4*Intel I211 Gigabit LAN+ 1*CISCO standard RJ-45 serial port
200mm*175mm*44mm
OEM X86 Intel J1900 / J4125 4 Lan Desktop Fanless Firewall hardware barebone mini pc router Pfsense
Specification
Processor CPU Intel® Celeron J1900 quad-core, 4-thread processor (J4125 optional)
Frequency 2.00GHz~2.42GHz
TDP 10W
Chipset SOC
BIOS 64Mb Flash ROM
RAM RAM DDR3L 1600/1333MHz
Max Capacity 8GB
Slot 1*SODIMM
Display Graphics Intel®HD Graphics
CRT 1*VGA,2560X1600@60Hz
Ethernet LAN1~LAN4 4* Intel i211 Gigabit Ethernet, support Wake On LAN/PXE
Audio Audio N/A
I/O Port COM Port 1*CISCO standard RS232 serial
USB 2* USB2.0
Expansion Mini PCIE N/A
Storage SATA 1*2.5"HDD
MSATA 1* MSATA SSD, transmission rate up to 3Gbps
OS Windows Windows 7/Windows10,64bit(not include OS code)
Linux Ubuntu
Power Supply Power Type External power adaptor
Voltage Input DC 12V 3A
Power Output AC 110V-220V
Structure Structure Fanless cooling structure, high quality galvanized steel
Installation Desktop
Dimension 200mm*175mm*44mm
Environment Working Temp. 0ºC~45ºC
Storage Temp. -20ºC~70ºC
Relative Humidity 5%-95% relative humidity, non-condensing
Working Vibration 0.5g rms/5-500HZ/random/operating

FAQ 1. Do you provide OEM/ODM service?
A: Yes,.We can support OEM/ODM service, the process of customization is following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.

2. What is the Minimum Order Quantity (MOQ)?
A: We can sell one piece sample for your test.
3. What payment method do you use?
A: T/T,PayPal.
4. What is the lead time of your product?
A: 3 days for sample, 15 working days for large quantity.

5. How does your factory do related quality control?
A: Quality is top priority. We firstly check the motherboard quality after manufacturing, secondly check the computer before storage in warehouse and thirdly check before shipping out.
6. What is the warranty time of your product?
A: 1 year warranty for non-artificial damage, for the 2nd to 3rd year we can repair it free, but will charge for the parts that needed to change.
7. Does your motherboard can work 24*7 hours?
Our low power consumption industrial boards have passed very strict tests, there is no problem to work 24*7 hours.
8. Are you a factory or trading company?
A: R&O is a leading R&D and manufacturing technology-innovation enterprise specialized in Industrial Motherboards and embedded products industry.
Our products include: mini-itx motherboard,all-in-one motherboard, 3.5'' industrial motherboard, firewall motherboard, NVR&industrial motherboard, mini PC , HTPC, all-in-one PC, embedded PC, vehicle computers, cloud terminal, networking security, OPS mini PC, NAS storage server, etc.
Computer, OEM / ODM available.

9 If we come to China, can you arrange the visiting to your factory?
A: We warmly welcome and look forward to your visiting to our factory at any time.
Desktop Fanless Industrial PC | 4*I211 Gigabit + MSATA Expansion | Win10/Ubuntu Support 44mm Slim Design
Desktop J1900 J4125 4 Gigabit Ethernet Ports Firewall Appliance, Pfsense Network Appliance
