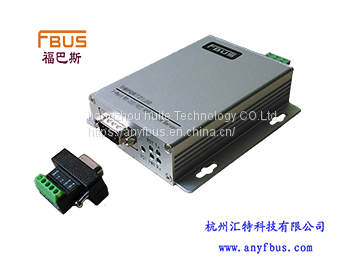

Hangzhou huite Technology FBUS FBPORT2120 1 RS232/485/422 port to network port device transparent transmission 12-48v power supply manufacturer

Product Details

Product Description

Product Description
Model: fbport2120
Selection table of single serial port to Ethernet converter
Product model product name
Fbport2100 1-port RS-232 serial port to Ethernet converter
Fbport2110 1-port RS-422 / 485 serial port to Ethernet converter
Fbport2110i 1-port RS-422 / 485 with 2KV photoelectric isolation serial port to Ethernet converter
Fbport2120 1-port RS-232 / 422 / 485 serial port to Ethernet converter
Fbport2120i 1-port RS-232 / 422 / 485 with 2KV photoelectric isolation serial port to Ethernet converter
Product features:
>Let the serial port device connect to the network immediately
>Quickly configure IP with ARP
>Real com driver supports windows operating system and is easy to use
>Hardware and software flow control of 64 byte FIFO and integrated chip
>Support RS-232 / 422 / 485 interface
>Built in buzzer and RTC (real time clock) alarm
>Support multiple operation modes: including real com, TCP server, TCP client, UDP, etc
>With 10 / 100M adaptive Ethernet network port
Product introduction
Ethernet interface
Rate 10 / 100 Mbps, adaptive MDI / mdix
Interface: RJ45 8-pin
Protection: built-in 1.5kV electromagnetic isolation
Fbport serial interface
Number of interfaces: 1
Serial port type: pin DB9
The serial port linear protection provides 15 kV ESD linear protection for all signals
RS-485 data direction automatic data direction (delay can be set)
Serial port signal RS-232: TXD, RXD, RTs, CTS, DTR, DSR, DCD, GND
RS-422：Tx+、Tx-、Rx+、Rx-、GND
RS-485 (2-wire)：Data+、Data-、GND
RS-485 (4-wire)：Tx+、Tx-、Rx+、Rx-、GND
Serial communication parameters
Check bits none, even, odd, space, mark
Data bits 5,6,7,8
Stop bit 1,1.5,2
Stop bits RTS / CTS, Xon / XOFF, DTR / DSR
Transmission rate: 50 bps to 921.6 kbps
Power linear protection
4 KV Burst (EFT)，EN61000-4-4
2 KV Surge，EN61000-4-5
Advanced built-in functions
Buzzer
Real time clock
Watchdog timer
Soft characteristic
IP、TCP、UDP、DHCP、BOOTP、TELNET、DNS、SNMP、HTTP、SMTP、SNTP、RTELNET、ARP、PPP、RFC2217
Fbport administrator Kit
Windows 2000 / XP / 2003 / Vista / win7 / win8 /win10 real com driver/
Real TTY driver for Linux
Web browser, telnet console or windows utility
You know what?
Input voltage: 12 ~ 48 VDC
Mouth shape
