UV Coating PC/ UPVC Hollow Sheet / Profile / Roof Tile / Extrusion Machine Skylight Roof Sheet Line Polycarbonate Corrugated Roof Production

Product Description

PC Hollow Sheet Extrusion Machine Hot Sell Hangzhou Polytech Hollow Sheet Extrusion Machine
1 POLYTECH DCS remote system control , which make machine more automatic and improve machine efficiency and accuracy. We made more
than 100 system for our customer in past 3 years (covind situation make is popular)
2 POLYTECH supplied more than 1000 PC hollow sheet production machine whole of the world, such as south Asia , middle East
countries, south American, etc
3 POLYTECH cooperate more than 400 countries for different extrusion machine in past 25 years
Product Overview
Products Description

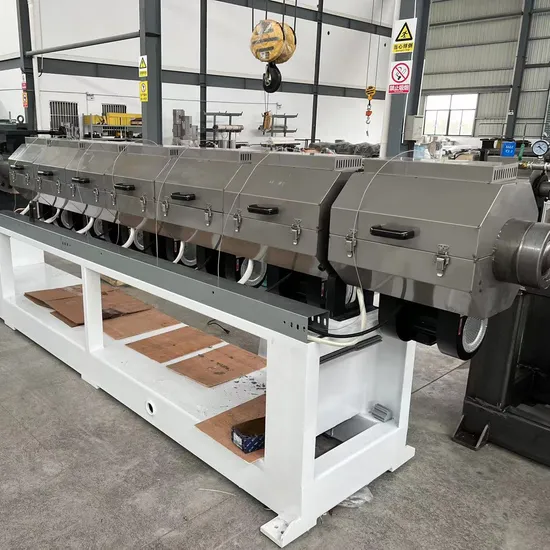

120/30 single screw extruder	Max Output 400kg/h Motor power 132kw DC motor,Siemens Speed inventor ABB Material 38CrMoAlA Surface treatment Nitrided and polished Rotation speed 20~90r/min Material 38CrMoAlA
45/30 single screw extruder For UV coating	Max Output 50kg/h Motor power 15kw AC motor,Siemens Speed inventor ABB Material 38CrMoAlA Surface treatment Nitrided and polished Rotation speed 20~90r/min Material 38CrMoAlA
melt pressure pump	Material of filter plate 38CrMoAl Diameter of filter plate 150mm Change type Hydraulic cylinder Hydraulic station power 2.2KW
hydraulic station	Two station
extrusion T die	Width of mould chasm 800 to 2100mm Max. hatch of mould: producing sheeting with thickness 4 to 10mm
shaping mould calibrating platform	welded structure of the calibrating table, the height can be adjusted the shaping mold can be moved along the rail drive by motor shaping molds are polished and chromated the structure of the shaping mold is the latest design, improved from OPIMA, the surface is sand-spraying treated
5 to 6 group haul off machine	6 pairs pulling rollers, specificationsΦ250*2300mm the close/open of the rollers is pneumatic controlled Driving motor is 7.5KW, the reducer is famous national brand, with the imported "ABB" frequency inverter. Haul-off speed 0-10m/min
oven	Specifications of the oven:2200*5000mm
lamination film device	Two station
two group haul off machine	Haul-off speed 0-10m/min
cutter	the horizontal cutter supported by two adjustable rollers before the knife, and four rollers behind the knife, temperature controlled by OMOR temperature instrument. Effective cutting length:2100mm The horizontal cutting and vertical movement is driven by the AC motor, controlled by the imported "ABB" frequency inverter.

PRODUCT CONFIGURATION
PC SHEET LAMINATION

PC HOLLOW SHEET SHAPING
PC EXTRUDER CONNECTION
SALES AND SERVICE NETWORK
Successful Project
Project in Thailand
Project in Brazil
Project in korea
FAQ
1 How much space needed for this PC hollow sheet extrusion machine line?total electricity power? water consumption? compressor air required ,etc?
The workshop width is better more than 15 to 20 meters, length better more than 50 to60 meters PC hollow sheet extrusion machine.
You need prepare 3 to 5 m3 circulation water. Whole loading power is around 260 to 300kw for one machine line. Then better keep
transfer at least 315KVA. Please prepare one air compressor around 7.5kw. If you have good working condition, also prepare one
water chiller and 5 to 10 ton crane. If you still confuse about workshop arrangement, we can help our customer make workshop
layout, which can help you make sure all of the necessaries. Whole machine line connection will be done from our side. Customer
need prepare his own electricity, circulation water, air, and some other base construction
2 How about your after service? Any representatives in our local or nearby? For example, if machine broken, or we can not get good
finished product, then what can we do?
We have more than 25 years experience for PC hollow sheet extrusion machine. We accumulate much experience both for machine
manufacturing and product making. For domestic market, it is quite easy for us to visit customer if machine has some problems. But
for international market, we start business 17 years before. It is not easy for us to handle at beginning. We will send people to
customer factory for installation and people training. Customer need prepare raw material advanced. And need find some
professional local technician, who can handle PC hollow sheet extrusion machine after my people go back. Normal we guarantee our
machine 12 months. Any non human-factor problem, we will take care and replace them by free. We can do online guidance or on site
service. We cooperate with several team for after service in overseas market, such as India, south American, south Asia, Russia,
and Middle east countries. We train them and they can help us do after service on local or nearby. During virus situation, we
adopt DCS remote control system, which can make machine operation easily. All above can guarantee our fast service for our
international market.
