China Manufacturers Reading IC ID CPU Cards Dynamic Facial Recognition System

Product Description

Product Description

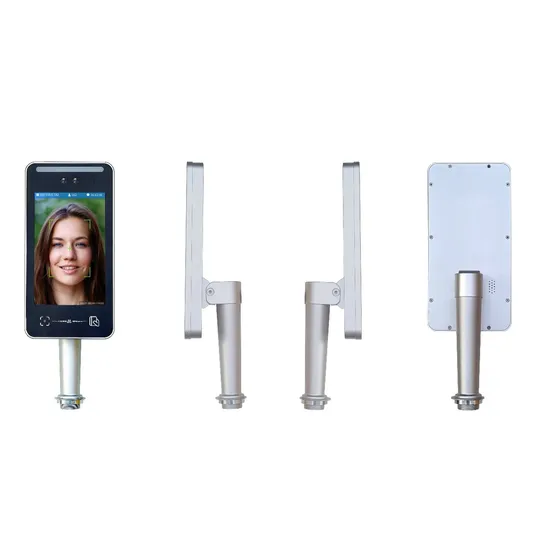

The TJ-Face-18 Pro is a facial recognition tablet (DV350 solution) based on deep learning, using the HiSilicon industrial-grade Linux embedded platform with an integrated neural network processor. Equipped with a 2-megapixel full-HD WDR color camera, it performs well under backlight, low-light, and contrast lighting conditions. It can store up to 200,000 facial templates locally for offline identification and comparison. The device provides a variety of tail cable interfaces and flexible configurations, including options for QR code recognition, built-in card reader (dual-frequency IC+ID), customized embedded CPU cards, 4G communication, Wi-Fi communication, housing platform integration, second-generation ID card reading, and other optional features.
Product Parameters

Basic Parameters
Sensor	1/2.8"Progressive Scan CMOS
Minimum Illumination	0.01Lux@(F1.2,AGC ON)
Shutter	1/100s~1/10000s
Lens	Dual 6mm Sony lenses
Display	8-inch HD IPS Screen(1280*800)
Wide Dynamic Range	Supported
Voice Broadcast	Supported(TTS customizable)
Video
Video Standard	H.264
Bitrate	1024Kbps~4Mbps
Video Resolution	1920(H)×1080(V)
Frame Rate	25fps
Video Settings	Exposure (Shutter),Gain,Contrast,Saturation,Facial Exposure Compensation
Recognition Characteristics
Operating Modes	Online,Offline,Automatic
Recognition Content	Face,optional(QR code,advertisement display,card reading IC+ID)
Recognition Type	1:N
Detection Type	Liveness Detection
Recognition Speed	≤80ms
Recognition Rate	≥99%
Recognition Distance	0.5-2 meters
Face Library	200,000 images
Face Library Import	Single image,batch import,card registration (optional),platform-issued
Snapshot Function
lmage Format	JPEG encoding
Snapshot Result	Full-frame and cropped close-up images
Image Resolution	1920x1080(full-frame),cropped based on actual screen composition
Access Records	Supports up to 200,000 records (with images)per unit.
Mode Classification
Output Modes	Wiegand 26/34/66,Relay
Trigger Methods	Picture,Card,
Development Support	Supports multi-platform (Linux,Arm,Windows),multi-language (Java,C++,C#)
Network CharacteristicS
Supported Protocols	ONVIF,TCP/IP,HTTP,FTP,RS485,GB28181,DNS,NTP,MQTT,WebSocket
General Functions	Heartbeat,Password Protection,NTP Time Synchronization
Working Environment
Power Supply	DC 12V/2A
Power Consumption	≤12W
Working Temperature	-20ºC to+70ºC
Working Humidity	0%-90%(non-condensing)
Waterpro of Level	Outdoor rain-resistant
Protective Measures	Lightning and surge protection
