Automatic Hot-Galvanized Multi-Tier H-Frame Battery Poultry Farming Equipment for Chicken Layer Cage

Product Description

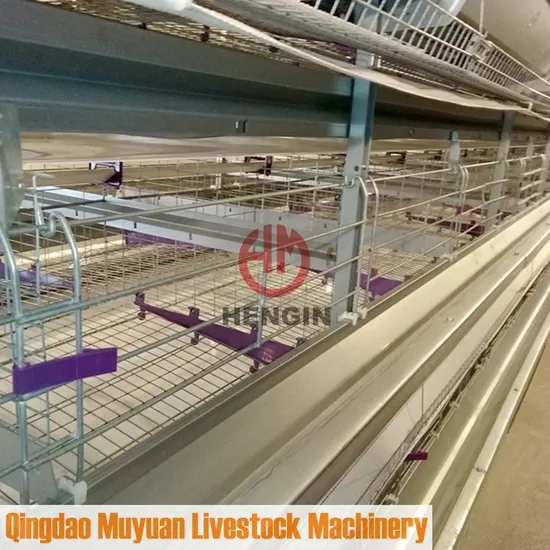

Automatic Hot-Galvanized H Frame Poultry Farm Equipment for Chicken Layer Hen Cage
Products Introduction


1. Products Size

2.products advatage

1.The distance between each legs is 1206mm, the tier height is 640mm, and the width (including feeding troughs) 1560mm. Such cages have larger bearing capacity and the more breeding space, C shape leg is formed of hot dip galvanized sheet is easy to clean.

2.Cage bottom mesh adopt Belgium Bekaert galvanized aluminum wire, has strongcorrsion resistance and self-healing capcity, it more fits for hot and high humid weather. and cage net surface is smooth,to avoid hurting chicken scratch.

3. The material of the steel frame is ZAM sheet , the material strength can reach more than 450Mpa, the galvanized zicn coating is 275g/sqm.

4.Sliding door with lock is convenient to open and close. thus no layers can run away, and feed can not be thrown out of trough when eating.

1)

The distance between each legs is 1206mm, the tier height is 590/640/690mm.
The cage width (including feeding troughs) 1560mm.
2).cage bottom mesh adopt Belgium Bekaert galvanized aluminum wire.


3).

3)The cage bottom adopt Belgium Bekaert galvanized aluminum wire,which advantage is high intensity, good elasticity , the surface is so smooth to reduce the egg breakage.


4). cage bottom angle is 7°,the reasonable rolling angle is designed to reduce the rate of egg breakage .







Factory Introduction

Our factory was founded in 2002 and has more than 800 employees,covers more than 100,000 square meters,is a professional manufacturer of poultry farming equipments including
"H"frame layer cage system,broiler cage system,duck-production cage system, ,egg-duck cage system ,layer rearing cage system,layer breeder parents cage system,feed silo,bulk feed transporting tank and feed machinery etc.


FAQ
Q1:How many types for layer chicken cage?
A1: We have two types, A frame and H frame.
A frame have two models, 3tiers and 4 tiers.
H frame have 7 models , including 3 tiers,4 tiers,5tiers,6tiers,8 tiers ,10 tiers

Q2:How much per set cage?
A2:Different model,price is different.In addition,there are other complement equipments.
Need know how many birds you want to rear,then we can give you a specific price list with house size.

Q3:How long is the warrenty?
A3:1 year.

Q4:Who is in charge of install ?
A4:We will arrange two engineers to your country to guide installation and provide training of full cage system.
