Ck6150V Variable Speed Stepless Metal Horizontal Flat Bed CNC Lathe
| US$10,500.00-16,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CK6150V
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Product Name
Ck6150V Variable Speed Stepless Flat Bed CNC Lathe
Swing Over BedTmm
500
Swing Over Cross Slide
250
Spindle BoreTmm
82
Spindle Nose Type
A2-8
Transport Package
Plywood Case
Trademark
Shenghuan
Origin
China
HS Code
8458110090
Production Capacity
200
Packaging & Delivery
Package Size
295.00cm * 170.00cm * 180.00cm
Package Gross Weight
2900.000kg
Product Description
Ck6150V Variable Speed Stepless Flat Bed CNC Lathe MachineProduct Description
CNC Lathe Use:
Machine can automatically process the inside and outside cylinder surface, cone surface, circular arc surface, end face, such as processing, and also can process the single and multiple threads in metric, inch and other standards.
Technical Specifications:
| SPECIFICATIONS | Units | CK6150V |
| Swing over bed | mm | 500 |
| Swing over cross slide | mm | 250 |
| Distance between centers | mm | 1000/1500/2000 |
| Spindle bore | mm | 82 (Optional 130) |
| Spindle bore taper | - | Metric φ90/1:20 |
| Spindle nose type | - | A2-8(A2-11) |
| Spindle speed steps | - | Stepless |
| Spindle speed range | rpm | 1800 (Optional 800) |
| Turret/tool post | - | Electric 4 position |
| Tool size | mm | 25 x 25 |
| X axis travel | mm | 300 |
| Z axis travel | mm | 1000/1500/2000 |
| X axis rapid traverse | mm/min | 6000 |
| Z axis rapid traverse | mm/min | 10000 |
| Tailstock quill diameter | mm | 75 |
| Tailstock quill taper | - | MT5 |
| Tailstock quill travel | mm | 200 |
| Main spindle motor | kw | 7.5 |
| Coolant pump motor | kw | 0.125 |
| Total rated power | kw | 11 |
| Total rated current | A | 23 |
| Weight for 1000 | kg | 2900 |
| Weight for 1500 | kg | 3300 |
| Weight for 2000 | kg | 3700 |
| Dimension for 1000 | mm | 2950x1700x1800 |
| Dimension for 1500 | mm | 3650x1700x1800 |
| Dimension for 2000 | mm | 4250x1700x1800 |

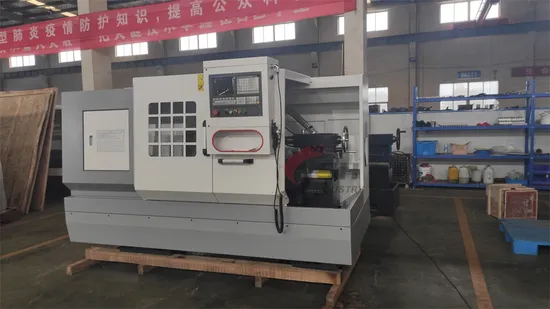

Detailed Photos
Company Profile
Certifications
FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.
