Gear Grinding Machine Circular Saw Blade Tooth Notching Machine

Product Description

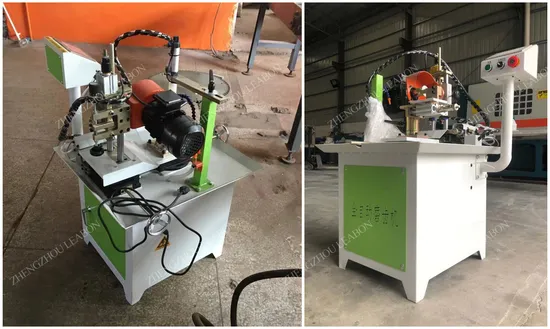

Gear Grinding Machine Circular Saw Blade Tooth Notching Machine
Product Description
Automatic Band Saw Blade Sharpener mainly used to polish and process the tooth flank, the back of tooth, and the throat of tooth of the jugged saw blade. Its size is small-sized, easy to adjust and of simple structure.
Specification of Gear grinding machine

Model	LBFS 700
Sharping saw blade specification diameter	120mm-700mm
Sharping wheel specification	1500mm*10mm*32mm
Tooth saw	40mm
Sharping stroke	40mm
Sharping head swing angle	45°
Total power	550w
Dimensions	600mm*600mm*1500mm

1. The machine is mainly driven by cam mechanism with stable performance. The main components are casted to suppress vibration during operation.
2. Adopt rack inclined bed, easy to clean. Simple operation, low maintenance cost and small footprint.
3. After the knife setting is completed, the grinding is completed with one key, which reduces the labor intensity of workers.
4. The electric control box is simple and convenient for data setting.
Packing and delivery of gear grinding machine
