Haichen Hck110 Ton Electrical Switch Sockets Injection Molding Machine Electrical Switch Sockets Making Machine
Basic Info.
Model NO.
HCK110
Type
Tube Head Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
CE
Oiltank Cubage
200
Injection Rate (G/S)
102 G/S
Weight (Kg)
3600kg
Machine Type
Hydraulic
Min,Mold Height
150
Max Mold Height
380
Injection Pressure
184
Ejector Force(kN)
40kN
Style
Horizontal
Ejector Stroke(mm)
110 mm
Heating Power
6
Video Outgoing-Inspection
Provided
Injection Weight (G)
176 G
Power (Kw)
6.3kw
Max.Pump Pressure
16
Transport Package
Wooden
Specification
HCK110
Trademark
Haichen
Origin
China
HS Code
8477101090
Product Description
Haichen HCK 110 ton electrical switch sockets injection molding machine electrical switch sockets making machineProduct description
We are prefessional production base specialized in designing and manufacturing plastic injection machines and enjoy high reputation in the Plastic machinery industry.

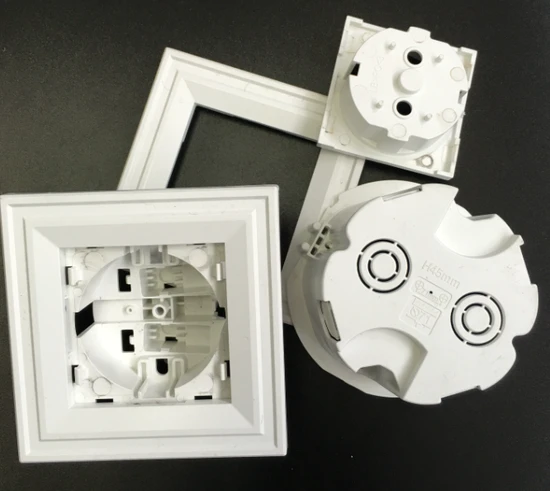

| Picture | Raw material | Weight | Cavity | Cycle time | Injection molding machine | Chiller | Dryer | Autoloader | Crusher | Mixer |
| PC grey | 18.871g | 4 | 20s | 110T | 08ACI | 100kg | 600GN | XFS-230 | 50kg |
The moulds can be costomized.
Technical Parameters
1. Designed by 3D software,structural strength are verified.
2. CNC machine tools for processing, products are of high precision.
3. T slot, threaded holes for mold installation.
4.Hydraulic system with a self sealing oil suction filter and adopted the bypass filter device.
