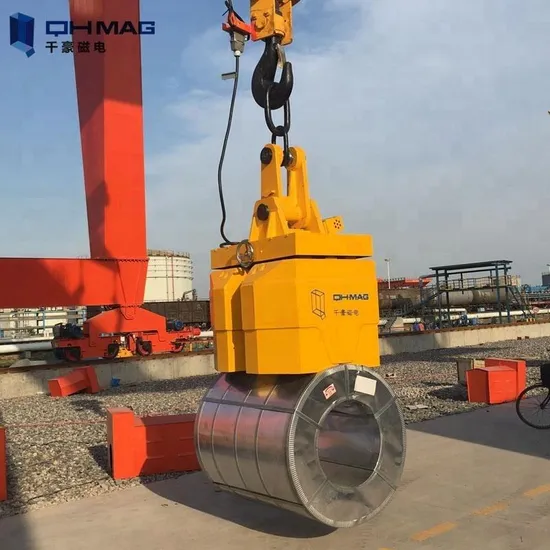

High-Performance New Electro Magnet Steel Strip Lifting Magnet, 20 Tons

Product Description

Experience unparalleled lifting power with our patented hot steel roll coil solenoid large electromagnet. This advanced lifting system, complete with an intuitive LCD remote, redefines efficiency and safety as it tackles the heaviness of steel strip lifting seamlessly.
√ Expertly engineered to support both vertical and horizontal steel roll coils, this magnet is capable of lifting one roll at a time with unmatched precision, ensuring operational fluidity.
√ Boasting a large magnetic permeability depth, our magnet ensures formidable performance with a robust anti-air gap ability, making it an industry leader in reliability.
√ Harness the formidable power of strong magnetic force to securely adsorb roll coil surfaces after activation (MAG), all without risking any damage to your valuable products.
√ Engineered to perfection, this solution eliminates interference with other coils and is versatile enough to support roll coils of various sizes, ensuring adaptability to your specific needs.
√ Proudly holding our own patent certificate, this innovative technology is protected under Patent Number: ZL 2014 2 0076858.1, a testament to our commitment to quality and innovation.
Product Description
What is Electro Permanent Magnetic Technology?
Electro permanent magnet technology leverages electrical power to manipulate the magnetic field lines inherent in permanent magnet materials. This results in a state of magnetic attraction or a demagnetized state. It's a groundbreaking technology allowing materials to be attracted or released autonomously, enhancing efficiency and innovation.
Magnetized State: The electromagnetic coil introduces an instantaneous excitation current, adeptly managing the magnetic field state of reversible magnetic materials. This process forms a robust magnetic field loop on the surface of the magnetic poles, generating exceptional adsorption force. With zero magnetic loss, the system operates silently and efficiently, conserving energy by eliminating heat and noise (as illustrated in Figure 1.1).
Demagnetized State: Following magnetization, a subsequent instantaneous excitation current through the electromagnetic coil reshapes the reversible magnetic field. Consequently, the magnetic field converges internally, neutralizing the surface magnetic field and allowing the material to be released effortlessly (illustrated in Figure 1.2).
About Electro Permanent Magnet
The Electro Permanent Lifting Magnet System epitomizes safety, unaffected by outages or power disruptions. It requires no UPS battery support and operates without needing power during its working phase. The robust and lasting attraction stems from permanent magnetic materials, ensuring absolute safety for adhered materials, which can only be released by operator-controlled demagnetization, thus offering unparalleled security.
Advantages of Electro Permanent Magnets:
1. Economical, Energy-Saving, and Environmentally Friendly
The electric permanent magnet system utilizes power solely during magnetic charging and demagnetization, eliminating energy consumption during operation. With no temperature increase, it conserves over 95% electricity compared to electromagnets, significantly reducing operational costs.
The lightweight design of both the lifting permanent magnet and control system minimizes equipment load, thereby enhancing lifting capacity.
2. High Security
Electro permanent lifting magnets derive their magnetic strength from two distinct permanent magnetic materials, achieving a formidable force up to 16kgf/cm². Requiring no power during operation, they eliminate risks associated with power failures or cable damage, ensuring consistent security over time without degradation.
3. User-Friendly
Electronic controls feature simple charge and demagnetization buttons, optimizing ease of use. Magnetization and demagnetization occur within 0.1-1s, enhancing operational efficiency. The permanent magnet system is maintenance-free, devoid of wearing parts, hydraulic systems, or compressed air, demanding only surface cleanliness for reliability.
Post-demagnetization, the surface magnetic force is nearly nullified, preventing small particles from adhering and averting surface scratching, ensuring pristine adsorption without remnants.
4. Unique, Flexible Product Design
Featuring a one-of-a-kind modular design, dual magnetic source technology, and a novel manufacturing process, the internal structure of the lifting permanent magnet is truly unparalleled.
5. Perfect Function
The Electro Permanent Lifting Magnet System is engineered for safety, impervious to power loss and independent of UPS battery systems. Enduring energy derived from permanent magnetic materials guarantees secure material handling, maintaining magnetism until demagnetization upon landing, offering unrivaled protection to users.
Electro Permanent Lifting Magnet VS Electromagnet

SEQ	Compare Content	Electro Permanent Lifting Magnet	Electromagnet
1	Magnetic	Permanent magnet Material: Reversible magnet steel,	Electricity: Magneticfield generated by Currentthrough the coil
	source	fixed magnet
2	Principle	The magnetic field is turned on or off by an	Power on generated magnetic field, power off no magnetic field
	mechanism	instantaneous current
3	Security	All steel surface, oil&water-proof, no aging issue	Epoxy resin sealed, may occur aging and shedding issue in5
			years later, need repair.
4	Reliability	The suction is constant and does not attenuate over time	Suction is influenced by the heat caused by current, the coil is
			easy aging if use long time.
5	Durability	Permanent magnet no magnetic attenuation, magnetic
	and	module is maintenance-free.	Internal coil aging fast, the UPS battery need to be replaced
	maintenance		regularly, need to preparethe accessories.
6	Operating	Only in the moment of magnetization and	Need long-term electricity power during working, big power
	costs	demagnetization need electricity, no need power	consumption, commonly known

Product Pictures:
Packaging & Shipping
Electro Permanent Magnet System Composition (Standard): Discover the robust and reliable standard composition of our Electro Permanent Magnet System, engineered for superior performance and efficiency in a variety of industrial applications.
1. Electro permanent magnet: This is the indispensable heart of magnetic force, designed for direct contact and seamless adsorption of work materials, ensuring maximum operational efficiency and safety.
The core part of magnetic force is expertly crafted for direct contact and flawless adsorption of the work materials, providing unmatched reliability and precision in performance. Piece: A fundamental component tailored to enhance your operational processes with precision and dependability.
2. Control System (including sound and light indicating system): Master the art of control with our advanced system, featuring sound and light indicators for precise magnetization and demagnetization. Effortlessly manage signal collection and processing for a seamless workflow.
Efficiently control magnetization/demagnetization while seamlessly managing the collection and processing of all signals, ensuring optimal performance and reliability.
2.1. Controller for long distance (optional): Expand your operational capabilities with our optional long-distance controller, designed for remote operation and enhanced flexibility, ensuring seamless integration in diverse environments.
The mini control cabinet, designed for convenient installation in a Crane Cab or other compact locations, offers precision control in a versatile, space-saving package.
2.2. Remote Controller (optional): Enhance your operational flexibility with our optional remote controller, designed for ease of use and optimized for efficiency in diverse settings.
The mini control cabinet is engineered for use in Crane Cabs or other compact areas, ensuring efficient space utilization and seamless operation.
3. Cable retracting device: This innovative device smoothly pulls in and out the cable, ensuring efficient release and collection, optimizing operation, and extending cable lifespan.
Pull in & out reel: Expertly designed to release and collect cable with ease, ensuring efficient operation and minimal downtime.
4. Beam: Experience the ultimate in structural integrity and performance with our precision-engineered beam, designed to support and enhance the functionality of your magnetic systems.
Collection and pass permanent magnet tension: Expertly engineered to manage and distribute tension, ensuring stability and reliability in your operations.
