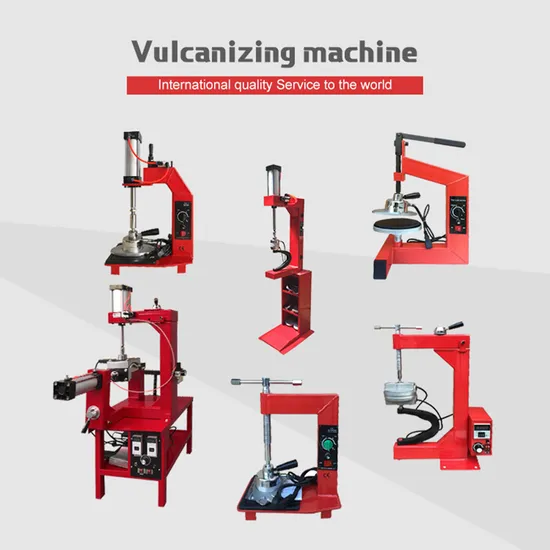

High Quality Tire Repair Machine Industrial Vulcanizer Vulcanizing Machine for Sale

Product Description

Product Description
High Quality Tire Repair Machine Industrial Vulcanizer Vulcanizing Machine For Sale
Model: Vulcanizing Machine Series
1. This series works for all kinds of inner tubes, passenger car tires and vacuum tires
2. Signal light circuit protection
3. It has 15 minutes timer. simple operation and easy control
4. AJD-1Q working method is air operated with hand valve
5. AJD-1 working method is lead screw
6. AJD-1Q working pressure is 0.6Mpa
7. Input Voltage: 110V or 220V
8. Input Power: 500W
9. Temperature Rage: 145-165ºC
10. Max.repair area: 120*80mm²

Model	G.W/N.W	Meas	Pcs/Ctn	G.W/N.W Per Ctn	Meas Per Ctn
AJD-1Q	9/8.3kg	330*195*510mm	3Pcs	28/27kg	600*345*535mm
AJD-1	8.25/7.8kg	325*190*390mm	4Pcs	34.35/33kg	670*405*410mm

1. This series works for all kinds of inner tubes, passenger car tires and vacuum tires
2. HD-1 has signal Light Circuit Protection
3. HD-1 has 15 minutes timer. simple operation and easy control
4. Input Voltage: 110V or 220V
5. Input Power: 500W
6. Temperature Rage: 145-165ºC
7. Max.repair area: 120*80mm²

Model	G.W/N.W	Meas	Pcs/Ctn	G.W/N.W Per Ctn	Meas Per Ctn
HD-1	7.75/7.35kg	310*190*400mm	4Pcs	32/31kg	640*405*425mm
AJD-D	7.6/6.9kg	340*190*340mm	4Pcs	30/28kg	710*400*360mm

1. Temperature is adjustable according to different needs
2. Lead screw style which is convenient to use
3. This series works for all kinds of inner tubes, passenger car tires and
vacuum tires
4. AJD-5 has signal Light circuit protection
5. AJD-5 has 15 minutes timer. simple operation and easy control
6. Input Voltage: 110V or 220V
7. Input Power: 500W
8. Temperature Rage: 145-175ºC
9. Max. repair area: 120*80mm²

Model	G.W/N.W	Meas	Pcs/Ctn	G.W/N.W Per Ctn	Meas Per Ctn
AJD-5	7.7/7kg	340*190*340mm	4Pcs	32/30.88kg	710*405*360mm
AJD-6	7.5/6.8kg	340*190*340mm	4Pcs	31.5/30kg	710*405*360mm

1. Lead screw style which is convenient to use
2. Signal Light circuit protection
3. Option of a 15 minutes timer and normal
4. This series works for all kinds of inner tubes, passenger car tires and vacuum tires
5. AJD-7C thermostatic tube plate vulcanizer 145-165ºC
6. AJD-7 ideal Temperature Rage 145-175ºC. Temperature adjustable according to different needs
7. Input Voltage: 110V or 220V
8. Input Power: 500W
9. Max.repair area: 120*80mm²

Model	G.W/N.W	Meas	Pcs/Ctn	G.W/N.W Per Ctn	Meas Per Ctn
AJD-7C	7.8/7.3kg	355*195*510mm	4Pcs	33/31.5kg	730*415*535mm
AJD-7	8.25/7.65kg	375*195*510mm	3Pcs	25.8/24.8kg	620*390*535mm

1. This series is equipped with seven fine quality plates which fits the repair needs of tire crown, tire shoulder and tire side
2. It also comes with 120 minutes timer, signal light and circuit protection. Upper and bottom iron can work either separately or together
3. Input Voltage: 110V or 220V
4. Input Power: 500W*2
5. Temperature Rage: 145-165ºC
6. Max.repair area: 100*80mm²

Model	G.W/N.W	Meas	Pcs/Ctn	G.W/N.W Per Ctn	Meas Per Ctn
AJD-3	11.5/11kg	650*335*100mm	3Pcs	35.5/34.5kg	670*355*325mm
SK-120	10.7/10.2kg	650*335*100mm	3Pcs	33/32kg	670*355*325mm

1. Able to repair tire crown, tire shoulder and tire sidewall
2. It also comes with 120 minutes timer
3. Signal light and circuit protection
4. Upper and bottom iron can work either separately or together
5. Upper iron temperature is constnat, lower iron temperature is
adjustable
6. Input Voltage: 220V
7. Input Power: 500W*2
8. Temperature Rage: 145-175ºC
9. Max.repair area: 100*70mm²

Model	Pcs	G.W/N.W	Meas
AJD-Y	1	28.5/27.5kg	470*190*735mm
AJD-4Y	1	39.8/37.8kg	510*365*1350mm

1. Rota-table within 90 degree
2. Signal light, circuit protection,120 minutes timer
3. Upper and down irons can work either separate or together
4. Seven plates fits repair needs of tire crown, tire shoulder, tire sidewall
5. AJD-Z applicable for inner tubes, passenger tire, truck tire and vacuum tire
6. AJD-ZD applicable for inner tubes, medium to large tire and vacuum tire
7. AJD-Z: 2 heating plate with diameter of 80mm, 7 plates for
passenger tires
8. AJD-ZD: 2 heating plate with diameter of 98mm, 7 plates for truck tires

Model	Input Voltage	Input Power	Temperature Rage	Max.Repair Area	G.W/N.W	Meas
AJD-Z	110V/220V	500W*2	145-165ºC	100*80mm²	42/39kg	925*485*210mm
AJD-ZD	110V/220V	500W*2	145-165ºC	140*120mm²	46.2/43.7kg	925*485*210mm

1. Thermostatic vulcanizer, double side heat, upper and down irons can work either separate or together
2. Lower arm is rota-table of 360°
3. Signal light, circuit protection,120 minutes timer
4. Seven plates fits repair needs of tire crown, tire shoulder,and tire sidewall
5. Applicable for inner tubes, passenger tire, truck tire and vacuum tire
6. Applicable for various passenger tire, small truck tire, tubeless tire
7. AJD-4 is hand operated
8. AJD-4N is air operated, equipped with F.R.L connection

Model	Input Voltage	Input Power	Temperature Rage	Max.Repair Area	G.W/N.W	Meas
AJD-4	110V/220V	500W*2	145-165ºC	100*80mm²	45/42kg	510*365*1350mm
AJD-4N	110V/220V	500W*2	145-165ºC	100*80mm²	64/44kg	530*405*1775mm

1. Accurate temperature indictor
2. Signal light, circuit protection, 120 minutes timer
3. Upper and down irons can work either separate or together
4. Sand bag assist the repairing process of tire crown, tire shoulder, tire sidewall
5. Applicable for inner tubes, passenger tire, truck tire and vacuum tire
6. AJD-2 is the pointer table shows the temperature
7. AJD-A is the digital display shows the temperature

Model	Input Voltage	Input Power	Temperature Rage	Max.Repair Area	G.W/N.W	Meas
AJD-2	220V	450W*2	145-175ºC	80*70mm²	66/64kg	740*320*1225mm
AJD-A	220V	450W*2	145-175ºC	80*70mm²	66/64kg	740*320*1225mm

1. Accurate temperature indictor
2. Signal light, circuit protection, 120 minutes timer
3. Upper and down irons can work either separate or together
4. Sand bag assist the repairing process of tire crown, tire shoulder, tire sidewall
5. Applicable for inner tubes, passenger tire, truck tire and vacuum tire

Model	Input Voltage	Input Power	Temperature Rage	Max.Repair Area	G.W/N.W	Meas
AJD-Q	220V	450W*2	145-175ºC	80*70mm²	88/63kg	770*370*1640mm

1. This air operated machine comes with 5 bottom plates, 7 plates, and one side plates (two heating plates)
2. When repairing please choose the proper plates
3. Depending on different tire size, this machine is able to use for passenger tire, SUV, and small truck tire
4. In order to achieve accurate result, the user needs to have basic knowledge of repairing tire. It also needs practice to achieve ideal results
5. Upper and lower plate temperature is about 160 degree

Model	Input Voltage	Input Power	Temperature Rage	Working Pressure	G.W/N.W	Meas
AJD-15Q	220V	≈2000W	145-175ºC	0.6-0.7Mpa	138/103kg	760*550*1710mm

1. AJD-8 working method is manual, have 3 plates and 1 bottom heating plate, the pointer table shows the temperature.
2. AJD-8Q working method is air-operated, have 3 plates and 1 bottom heating plate, equipped with F.R.L connrction, the digital display shows the temperature.
3. AJD-9 working method is manual, have 7 plates and 1 bottom heating plate, the pointer table shows the temperature
4.AJD-9Q working method is air-operated, have 7 plates and 1 bottom heating plate, equipped with F.R.L connrction, the digital display shows the temperature.

Model	Input Voltage	Input Power	Temperature Rage	Working Pressure	G.W/N.W	Meas
AJD-8	220V	≈2000W	145-175ºC	/	74.5/71kg	730*520*1250mm
AJD-8Q	220V	≈2000W	145-175ºC	0.6-0.8Mpa	109/74.5kg	775*600*1810mm
AJD-9	220V	≈2000W	145-175ºC	/	85.5/82kg	730*520*1250mm
AJD-9Q	220V	≈2000W	145-175ºC	0.6-0.8Mpa	120/85.5kg	775*600*1810mm

This machine is specially designed for trucks tires range from 8.25-20 to 12.00-20 and 9R-12R. It is featured with auto temperature control system, signal light, short circuit protection, and 180 minutes timer. It is equipped with seven plates and a sand bag. The portable tire spreader provides extra support for the repairing process. The trolley is equipped with universal wheels, which makes the whole process conveniently. The arm of machine is rota-table, which can be used for tire tread, tire sidewall, and tire crown. The trolley is equipped with universal wheels, which is convenient for the users to carry the tires around

Model	Input Voltage	Input Power	Temperature Rage	Working Pressure	Max.Repair Area	G.W/N.W	Meas
AJD-12Q	110/220V	500W*2	145-165ºC	0.6-0.8Mpa	140*120mm²	130/102kg	815*850*1380mm

1. Featured with timer, auto-temperature control, short circuit protection
2. Upper and down iron can work separately and together
3. Equipped with seven plates and sand bag
4. Able to repair tire tread, tire sidewall, tire crown
5. Applicable for inner tubes, medium to large tire and vacuum tire

Model	Input Voltage	Input Power	Temperature Rage	Max.Repair Area	G.W/N.W	Meas
AJD-10	110/220V	500W*2	145-165ºC	140*120mm²	21.5/20kg	685*435*130mm

1. Featured with timer, auto-temperature control, short circuit protection
2. Upper and down iron can work separately and together
3. Equipped with seven plates and sand bag
4. Able to repair tire tread, tire sidewall, tire crown
5. Applicable for inner tubes, medium to large tire and vacuum tire

Model	Input Voltage	Input Power	Temperature Rage	Max.Repair Area	G.W/N.W	Meas
AJD-11	110/220V	500W*2	145-165ºC	140*120mm²	24.5/22.5kg	680*350*115mm

1. Designed industrial trucks 8.25-20 to 12.00-20 and 9R-12R
2. Featured with timer, auto-temperature control, short circuit protection
3. Upper and down iron can work separately and together
4. Equipped with seven plates and sand bag
5. Able to repair tire tread, tire sidewall, tire crown
6. Applicable for inner tubes, medium to large tire and vacuum tire

Model	Input Voltage	Input Power	Temperature Rage	Max.Repair Area	G.W/N.W	Meas
AJD-540	110/220V	500W*2	145-165ºC	140*120mm²	24/21.9kg	830*225*110mm

Performance feature
1. This machine adopts heating pipes for heating
2. Able to repair wide range of tires in easy operation
3. It can heat three surfaces simultaneously or single surface upon demand
4. It has 360 timer with auto or manual switch
5. Accurate temperature indictor with signal light
Range of application
The machine can repair all kinds of tires 6.50-12.00 with proper plates and air bags. Additional plates need to be purchased to repair Vacuum tires and Nylon tires 9.00-12.00. To repair tires 6.5-8.25 additional plates also need to be purchased

Model	Input Voltage	Input Power	Temperature Rage	Repair Length	G.W/N.W	Meas
PG-C	220/380V	5.3KW	145-175ºC	400mm	245/240kg	970*830*800mm
