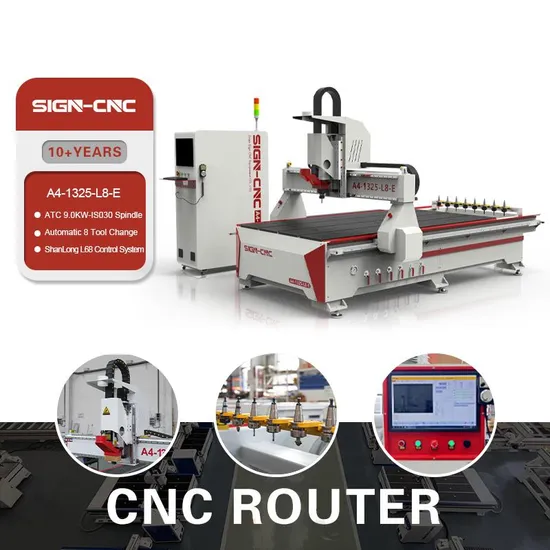

Sign A4-1325-L8-E Atc CNC Router Cutting Machine with Automatic 8 Tools Engraving
Basic Info.
Model NO.
A4-1325-L8-E
Condition
New
Certification
CE, FDA
CNC or Not
CNC
Voltage
380V
Function
Cutting and Engraving
Cooling System
Air Cooling
Warranty of Core Components
1 Year
Optional Parts
Linear Type 8 Tools Changer Magazine
Reducer
Japanese Shimpo Planetary Reducer
Software
Artcam with Post Processor
Inverter
Folinn High Frequency 11kw Inverter
Control System
Shanlong L68
Spindle
Hqd 9.0kw Atc Air-Cooled Spindle
Drive Motors
750W AC Servo Motor and Driver
Spindle Speed
0-24000rpm
Transport Package
Wooden Box Packing
Specification
265.00cm * 145.00cm * 200.00cm
Trademark
SIGN-CNC
Origin
China
HS Code
84659900
Production Capacity
200sets/Month
Packaging & Delivery
Package Size
265.00cm * 145.00cm * 200.00cm
Package Gross Weight
1200.000kg
Product Description
Product DescriptionSIGN A4-1325-L8-E Atc CNC Router Cutting Machine with Automatic 8 Tools Engraving
Application
Advertising industry: advertising signs, logo making, acrylic cutting, plastic molding, a variety of materials advertising the production of decorative products.Woodworking: Furniture production, three-dimensional wave board processing, cabinet doors, solid wood doors, wooden craft, paint doors, screens, craft fan window processing, shoe polisher, game cabinets and panels, mahjong table, computer desk and furniture products, auxiliary processing .Mold Industry: engraving copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wood and other non-metallic mold.Other Industry: a variety of large-scale relief sculpture, shadow carving, widely used in the craft industry. PRODUCT SPECIFICATIONS
| Model | A4-1325-L8-E |
| X, Y Working size | 1300*2500mm |
| Z feed Height | 300mm |
| Table Surface | Vacuum table with T-slot and 5.5KW vacuum pump |
| X, Y Structure | Helical rack and high precision 25mm Square Guide Rail |
| Z Structure | High precision 25mm square guide rail and ball screw |
| Max. Power Consumption | MS300 series big power 11KW |
| Max. Rapid Travel Rate | 45000mm/min |
| Max. Working Speed | 30000mm/min |
| Spindle Power | HQD 9.0KW ATC air-cooled ISO30-ER32 spindle |
| Spindle Speed | 0-24000RPM |
| Drive Motors | 750W AC servo motor and driver (Z-axis motor with brake) |
| Working Voltage | AC380V 50/60Hz |
| Control System | Shanlong L68 |
| X,Y,Z repositioning Accuracy | ±0.01mm |
| X,Y Resolution | <0.01mm |
| Software | Artcam with post processor |
| Running Temperature | 0 degree - 45 degree |
| Relative Humidity | 30% - 75% |
| Optional Parts | Linear type 8-12 tools changer magazine |
| Warranty | Two years |
Packaging & Shipping
FAQ 1. Q: How do you send your machine?
A: We can send our machines by sea, land and rail way, or we can send the machine to your doors.
2. Q: This is my first time to use this machine, is it easy to operate?
A: Machine operate is easy and we will send to you manual for system manual in English. And if you have question for use it we also can send to you video that show how to use machine.
