Three-Row Multiple Drilling Machine for Furniture
| US$2,000.00-15,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MZB63A
Controlling Mode
CNC
Number of Shaft
5
Hole Diameter
<50mm
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Maximum Diamenter of Holes
35mm
Depth of Drilled Holes
0-60mm
The Number of Spindles
63
Center Distance Between Spindles
32mm
Rotation of Spindle
2840r/Min
Total Motor Power
4.5kw
Suitable Voltage
~380V
Air Pressure
0.5-0.8MPa
Overall Size
2600*2600*1600mm
Packing Size
2700*1350*1650mm
Transport Package
Wooden Case
Specification
2.4CBM
Trademark
QDZD
Origin
Qingdao
HS Code
84659500
Production Capacity
500sets/Year
Product Description
MZB63A Three-Row Multiple Drilling Machine for woodworkingTechnical Specification:
| Max. diameter of holes | 35 mm |
| Depth of drilled holes | 0-60 mm |
| The number of spindles | 63 |
| Center distance between spindles | 32 mm |
| Rotation of spindle | 2840 r/min |
| Total motor size | 4.5 kw |
| Suitable voltage | 380 v |
| Air pressure | 0.5-0.8 Mpa |
| Gas consumption for drilling ten panels per minutes approximately | 20L/min Approximately |
| Max. distance of the two longitudinal heads | 1850 mm |
| Height of working platform off the ground | 800 mm |
| Over size | 2600x2600x1600 mm |
| Packing size | 2700x1350x1650 mm |
| Weight | 1260 kg |

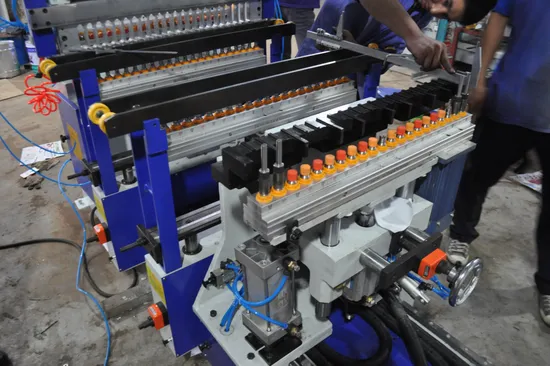

Product Details:
Certificate:
Our Services: (1) Pre-sale services:
* Provide the free consultation of the equipment .
* Provide the standard device and the flow chart.
* According to the clients' special requirement, offering the reasonable plan and free design helping to
select the equipment.
* Welcome to visit our factory.
(2)Services during the sales:
* Inspect the machine before leaving the factory.
* Oversea install and debug the equipment.
* Train the first-line operator.
(3)After sale services:
* 24 hours online service.
* Provide the VIDEO with Install and debug the equipment.
* Provide technical exchanging
Our company:
Qingdao Zhongding Machinery Co., Ltd is professional at manufacturing woodworking machines. Our main products includes: sliding table saw(panel saw), edge banding machine, hydraulic cold press, hot press, carpenter drilling machine ( boring machine), etc. We are factory, we provide the machine with reasonable price and high quality, and welcome to visit our factory and our products.
