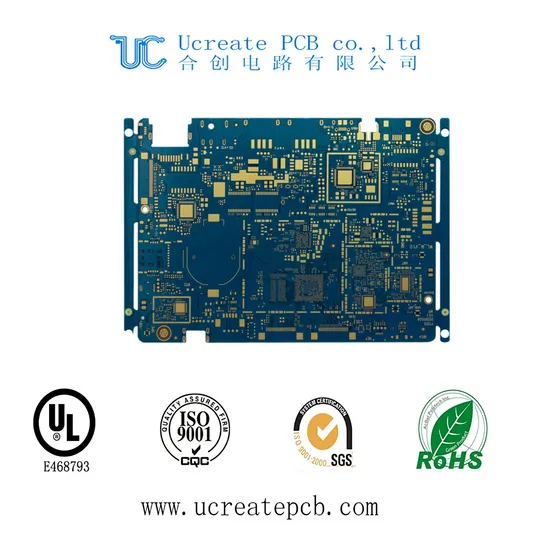

1.6mm PCB Mobile Phone PCB Board Micro-Tactile Charger Printed Circuit Board

Product Description

Welcome to Ucreate

Ucreate is specialized in the production of a variety of single, double, high multi layers, HDI, the metallic substrate and FPC PCB. With laser drilling machine, CNC drilling machine, automatic machine, automatic exposure machine, large-scale lamination machine, Automatic flow production line, auto panel plating line, auto P.T.H Line, and other precision production equipments and AOI testing machine, flying probe tester machine and other advanced detection equipments.
We can also make quick pcb. As customers plates copied from the PCB, PCB design, prototype production, production, processing, and other SMT one-stop service.
Single-double sides pcb delivery time: 12-24 hours 4 layer- 8 layer pcb delivery time: 48-96 hours

Rigid PCB Capability
Item		Standard	Advance
Layers		1-20 layers	22-32 layers
HDI		1+N+1&2+N+2&3+N+3	Elic
Finger(Au)		1-30U"	30-50U"
Max Panel Size		520*800mm	800*1200mm
Min Panel Size		5*5mm	5*5mm
Board Thickness		0.1mm-4.0mm	4.0mm-7.0mm
Min Half Hole/Slot		0.5mm	0.3mm
Min. Line Width/Space		3mil/3mil	2mil/2mil
Min. Hole Size		0.1mm	0.075mm
Inner Copper Thickness		0.5-4oz	0.5-5oz
Outer Copper Thickness		0.5-6oz	0.5-9oz
Tolerance	Line Width	±10%	±5%
	PTH Hole Size	±0.075mm	±0.05mm
	NPTH Hole Size	± 0.05mm	±0.025mm
	Hole Precision	±0.3 mil	±0.2 mil
	Outline	±0.1mm	± 0.075mm
	Board Thickness	±10%	±5%
Impedance Control		± 10%	± 8%
Bow and Twist		0.75%	0.50%
Board Material		FR-4, CEM-3, Rogers, High TG
Surface Finish		HAL(with Pb free), Plated Ni/Au, Imm Ni/Au, Imm Tin, OSP
Solder Mask		White, Black, Blue, Green, Grey, Red, Yellow, Transparent
Legend Color		White, Black, Yellow ect.
Certification		UL, IATF16949, ISO, RoHs

PCB Assembly Capability
Item			Lot Size
			Normal	Special
PCB(used for SMT)spec	(L*W)	Min	L≥3mm	L<2mm
			W≥3mm
		Max	L≤1200mm	L > 1200mm
			W≤500mm	W> 500mm
	(T)	Min thickness	0.2mm	T<0.1mm
		Max thickness	4.5mm	T>4.5mm
SMT components spec	outline dimension	Min size	201	1005
			(0.6mm*0.3mm)	(0.3mm*0.2mm)
		Max size	200mm*125mm	200mm*125mm<SMD
		component thickness	T≤6.5mm	6.5mm<T≤15mm
	QFP,SOP,SOJ(multi pins)	Min pin space	0.4mm	0.3mm≤Pitch<0.4mm
	CSP,BGA	Min ball space	0.5mm	0.3mm≤Pitch<0.5mm
DIP PCB SPEC	(L*W)	Min Size	L≥50mm	L<50mm
			W≥30mm
		Max Size	L≤1200mm	L≥1200mm
			W≤500mm	W≥500mm
	(T)	Minimum Thickness	0.8mm	T<0.8mm
		Maximum Thickness	2mm	T>2mm
BOX BULID	FIRMWARE	Provide programming firmware files,Firmware + software installation instructions
	Function test	Level of testing required along with test instructions
	Plastic & Metal Casings	Metal Casting,Sheet Metal work,Metal Fabrication,Metal Fabrication,Metal and plastic extrusion
	BOX BUILD	3D CAD model of enclosure + specifications (include drawings, size, weight, colour, material, finish, IP rating, etc)
PCBA FILES	PCB FILE	PCB Altium/Gerber/Eagle files (Including specs such as thickness, copper thickness, solder mask colour, finish, etc)
