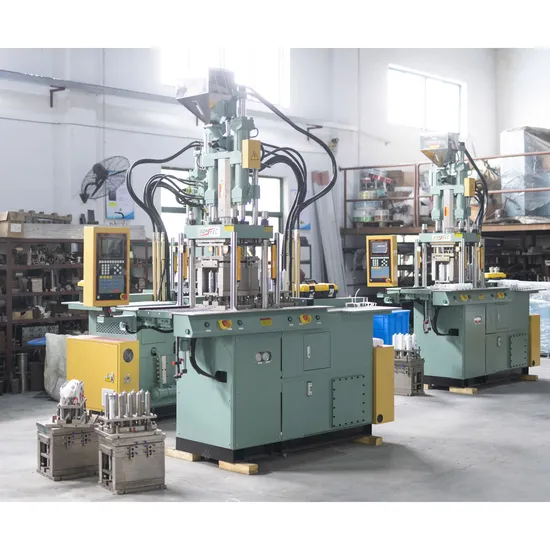

Semi Plastic Tube Head Injection Molding Machine

Product Description

Product Discription SEMI Plastic Tube Head Injection Molding Machine
Mould Size Diameter (mm): 12.7, 16, 19, 22, 25, 28, 30, 32, 35, 38, 50, 60 (Oval& round for choice) Introduction:
B.ZJ-II Plastic injection & forming machine is developed based on our second generation injection machine and advanced foreign technologies. Its double-mould alternative forming way gives it high work efficiency. When the worker operation the machine, it need two hands press the joint mould at the same time. Avoiding the hands touch the middle of the mould. Secure the safety of the people.
This machine which is safe and reliable has the advantages of pre moulding on screw, material-input in a fixed quantity at a specific position. The chief valves adopt double proportion, stress match with equality, precision in low press ion. The whole process is fluency and excellent. Control temperature and jet press ion in different sectors. Firing rate and step less adjustment. With the function of in or out which it will more convenient of adjust the mould and cleaning the pipe. Large mould-lock power, smooth mould moving, electric and pneumatic interlocking. Small taken installation space, convenient assembling and disassembling of the moulds..
Shoulder-injection mould: the diameter of tube is 12.7mm-60mm.with ellipse and round shape, we can manufacture it according to the customer's needs and also can make screw shape.
Main Parameters:

Power of The Main Machine	5.5KW
Heating Power	4.7KW
Casting Quantity	115cm3
Injection Pressure	128MPa
Mould-Lock Power	450KN
Mould-Open Power	150KN
Production Capacity	25-32pcs/min
Dimension	1500×1600×2500mm
Weight	1800kg

Our Factory
FAQ
Q1:Are you manufacturer? Can we visit your factory?
Answer: Yes, we are a manufacture, and we have an international trading center in Shanghai. And of course welcome to our factory.
Q2: How about your prices?
Answer: Our prices are competitive in our field and also negotiable according to your order quantity.
Q3: How's your products?
Answer: Parts of named-brand, best metals of machine boy are used to assure you of the best quality.
Q4: What's your advantage?
Answer: Compared with our competitors, we can offer you one-step service.The whole production line including machines, raw material, even toothpaste, cosmetic formulas for free are available.
And more? Please feel free to contact us.
Attn: Sharon
